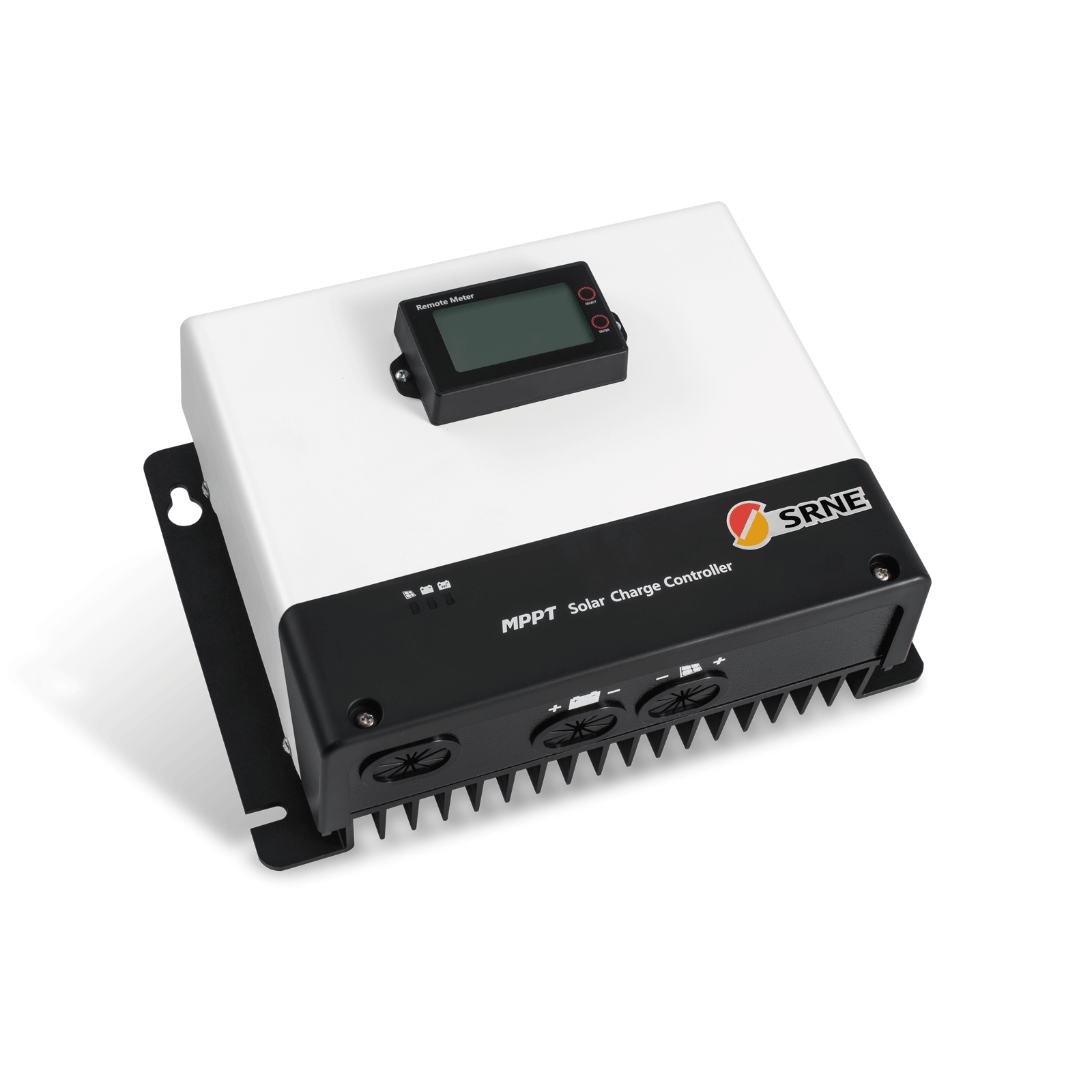

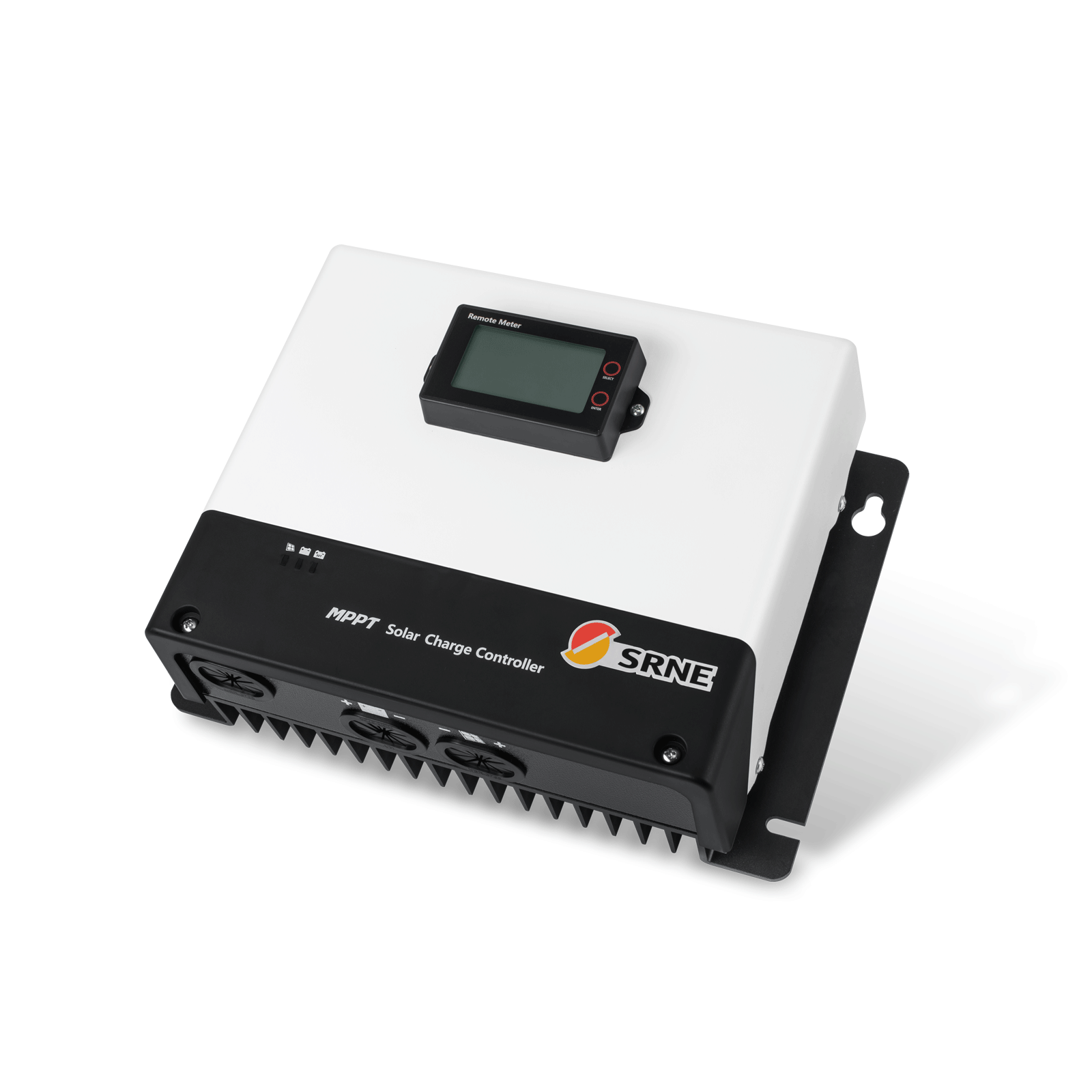

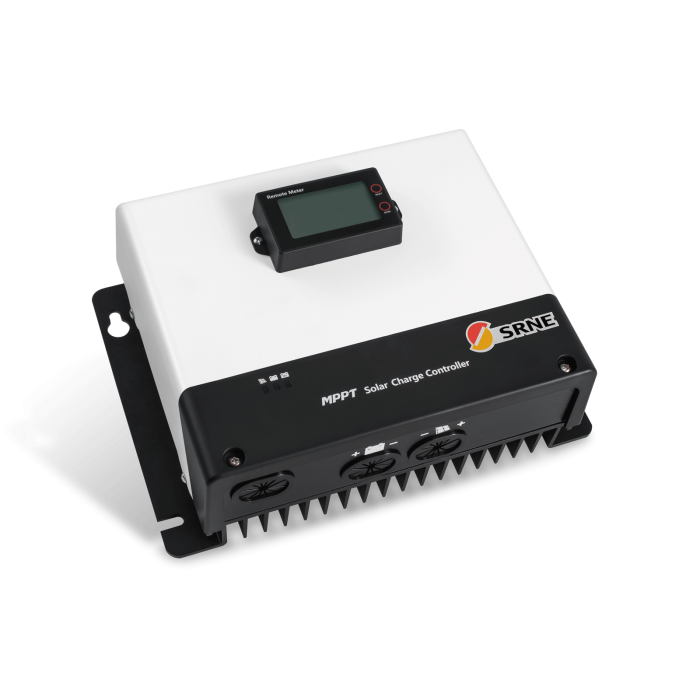

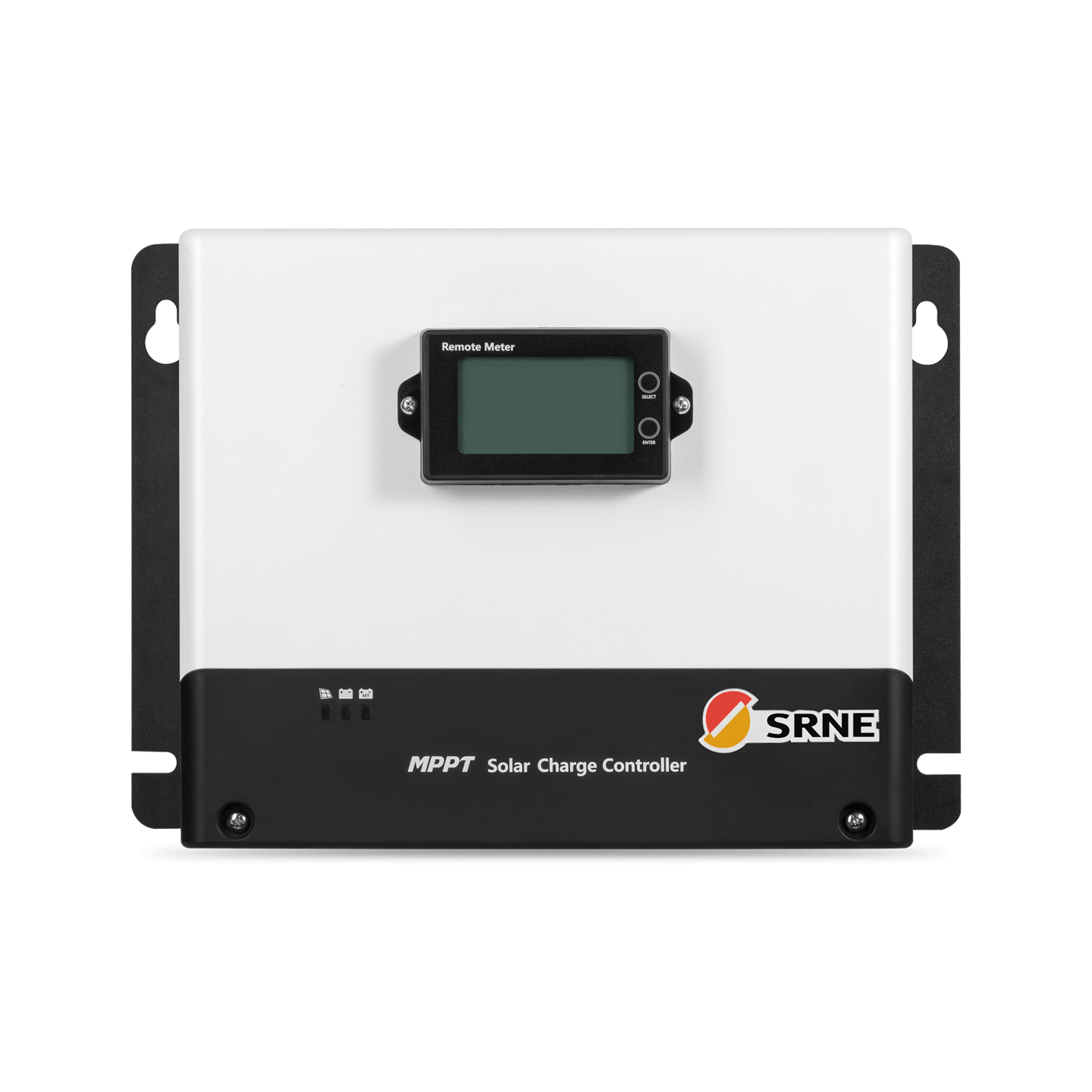

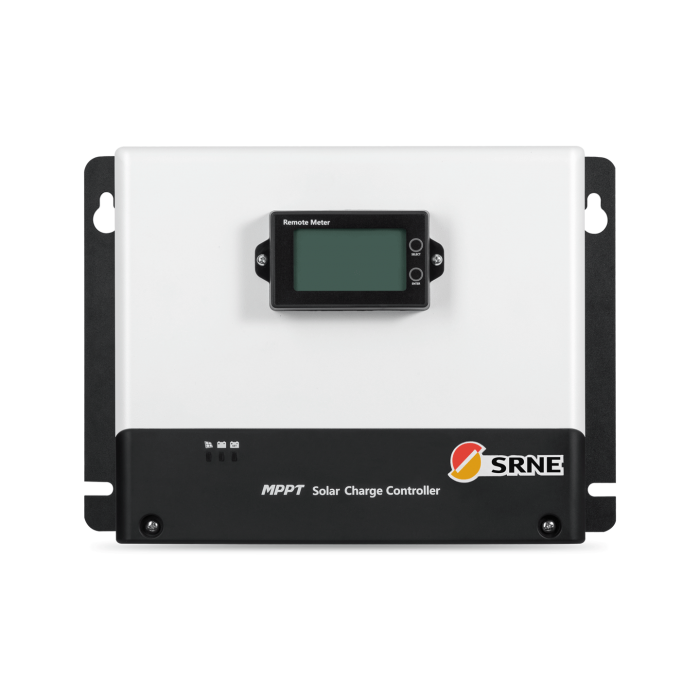

MPPT Solar Regulator Solar Charge Controller MC48V60-70A

Description

1. With the PowerCatcher MPPT technology, the controller is able to track the maximum power point of solar panels even in a complex environment. It has higher response speed and tracking efficiency compared with those controllers with traditional MPPT technology.

2. The maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems. The charging efficiency is 15% to 20% higher than the conventional PWM method.

3. MPPT Tracking efficiency is up to 99.9%.

4. Advanced digital power technology raises the circuit energy conversion efficiency to 98%.

5. The controller features a limited current charging mode. When the solar panel power exceeds a certain level and charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.

6. Support charging lithium batteries, gel batteries, sealed batteries and vented batteries, etc.

7. The controller has an overheat protection mechanism. With charging line loss compensation, the voltage of the battery terminal can be accurately controlled.

8. The controller features a limited current charging mode. When the solar panel power exceeds a certain level and charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.

9. The controller has an overheat protection mechanism. When the temperature exceeds the set value, the charging current will decline in linear proportion and discharging will be shut off so as to curb the temperature rise of the controller and keep the controller from being damaged by overheat.

10. It supports parallel operation and meets need of greater charging power.

11. With embedded bluetooth 4.0BLE module, it can achieve data interaction with APP on mobile phone.

12. Supports standard Modbus protocol and provides protocol technology support to facilitate secondary development and application by users.

13. Programmable relay output.

Name of Parameter	Parameter Value
Type	MC4860N15	MC4870N15	MC4860N25	MC4870N25
System Voltage	12V/24V/36V/48V
No-load loss	0.54W
Battery voltage	9V~64V
Maximal PV open-circuit voltage	150V		250V
Maximal voltage range at power point	Battery voltage +2~120V		Battery voltage +2~180V
Rated charging current	60A	70A	60A	70A
Power of solar panel (12V)	800W	920W	800W	920W
Power of solar panel (24V)	1600W	1840W	1600W	1840W
Power of solar panel (48V)	3200W	3680W	3200W	3680W
Charging conversion efficiency	≤98%
MPPT tracing efficiency	＞99%
Temperature compensation coefficient	-3mV/℃/2V (default, settable lead-acid); no temperature compensation for lithium battery.
Communication way	TTL/Isolated RS485; baud rate 9600, digital bit 3, stop bit 1, no check bit
Bluetooth	Built-in bluetooth 4.0BLE module, achieving mobilephone APP monitoring
Internal temperature protection	When interior temperature of controller is higher than the set value, it shall perform linear power reduction operation
External temperature sampling of battery	The temperature is used for battery temperature compensation and battery temperature protection
Programmable relay	DPST 10A/250VAC；10A/30VDC
Protection function	Battery overcharging protection, battery over discharge protection, PV anti-reverse protection, reverse charge protection at night, interior overtemperature protection of controller and over-current protection in change
Operation temperature	-35℃ ～ +65℃
Elevation	≤3000m
Protection grade	IP32
Weight	3.6kg
Product size	Conventional：266194119mm MC4：266226119mm
