SR-EOS is a new generation of household energy storage system with LFP batteries which can meet the diversified needs of global users. The SR-EOS energy storage system adopts a modular design, including power modules and ensures more than 6000 cycles with 80% DOD, so it can be easily combined into a system of any capacity required by the user.

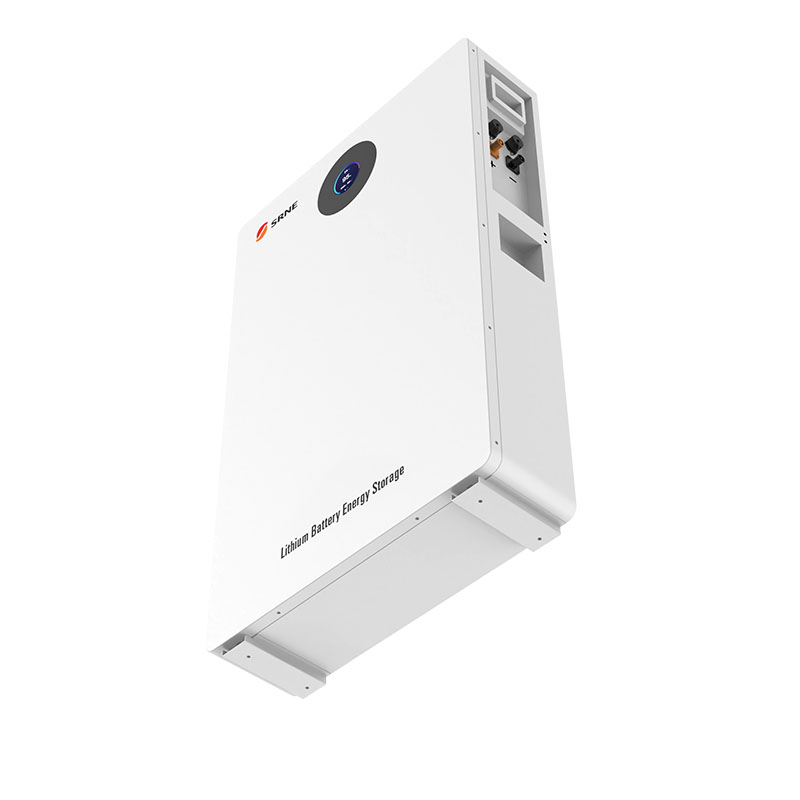

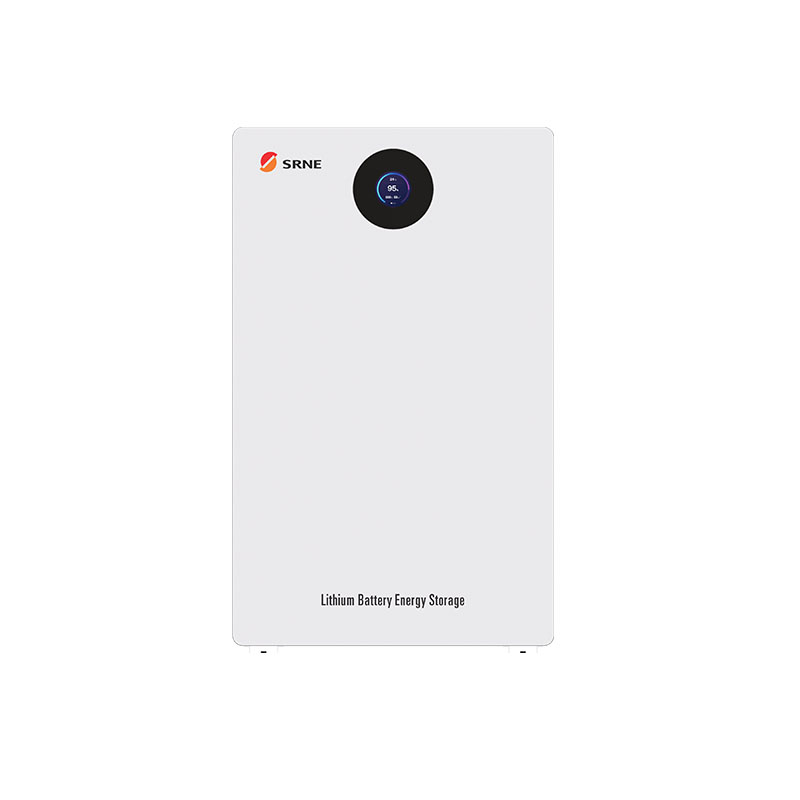

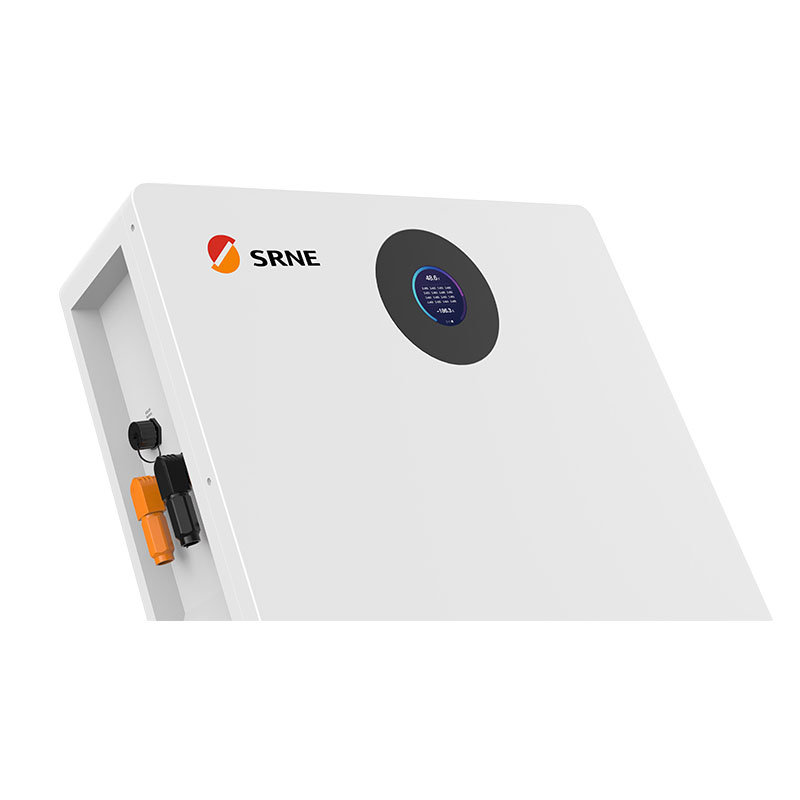

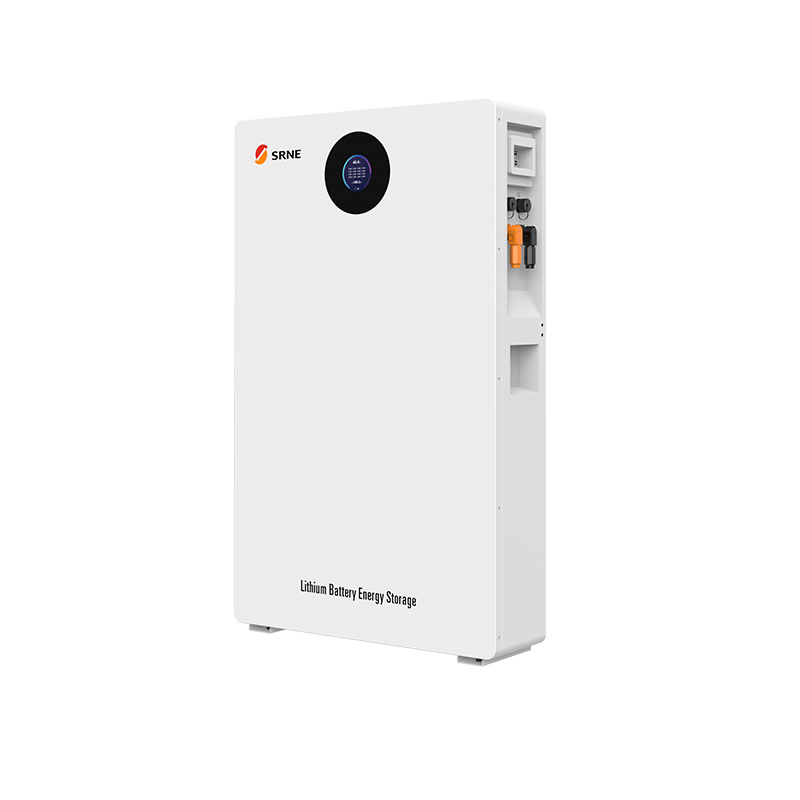

10KW Lithium Battery Energy Storage EOS Series
Description
-
Intelligent
Equipped with WIFI and Bluetooth communication, it supports Tuya cloud platform and can view battery information remotely.
LCD touchscreen for easy viewing the battery information
-
Long life and safety
High quality LiFePo4, long life span and high safety.
IP65 waterproof rating, can be used in harsh environment
-
Easy to install and use

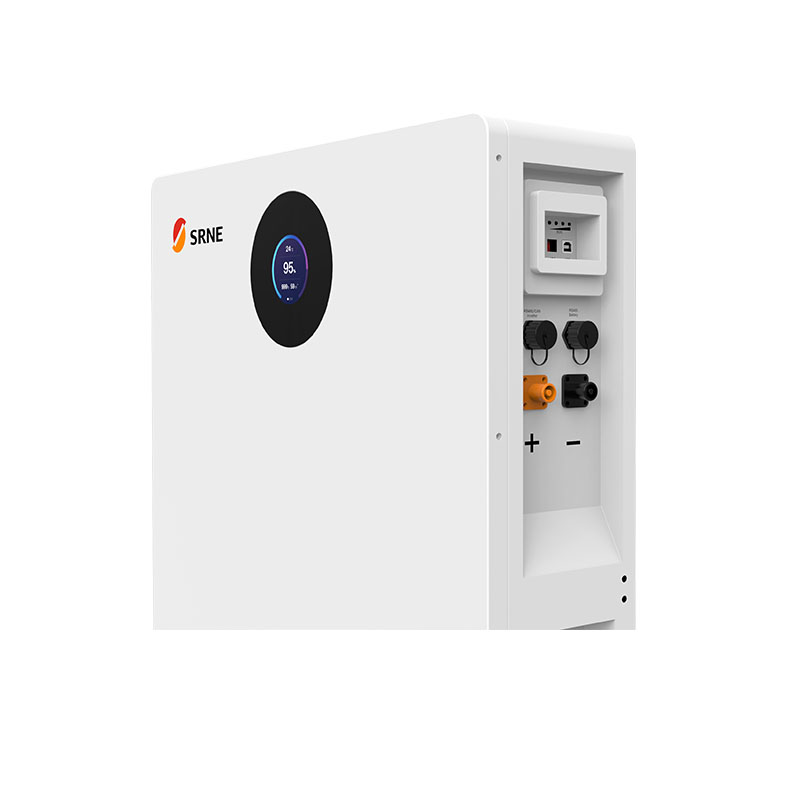

Support 2 sets of battery interface, easy for different wiring methods
Support wall-mounted and floor-mounted installation
-
Scalability
Support USB interface, can communicate directly with computer, easy for parameter change and troubleshooting
Support up to 6 batteries in parallel, and can form a maximum power system of 60kwh
-
Compatiblity
Support various brands of inverter communication protocols
| MODEL | SR-EOS10A |
| BATTERY | |
| Rated voltage | 51.2V |
| Rated capacity | 200Ah |
| Rated energy | 10.24kWh |
| Battery type | LFP |
| Life time(25℃) | 20 Years |
| Life cycles（80% DOD,0.5C,25℃） | 6000 Cycles |
| Max.charging voltage | 57.6V |
| Over discharge voltage | 44.8V |
| Constant charging current | 150A |
| Constant discharging current | 200A |
| Peak charging current | 200A（3S） |
| Peak discharging current | 220A（3S） |
| Max.Number of parallel | 6 |
| COMMUNICATION | |
| Communication interfaces | CAN/RS485/USB/WIFI/Bluetooth |
| GENERAL | |
| Storage time / temperature | 6 months @25℃;3 months @35℃;1 months @45℃; |
| Charging temperature range | 0～45℃（32~113℉） |
| Discharging temperature range | -10～45℃（14~113℉） |
| Cooling method | Natural cooling |
| Enclosure protection rating | IP65 |
| Weight | 120kg，（264.5lb） |
| Dimentions（L*W*H） | 1014*620*191mm（3*2*0.6ft） |
| CERTIFICATION | |
| Li-ion battery | UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3 |
solar charger inverter Authentications
FAQ:
Q1: What kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.
Q2: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and
manufacturing as one with PV controller,PV inverter,PV energy storage oriented.And we
have our own factory.
Q3: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can
help u fix any technicial problem or confusion.
Q4: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order:4-8 working days after confirming the sample
Q5: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the
defective rate is below 0.1%.we do try our best to provide a good customer service.
Q6:Minimum Order Quantity?
SRNE:Be equal or greater than 1 piece.
