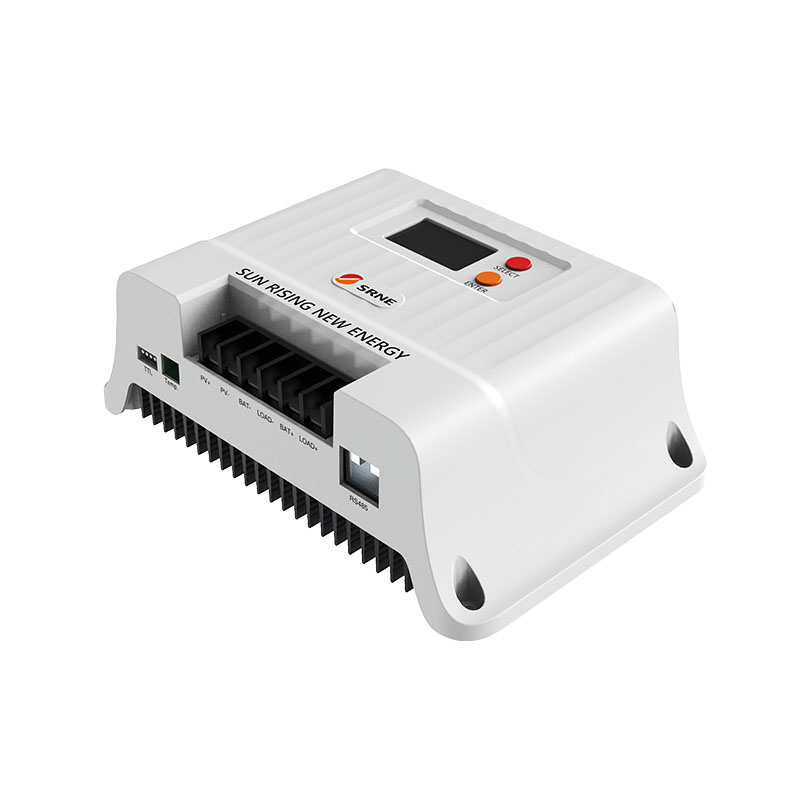

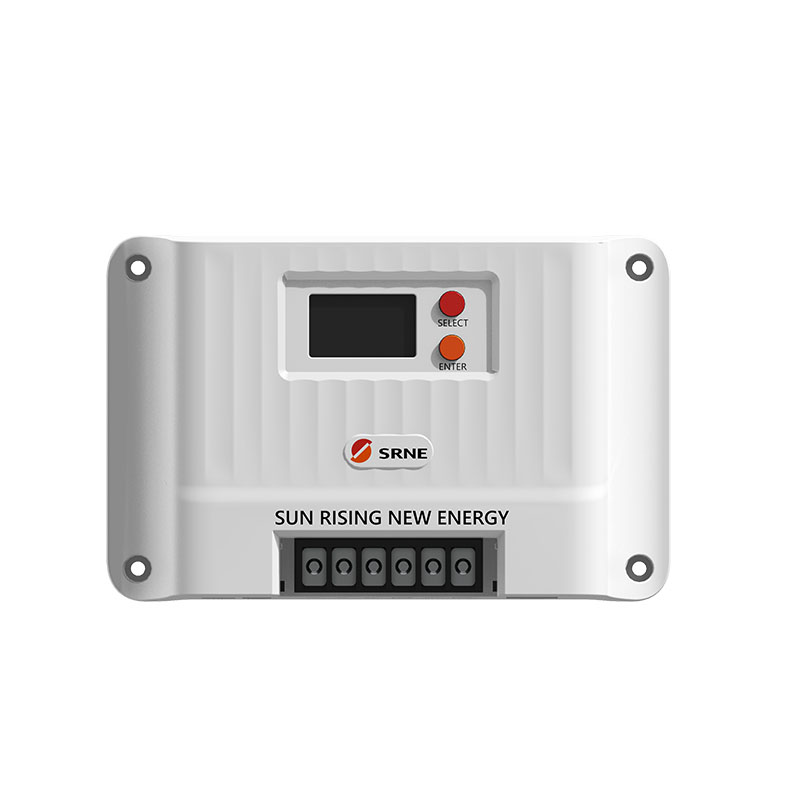

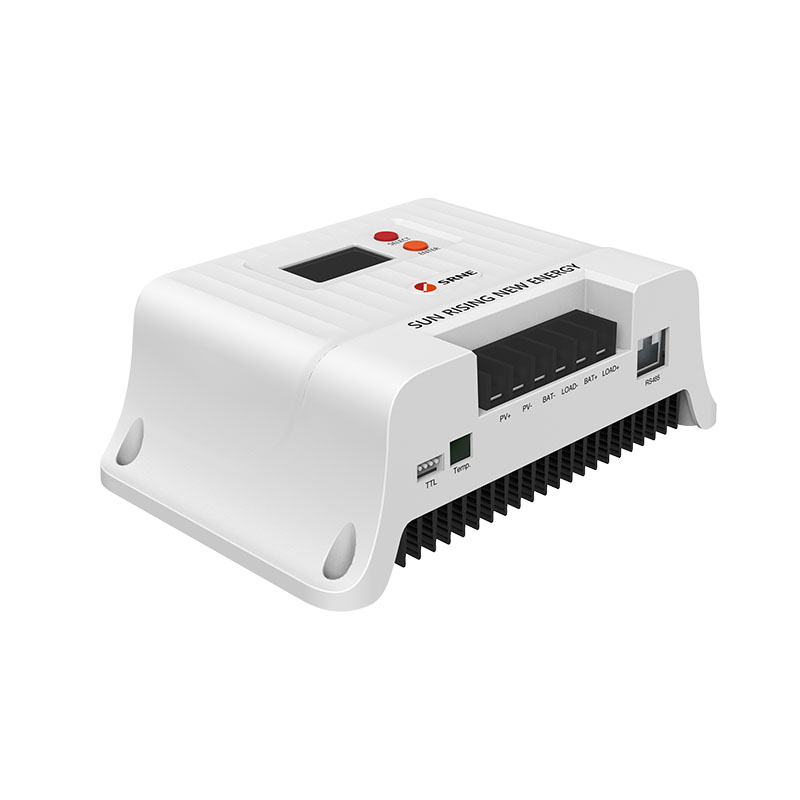

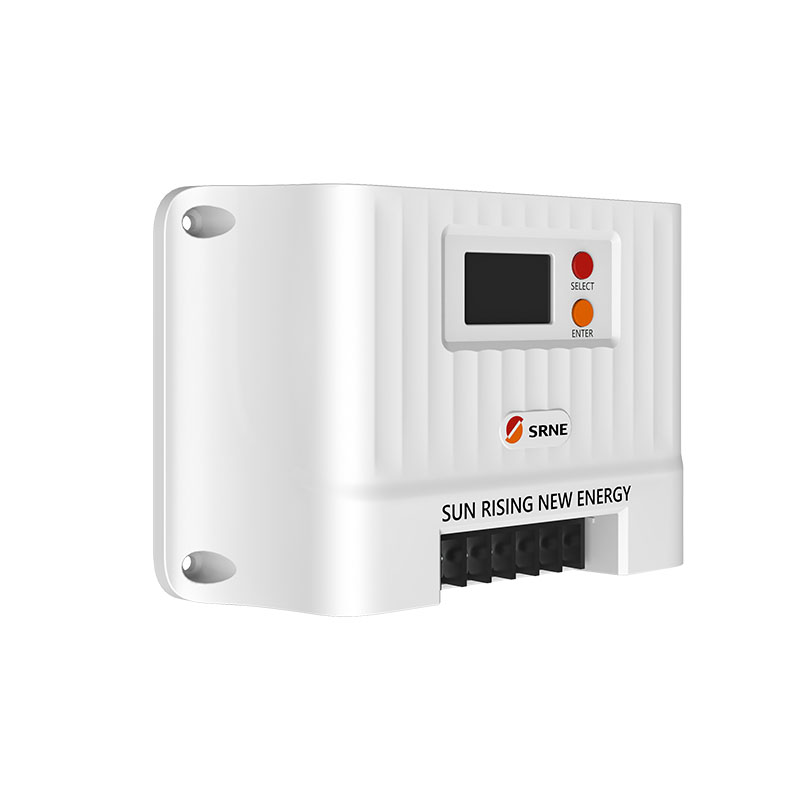

MPPT Solar Charging Controller Shiner 2410/2420
12/24V 60V
Supports Bluetooth with mobile APP
12V/24V MPPT Solar Charge Controller Supports Bluetooth Shiner 2410/2420
Description
- Adopt MPPT with tracking effificiency up to 99.9%.
- Support full-power charging and discharging at one time.
- Support multiple battery types such as sealed battery, gel battery, flflooded battery, lithium battery and user-defifined battery.
- Support lithium battery and lead-acid activated battery.
- Support the charging current setting.
- Support full-charging setting.
- Support temperature compensation.
- Support 17 load operating modes.
- Support capacitive loads and inductive loads.
- Save historical data for 300 consecutive days.
- Support RS485 communication of standard Modbus protocol with adjustable baud rate.
- Support TTL communication of standard Modbus protocol with fifixed baud rate.
- Support Bluetooth communication (optional).
- Support CAN communication (optional).
- Possess complete charging and discharging protection mechanisms for overvoltage, overcurrent, overload, over-temperature, short circuit, etc.

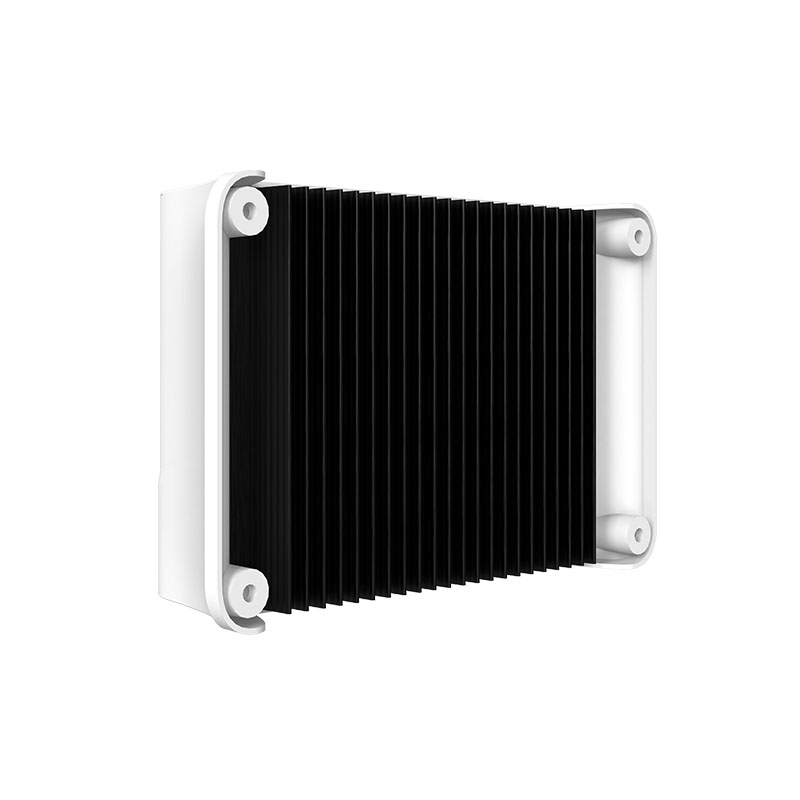

- Adopt high-quality aluminum radiator and high-temperature derating treatment to ensure reliable and effificient operation in various operating conditions.
| MODEL | Shiner2410 | Shiner2420 |
| PV INPUT | ||
| Max.Voltage of Open Circuit | 60Vdc | |
| MPPT Voltage Range | (Battery voltage+2V)～45Vdc | |
| Max.PV Input Power | 130W / 12V bat 260W / 24V bat | 260W / 12V bat 520W / 24V bat |
| BATTERY | ||
| Battery Type | Lead-acid / Li-ion / User Defined | |
| Rated Battery Voltage | 12/24 | |
| Battery Voltage Range | 9~60Vdc | |
| Rated Charging Current | 30A | |
| MPPT Charging Mode | Buck | |
| LOAD | ||
| Load Type | Resistive load 、Capacitive load、Inductive load | |
| Rated Load Voltage | Equal to battery voltage 12V/24V | |
| Rated Load Current | 10A | 20A |
| Load Working Mode | Light control,Light control + Time control, manual control(default), Debugging mode, Normal open | |
| EFFICIENCY | ||
| MPPT Tracking Efficiency | >99% | |
| Max. Charging Conversion Efficiency | 85%~98%(Correspond load power10%~100%) | |
| COMMUNICATION | ||
| TTL、RS485 (default) | TTL Baud rate 9600kps ，RS485 RJ45 port | |
| CAN (optional) | RJ45 port, RV-C protocol | |
| Bluetooth (optional) | External module with mobile app | |
| GENERAL | ||
| Weight | 350g(0.77lb) | 650g(1.43lb) |
| Dimension | 155*99*41.7mm(6.1*3.8*1.6in) | 181*118*61.7mm(7.1*4.6*2.4in) |
| Protection Degree | IP32 | |
| Operating Temperature Range | -35°C~65°C（-31℉～149℉） | |
solar charger inverter Authentications
Monitoring software：
SRNE_Shiner_24V_10-20A_MPPT solar charge controller_datasheet_1.1
SRNE_Shiner_24V_10-20A_MPPT solar charge controller-User Manual-V1.01
FAQ:
Q1: What kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.
Q2: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and
manufacturing as one with PV controller,PV inverter,PV energy storage oriented.And we
have our own factory.
Q3: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can
help u fix any technicial problem or confusion.
Q4: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order:4-8 working days after confirming the sample
Q5: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the
defective rate is below 0.1%.we do try our best to provide a good customer service.
Q6:Minimum Order Quantity?
SRNE:Be equal or greater than 1 piece.
