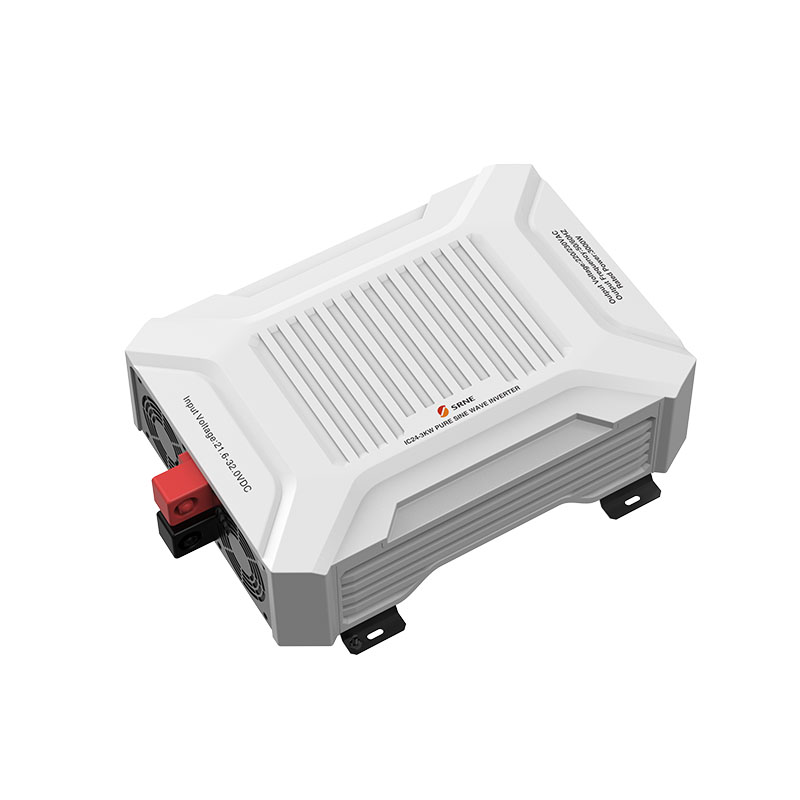

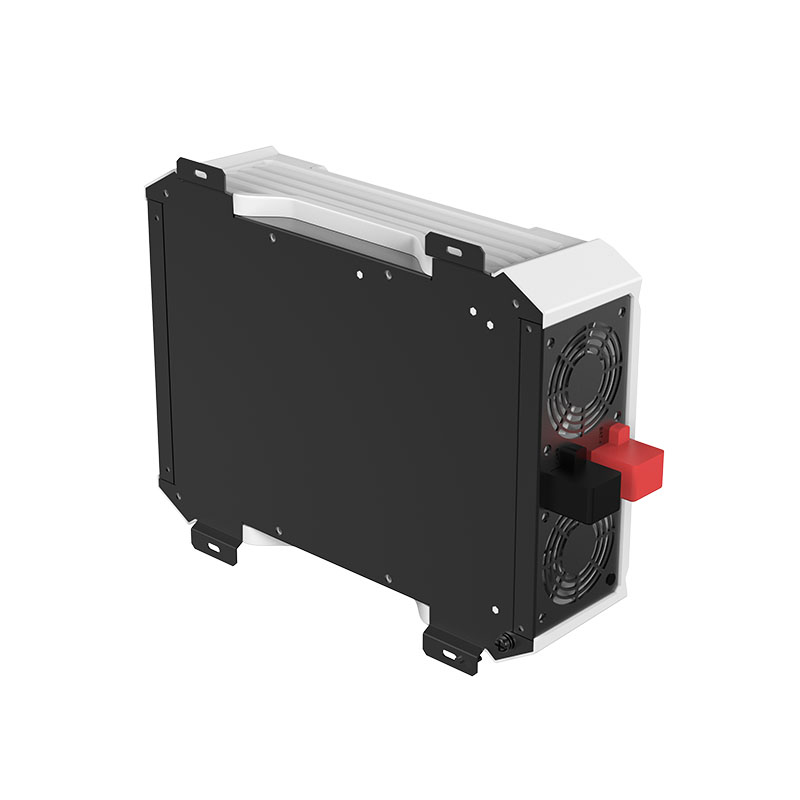

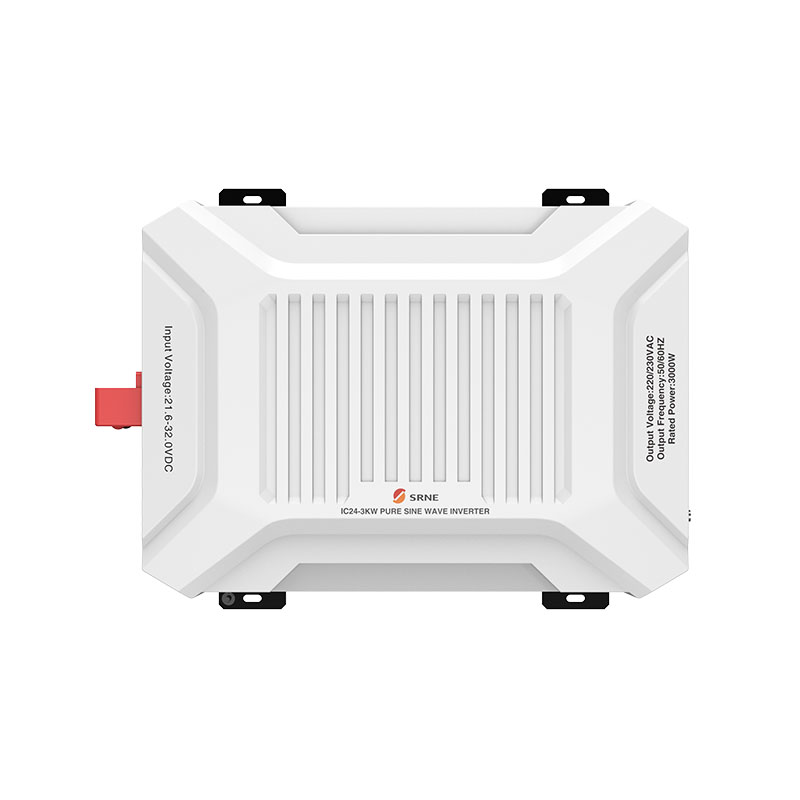

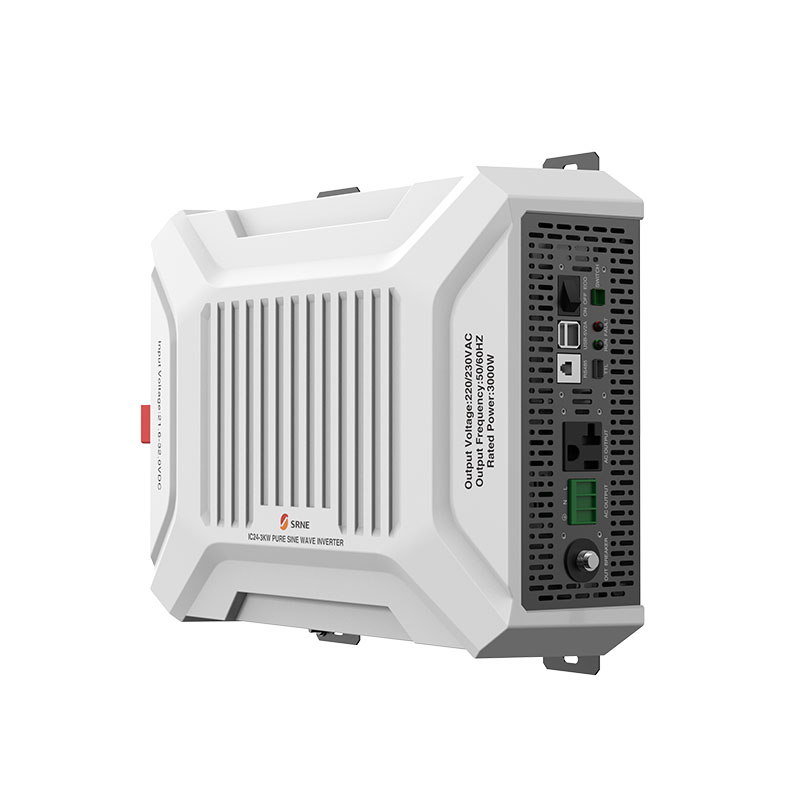

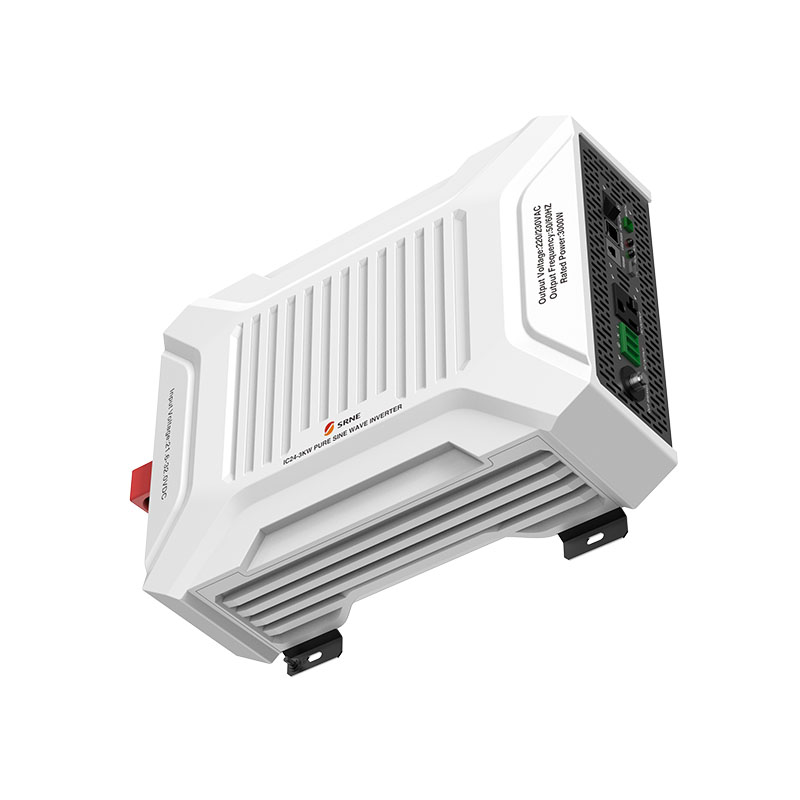

2KW-3KW High Frequency Pure Sine Wave Inverters for RV

Stable

- Advanced SPWM modulation technology with pure sine wave output and high power quality.

- High power density and long life devices are selected to support long term operation at full power.

Efficiency

- High conversion efficiency, low losses and low harmonic distortion rate.

- Multiple operating modes for maximum power savings.

Intelligent

- Bluetooth as standard, supports mobile phone app to view device operating parameters.

- Multiple expansion interfaces to meet the diverse needs of users.

Safety

- With battery over-voltage and over-discharge protection, output overload and short-circuit protection and over-temperature protection.

- （there is no reverse connection protection,please do not reverse the connection）

ITEM	IC12-2kW	IC24-3kW
Rated Battery Voltage	12Vdc	24Vdc
Battery Voltage Range	10.8～16Vdc	21.6～32Vdc
Rated Output Power	2,000W	3,000W
Peak Power	4,000W	6,000W
Rated Output Voltage	220/230(default)/240Vac(±3%)
Output Frequency	50/60Hz
Output Waveform	Pure Sine Wave
THD	THD<4%（Resistive Load）
Power Factor	0.2-1（Load Power≤Continuous Output Power）
Rated Output Efficiency	>89%	>90%
Max. Output Efficiency	>92%(30% Load)	>93.5%(30% Load)
Standby Current (OFF mode)	<0.2A	<0.12A
0 Load Ourrent (ON mode)	<1.0A	<0.95A
Dimensions	409249120mm
Weight	6.0kg
Noise	<60dB
Cooling Method	Neutral Cooling+ Intelligent Fan
IP Grade	IP20
Ambient Temperature	-20°C～60°C
Certificates	CE、ROHS、IEC62109-1/2、EN61000-6-2/4
