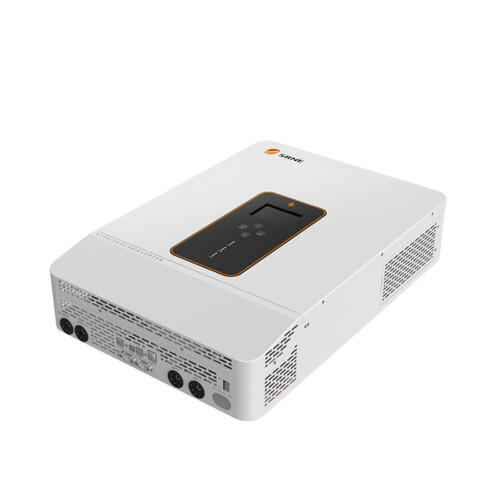

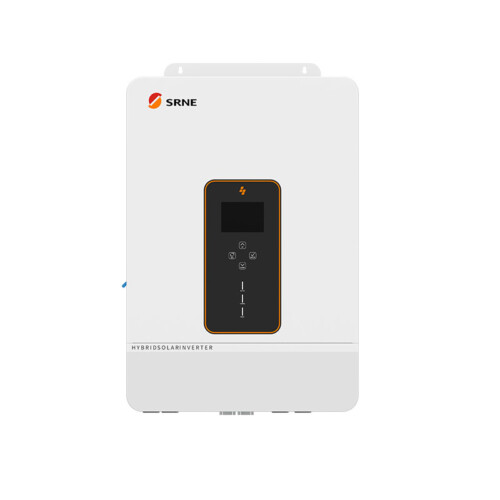

HF Series is new hybrid solar charge inverter, which integrates PV charge &Grid(Generator) charge with AC sine wave output.
Adopting DPS control algorithm, getting higher response speed, higher reliability and higher industrial standard.
| Model | HF4830S60-H | HF4850S80-H |
| AC mode | ||
| Rated input voltage | 220/230Vac | |
| Input voltage range | (170Vac~280Vac) ±2%；(90Vac-280Vac) ±2% | |
| Frequency | 50Hz/ 60Hz (auto-sensing) | |
| Frequency Range | 47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz); | |
| Overload/short circuit protection | Breaker | |
| Efficiency | >95% | |
| Conversion time (bypass and inverter) | 10ms (Typical value) | |
| AC reverse protection | yes | |
| Maximum bypass overload current | 30A | 40A |
| Inverting mode | ||
| Output voltage waveform | Pure sine wave | |
| Rated output power(VA) | 3000 | 5000 |
| Rated output power(W) | 3000 | 5000 |
| Power factor | 1 | |
| Rated output voltage (Vac) | 230Vac | |
| Output voltage error | ±5% | |
| Output frequency range (Hz) | 50Hz ± 0.3Hz/60Hz ± 0.3Hz | |
| Efficiency | >90% | |
| Overload protection | (102% (125% Load>150% ±10%: reporting error and turn off the output after 5 seconds; | |
| Peak power | 6000VA | 10000VA |
| Loaded motor capacity | 2HP | 4HP |
| Output short-circuit protection | Breaker | |
| Specification of bypass breaker | 30A | 40A |
| Rated battery input voltage | 48V (minimum start voltage 44V) | |
| Battery voltage range | 40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm/turnoff voltage/overvoltage alarm/overvoltage restoration…settable LCD screen) | |
| Power saving mode | Load ≤25W | |
| AC charge | ||
| Battery type | Lead acid or lithium battery | |
| Maximum charge current | 60A | 60A |
| Charge current error | ± 5Adc | |
| Charge voltage range | 40~60Vdc | |
| Short-circuit protection | Circuit breaker and blown fuse | |
| Breaker specification | 30A | 40A |
| Overcharge protection | Alarm and turn off charging after 1 minute | |
| Solar charge | ||
| Maximum PV opencircuit voltage | 500Vdc | |
| PV operation voltage range | 120-500Vdc | |
| MPPT voltage range | 120-450Vdc | |
| Battery voltage range | 40-60Vdc | |
| Maximum output power | 3000W | 5000W |
| Charge current range of solar energy (settable) | 0-60A | 0-80A |
| Charge short-circuit protection | Blown fuse | |
| Wiring protection | Reverse polarity protection | |
| Authentication specification | ||
| Specification authentication | CE(IEC/EN62109-1,-2)、ROHS2.0 | |
| EMC authentication grade | EN61000 | |
| Operation temperature range | -15°C to 55°C | |
| Storage temperature range | -25°C ~ 60°C | |
| Humidity range | 5% to 95% (Conformal coating protection) | |
| Noise | ≤60dB | |
| Thermal dissipation | Forced air cooling, variable speed of fan | |
| Communication interface | USB/RS485(Bluetooth/WiFi/GPRS)/Dry node control | |
| Dimension (L*W*D) | 426mm*322mm*126mm | |
| Weight (kg) | 11 | |
