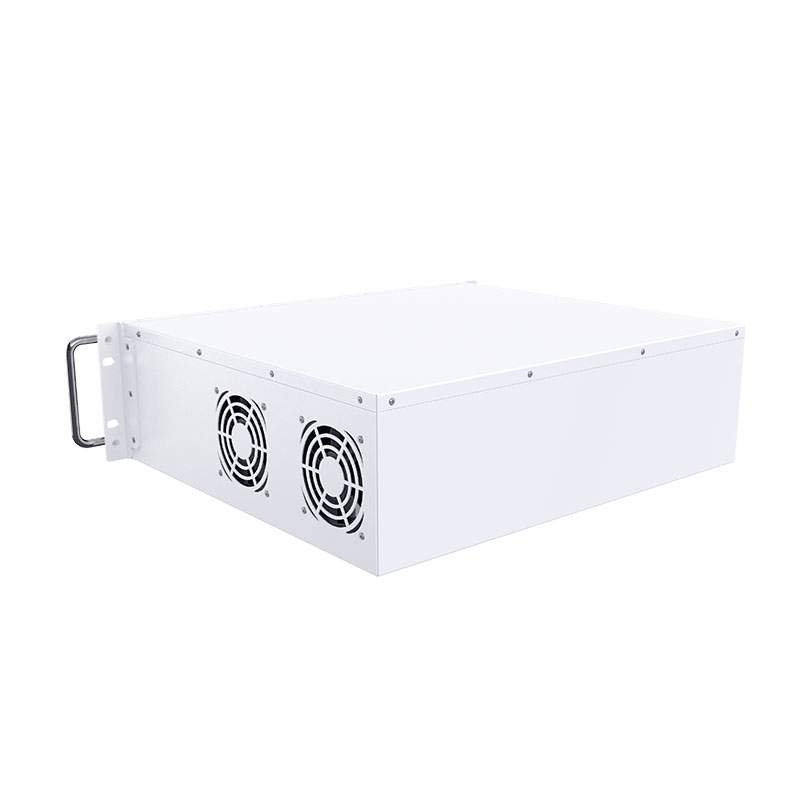

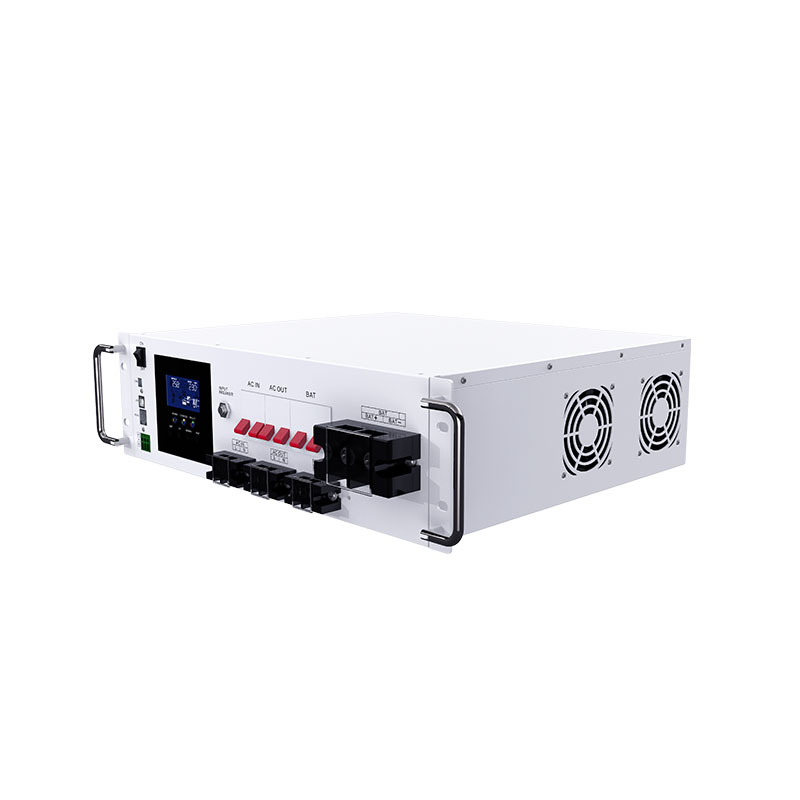

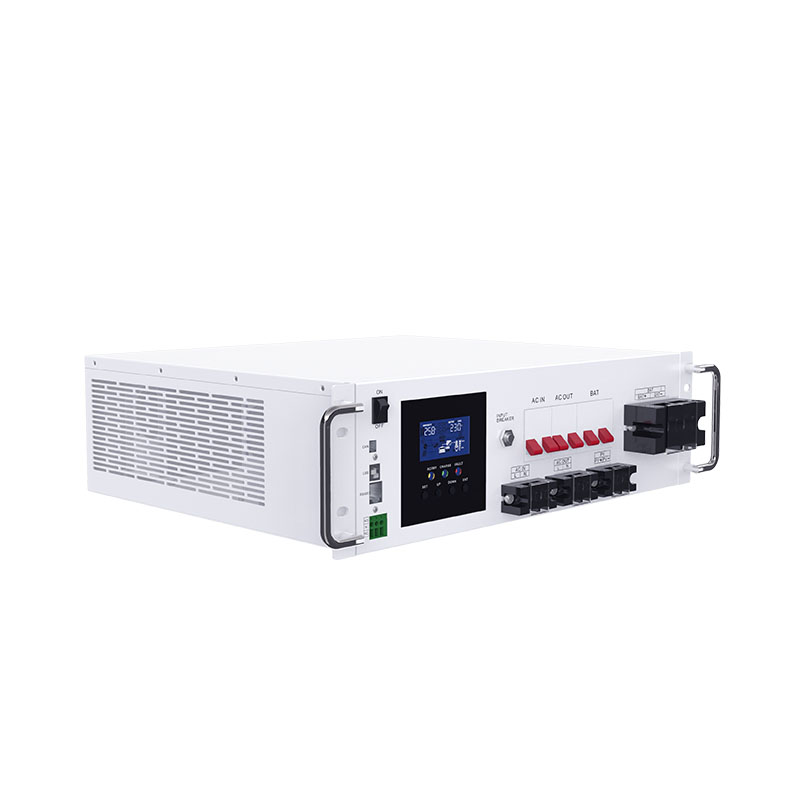

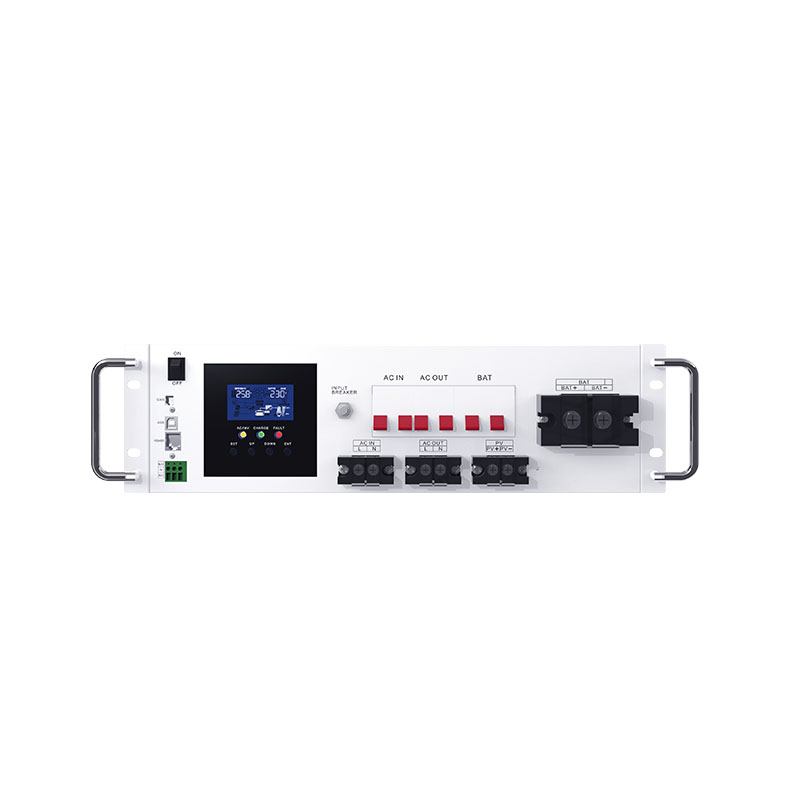

HT series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output.
Thanks to DSP control and advanced controlalgorithm, it has high response speed, high reliability and high industrial standard.
| Models | HT4830S80-145 | HT4840S80-145 | HT4850S80-145 |
| AC mode | |||
| Rated input voltage | 220/230Vac | ||
| Input voltage range | (170Vac~280Vac) ±2%/(90Vac-280Vac)±2% | ||
| Frequency | 50Hz/ 60Hz (automatic detection) | ||
| Frequency range | 47±0.3Hz ~ 55±0.3Hz (50Hz);57±0.3Hz ~ 65±0.3Hz (60Hz); | ||
| Overload/short circuit protection | Circuit breaker | ||
| Efficiency | >95% | ||
| Conversion time (bypass andinverter) | 10ms (typical) | ||
| AC backflow protection | yes | ||
| Maximum bypass overload current | 40A | ||
| Inverting mode | |||
| Output voltage waveform | Pure sine wave | ||
| Rated output power (VA) | 3000(2600/2700/3000) | 4000(3480/3600/3800/4000) | 5000(4350/4500/4800/5000) |
| Rated output power (W) | 3000(2600/2700/3000) | 4000(3480/3600/3800/4000) | 5000(4350/4500/4800/5000) |
| Power factor | 1 | ||
| Rated output voltage (Vac) | 230Vac(200/208/220/240Vac Settable) | ||
| Output voltage error | ±5% | ||
| Output frequency range (Hz) | 50Hz ± 0.3Hz/60Hz ± 0.3Hz | ||
| Efficiency | >92% | ||
| Overload protection | (102% (125% Load>150% ±10%: Report error and turn off output after 5 seconds; | ||
| Peak power | 6000VA | 8000VA | 10000VA |
| Loaded motor capacity | 2HP | 3HP | 4HP |
| Output short circuit protection | Circuit breaker | ||
| Bypass circuit breaker specification | 63A | ||
| Rated battery input voltage | 48V (minimum starting voltage 44V) | ||
| Battery voltage range | 40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm / shutdown voltage / overvoltage alarm / overvoltage recovery...LCD screen can be set) | ||
| Eco mode | Load ≤50W | ||
| AC charge | |||
| Battery type | Lead acid or lithium battery | ||
| Maximum charge current | 60A | ||
| Charge current error | ± 5Adc | ||
| Charge voltage range | 40 –58Vdc | ||
| Short circuit protection | Circuit breaker | ||
| Circuit breaker specification | （AC IN）63A/（BAT）125A | ||
| Overcharge protection | Alarm and turn off charging in 1 minute. | ||
| Solar charge | |||
| Maximum PV open circuit voltage | 145Vdc | ||
| PV operating voltage range | 60-145Vdc | ||
| MPPT voltage range | 60-115Vdc | ||
| Battery voltage range | 40-60Vdc | ||
| Maximum output power | 4200W | ||
| PV charge current range (settable) | 0-80A | ||
| Charge short circuit protection | BAT circuit breaker and fuse | ||
| Wiring protection | Reverse polarity protection | ||
| Authentication specification | |||
| Specification certification | CE(EN62109) | ||
| EMC certification level | EN61000,C2 | ||
| Operating temperature range | -15°C to 55°C | ||
| Storage temperature range | -25°C ~ 60°C | ||
| RH range | 5% to 95% (conformal coating protection) | ||
| Noise | ≤60dB | ||

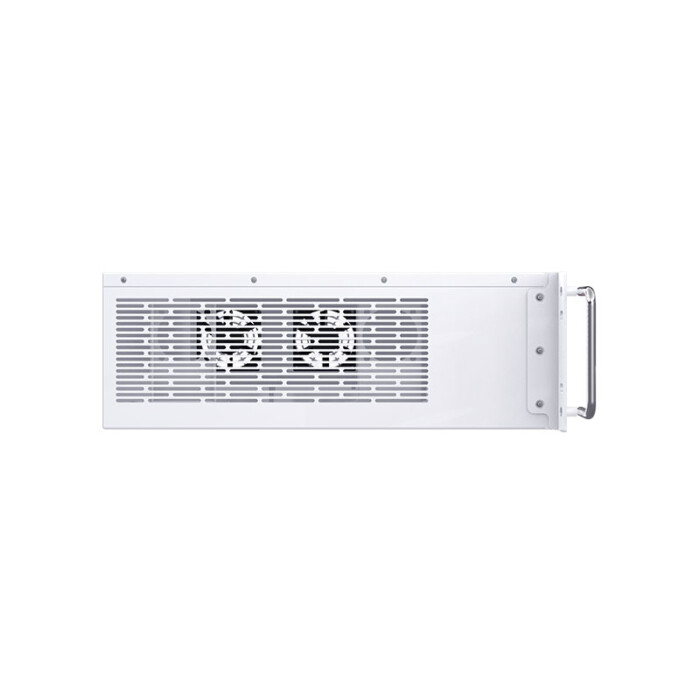

| Heat dissipation | Forced air cooling, adjustable air speed | ||
| Communication interface | USB/RS485 (WiFi/GPRS)/Dry Node Control | ||
| Dimensions (L*W*D) | 482mm*425mm*133mm | ||
| Weight (kg) | 13.3 | ||
