HES4880S200-H / HES48100S200-H / HES48120S200-H
IP65 protection degree for outside installation
EU and North American safety approvals

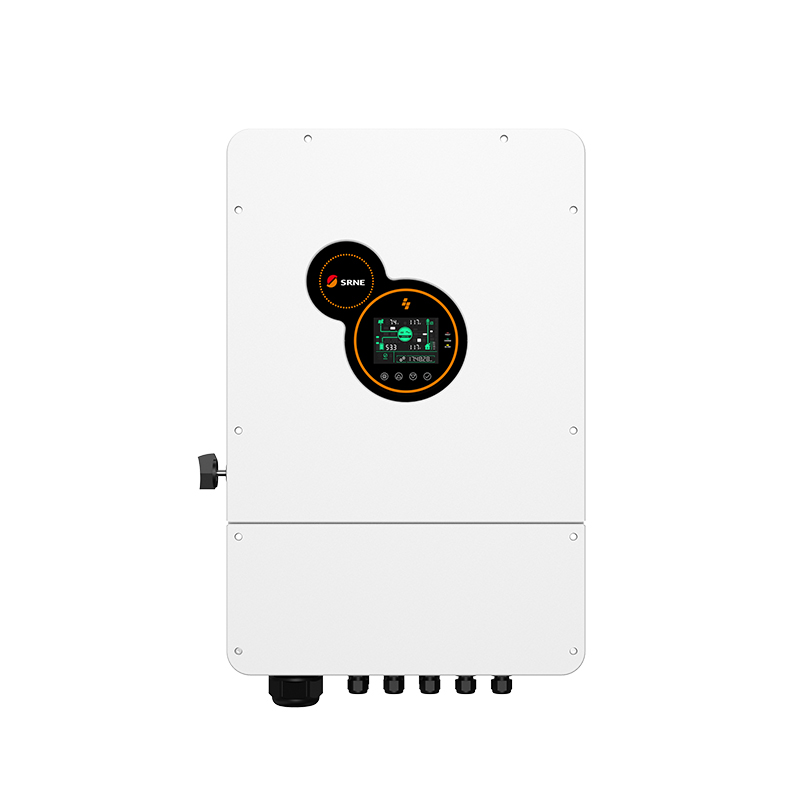

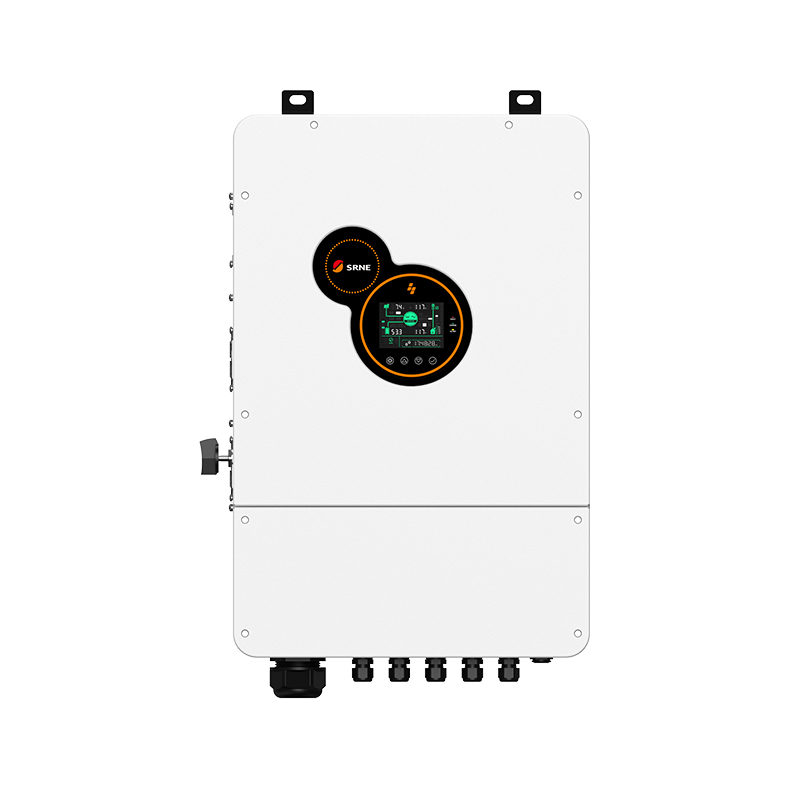

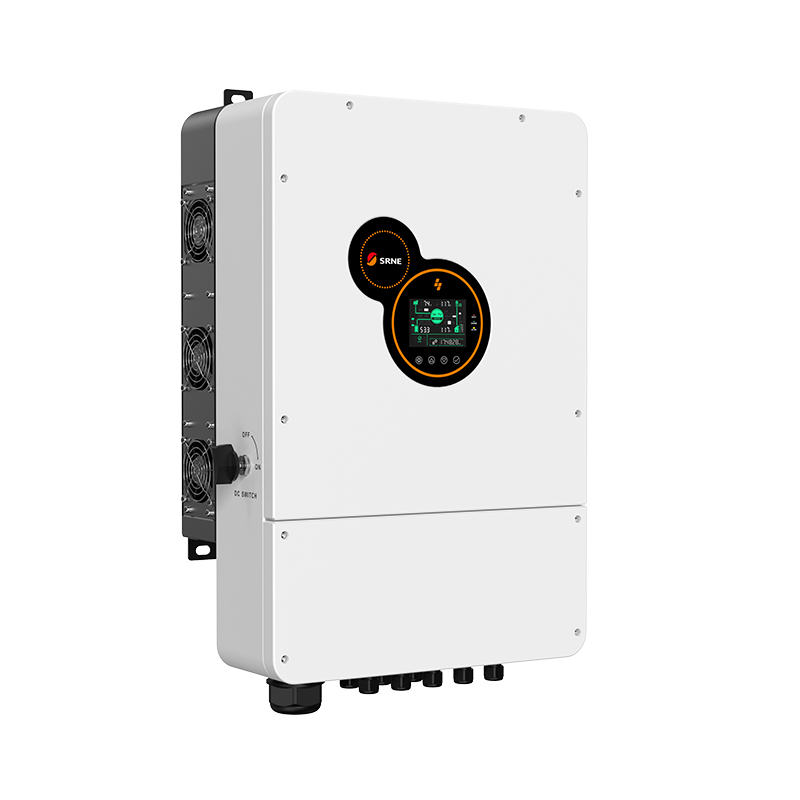

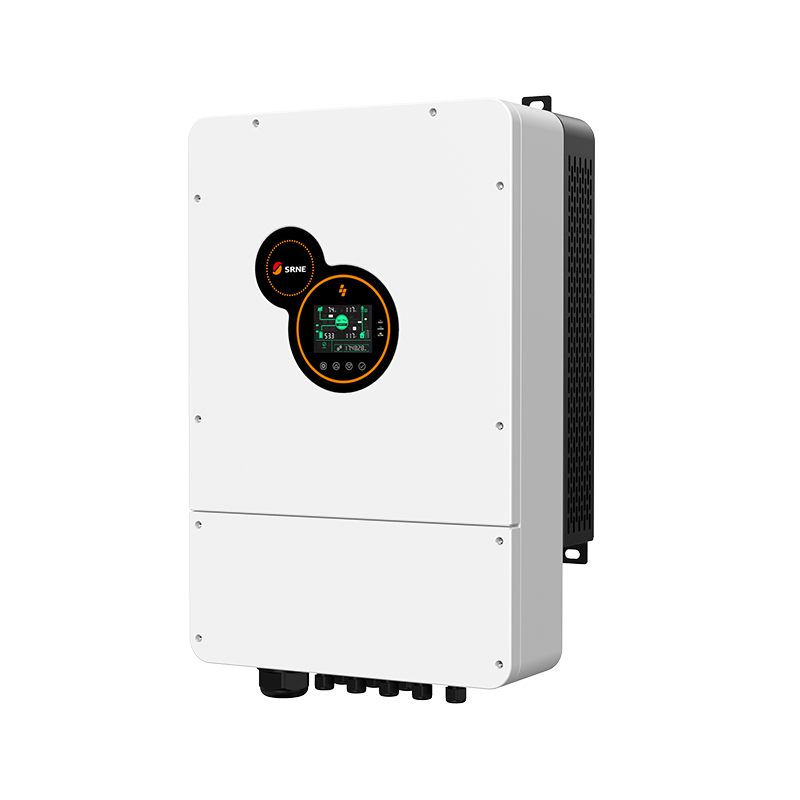

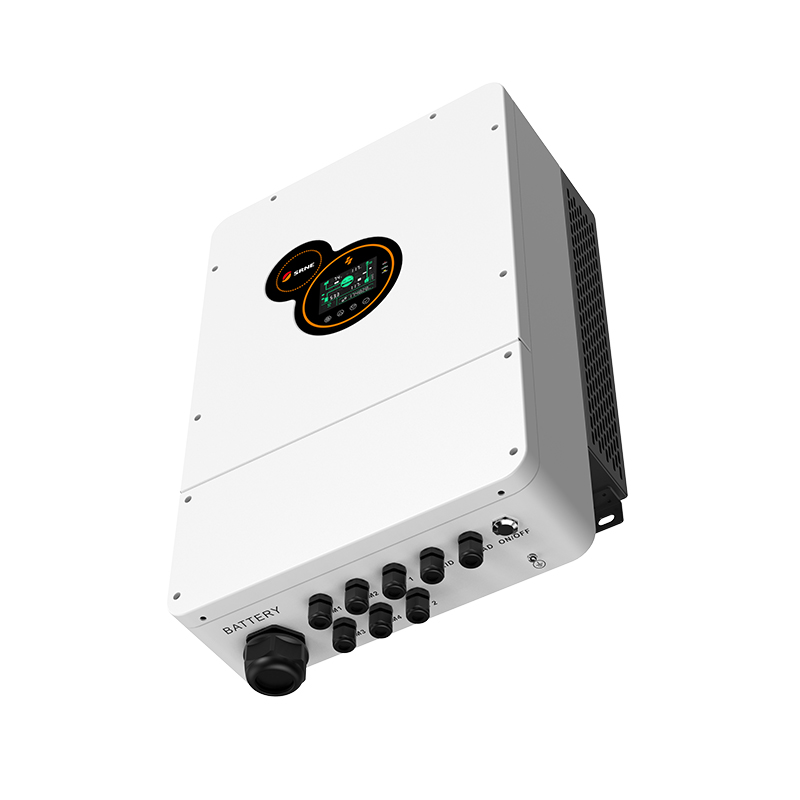

Hybrid Solar Inverter 8000W/10000W/12000W 500Vdc
Description
Functional characteristics:
·It has the function of segmented charging and discharging.
·Backflow prevention and grid connection function.
·Insulation resistance and leakage current detection function.
·Working without battery under special conditions.
·Lithium battery activation function, which can be triggered by mains or PV.
·Power saving mode, reduce no-load loss.
.Four charging modes: PV Only, Mains Priority, PV Priority and PV&Mains hybrid charging.
·Two output modes: mains bypass and inverter output, with UPS function.
·360 °all-round protection.
.Allow lead-acid battery and lithium battery access.
·ON/OFF switch controls the inverter AC output
·Grid-connected mode can be set.
Design characteristics:
·Adopting full-digital double closed loop control, combined with advanced SPWM.technology and pure sine wave output.
·Advanced MPPT technology with efficiency of 99.9％.
·LCD screen and three LED indicator lights can clearly indicate the status and data.
·Intelligent and variable-speed fan, efficiently dissipate heat and extend system life.
·Multiple safety protection functions: short circuit protection, overload protection,reverse polarity protection and so on.
| MODEL | HES4880S200-H | HES48100S200-H | HES48120S200-H |
| INVERTER OUTPUT | |||
| Rated Output Power | 8800W | 10000W | 12000W |
| Max.Peak Power | 17,600VA | 20,000VA | 24,000VA |
| Rated Output Voltage | 230Vac（single-phase) | ||
| Load Capacity of Motors | 5HP | 6HP | |
| Rated AC Frequency | 50/60Hz | ||
| Waveform | pure sine wave | ||
| Switch Time | 10ms（typical） | ||
| BATTERY | |||
| Battery Type | Lead-acid / Li-ion / User Defined | ||
| Rated Battery Voltage | 48V | ||
| Voltage Range | 40～60Vdc | ||
| Max.MPPT Charging Current | 200A | ||
| Max.Mains/Generator Charging Current | 120A | ||
| Max.Hybrid Charging Current | 200A | ||
| PV INPUT | |||
| Num. of MPPT Trackers | 2 | ||
| Max.PV Array Power | 11000W | 13000W | |
| Max.Input Current | 22A | ||
| Max.Voltage of Open Circuit | 500Vdc | ||
| MPPT Voltage Range | 125~425Vdc | ||
| MAINS/GENERATOR INPUT | |||
| Input Voltage Range | 90-275Vac | ||
| Frequency Range | 50/60Hz | ||
| EFFICIENCY | |||
| MPPT Tracking Efficiency | 99.9% | ||
| Max. Battery Inverter Efficiency | 97.5% | ||
| GENERAL | |||
| Dimensions | 700*440*240mm | ||
| Weight | 37kg | ||
| Protection Degree | IP65 | ||
| Operating Temperature Range | -25~60℃,>45℃ derated | ||
| Humidity | 0～100% | ||
| Cooling Method | Internal Fan | ||
| Warranty | 5 years | ||
| COMMUNICATION | |||

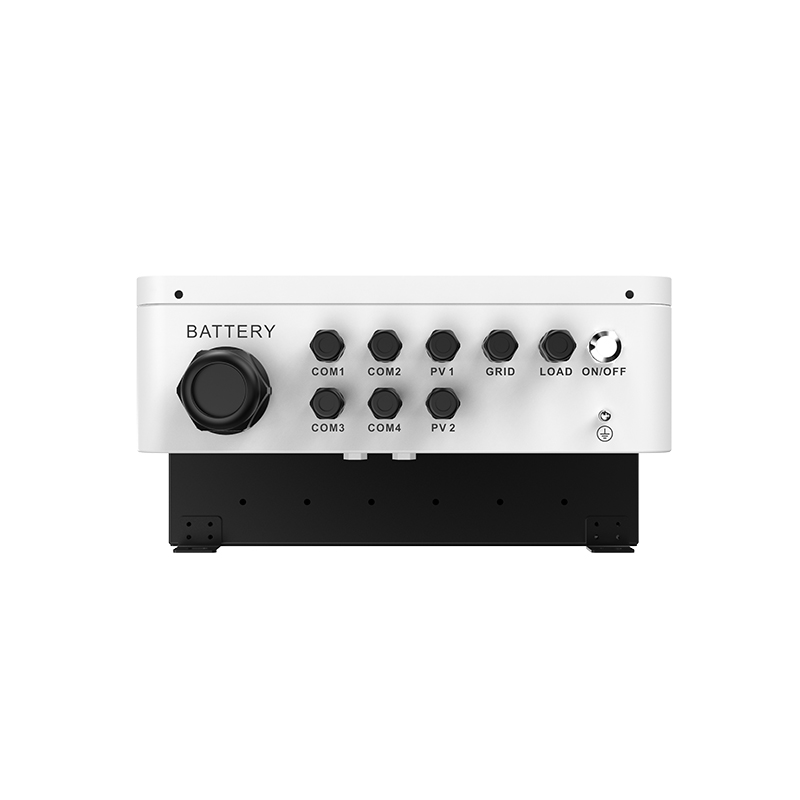

| Embedded Interfaces | RS485 / CAN / USB / Dry contact | ||
| External Modules（Optional） | Wi-Fi / GPRS | ||
| CERTIFACATION | |||
| Safety | IEC62109-1, IEC62109-2 | ||
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | ||
| Rohs | Yes | ||
solar charger inverter Authentications
FAQ:
Q1: What kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.
Q2: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and manufacturing as one with PV controller,PV inverter,PV energy storage oriented.And we have our own factory.
Q3: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can help u fix any technicial problem or confusion.
Q4: How are about the delivery?
SRNE:Sample:1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order:4-8 working days after confirming the sample
Q5: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the defective rate is below 0.1%.we do try our best to provide a good customer service.
Q6:Minimum Order Quantity?
SRNE:Be equal or greater than 1 piece.
