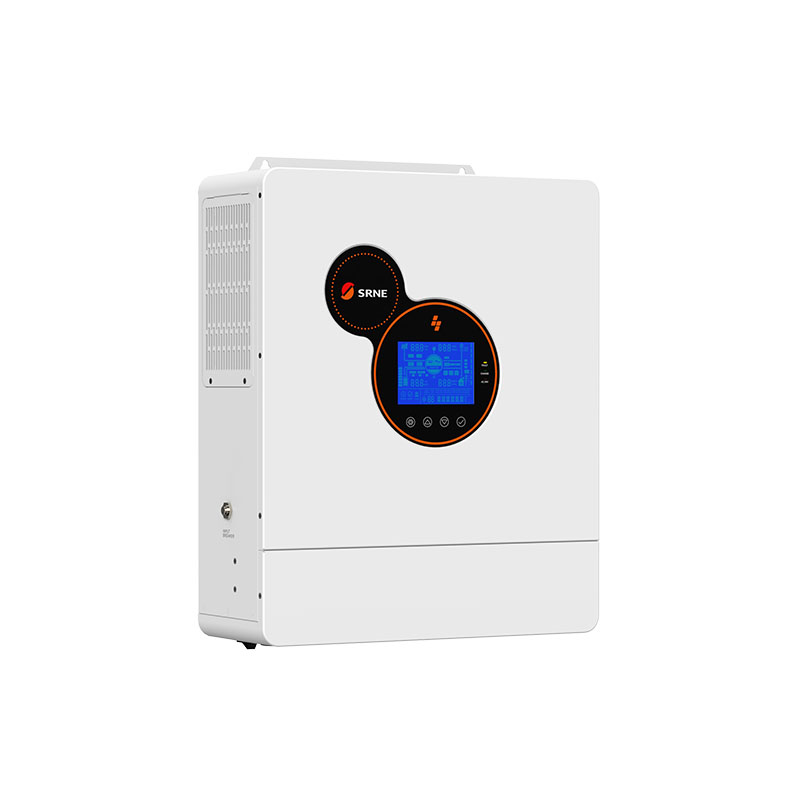

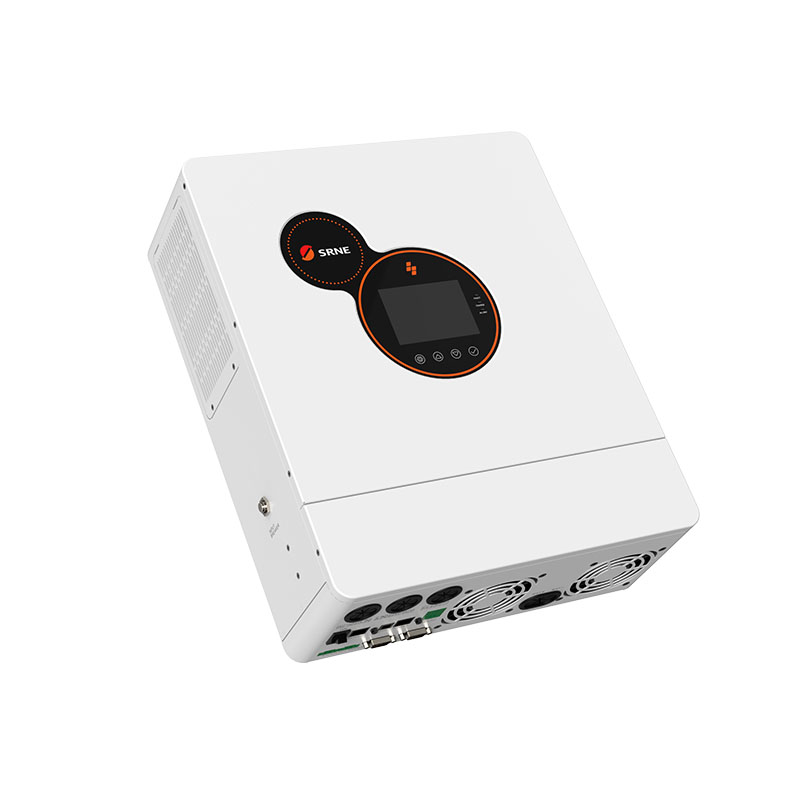

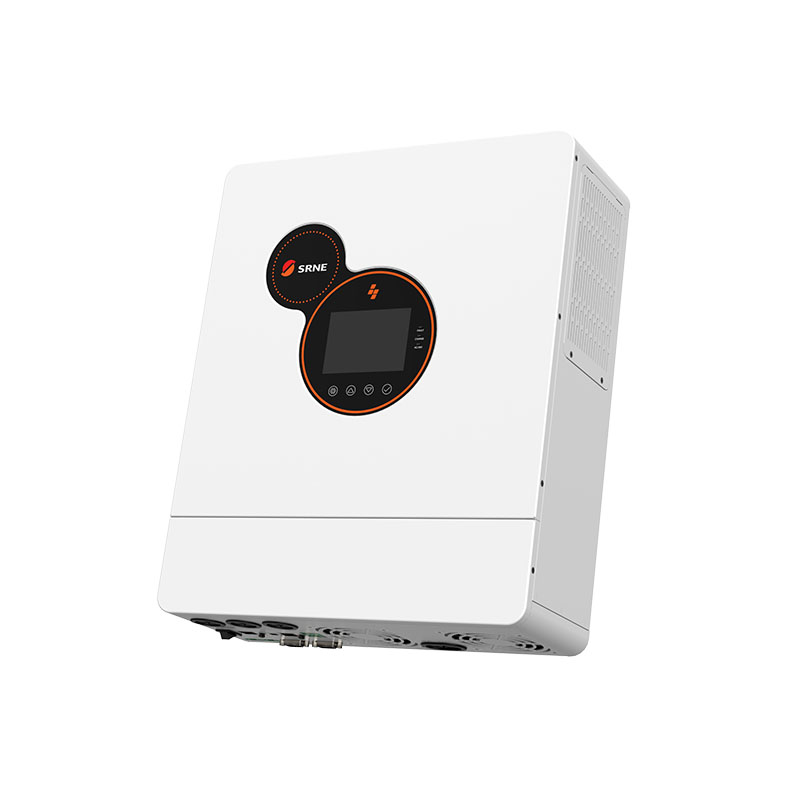

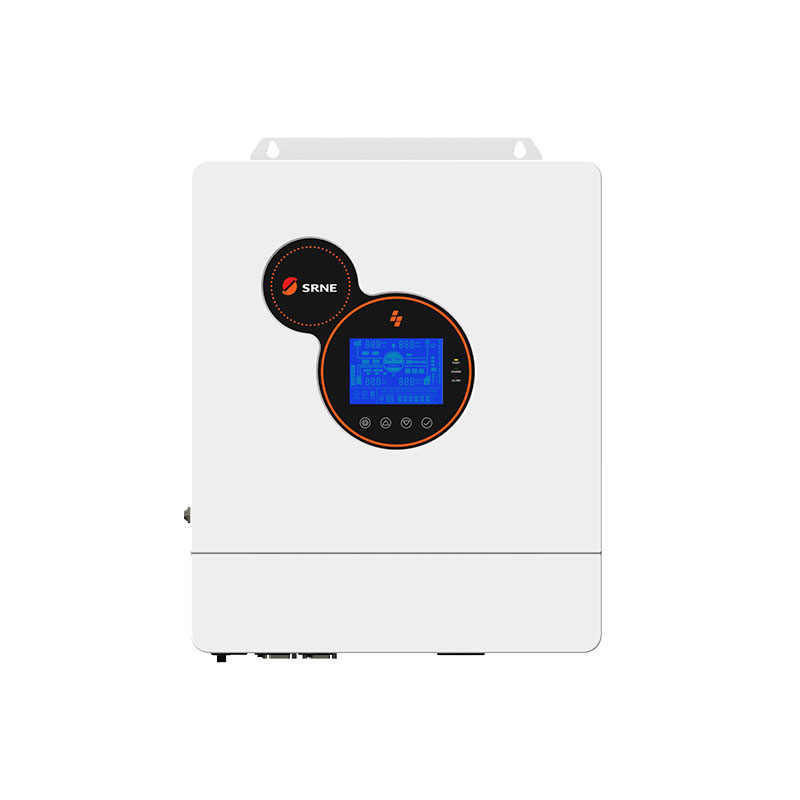

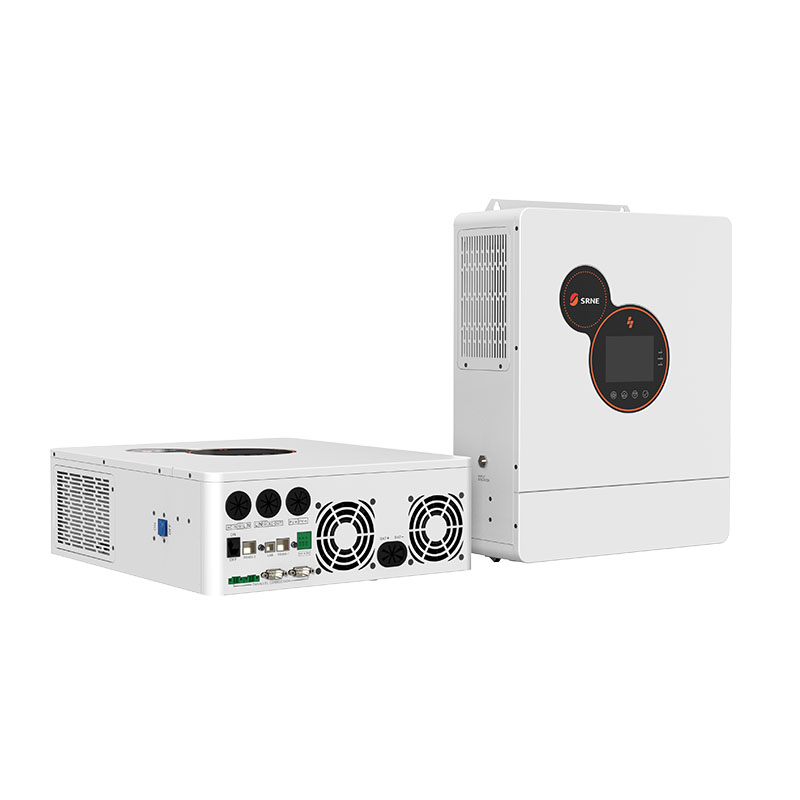

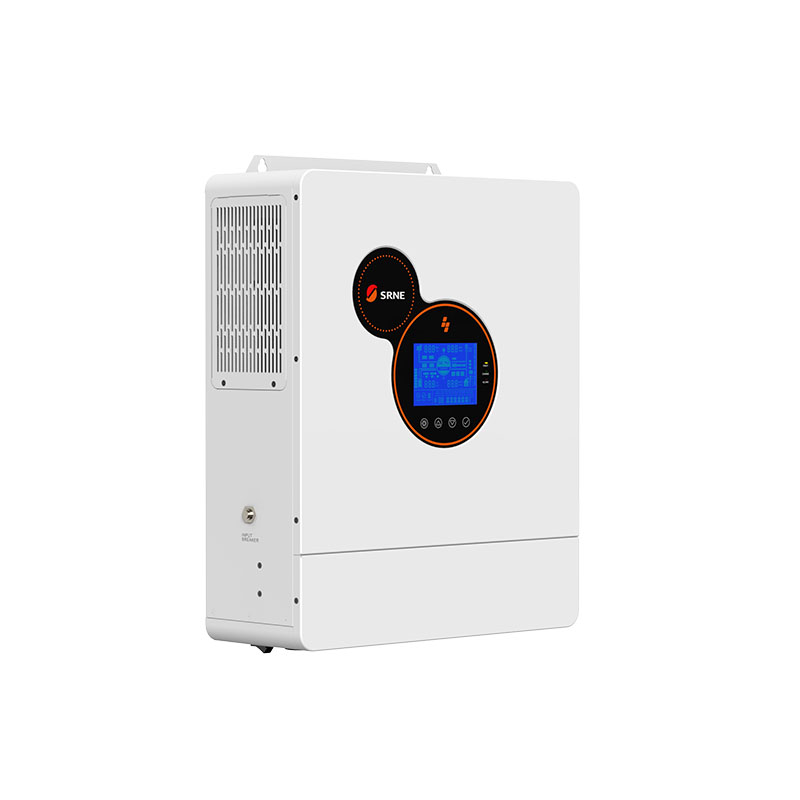

HYP series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output.

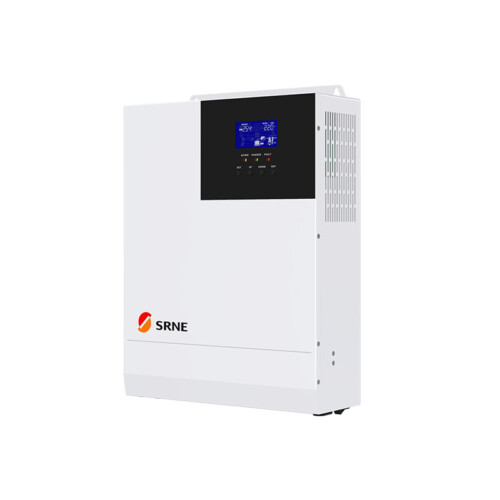

HYP Series Off Grid Inverter 5kW 48V 230V Voc500 Parallel Connection
Description
HYP 5kW_48V_230V_Voc500
1.Anti-backflow grid connection function, support for inverter and mains power hybrid output,
support for use without battery, can be set up for on-grid power generation.
2.Two output modes: mains bypass and inverter output; uninterrupted power supply.
3.Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar
hybrid charging.
4.Advanced MPPT technology with an efficiency of 99.9%.
5.Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.
6.With time slot control, you can set the priority of using the mains and battery according to the time slot in conjunction with the local peak and valley tariffs.
7.Power saving mode available to reduce no-load loss.
8.Intelligent variable speed fan efficiently dissipate heat and extend system life.
9.Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and lithium battery.
10.360 ° all-around protection with a number of protection functions.
11.Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.
| MODEL | HYP4850U100-H |
| INVERTER OUTPUT | |
| Rated Output Power | 5,000W |
| Max.Peak Power | 10,000VA |
| Rated Output Voltage | 230Vac（L/N/PE single-phase） |
| Load Capacity of Motors | 4HP |
| Rated AC Frequency | 50/60Hz |
| Waveform | Pure sine wave |
| Switch Time | 10ms（typical） |
| Parallel Capacity | 1-6 units（single/three phase） |
| BATTERY | |
| Battery Type | Li-ion / Lead-acid / user-define |
| Rated Battery Voltage | 48Vdc |
| Voltage Range | 40～60Vdc |
| Max.MPPT Charging Current | 100A |
| Max.Mains/Generator Charging Current | 60A |
| Max.Hybrid Charging Current | 100A |
| PV INPUT | |
| Num. of MPP Trackers | 1 |
| Max.PV array power | 5,500W |
| Max.input current | 22A |
| Max.Voltage of Open Circuit | 500Vdc |
| MPPT Voltage Range | 125～450Vdc |
| MAINS / GENERATOR INPUT | |
| Input Voltage Range | 90～280Vac |
| Frequency Range | 50/60Hz |
| Bypass Overload Current | 40A |
| EFFICIENCY | |
| MPPT Tracking Efficiency | 99.9% |
| Max. Battery Inverter Efficiency | 92% |
| GENERAL | |
| Dimensions | 446.9*350*133mm |
| Weight | 13kg |
| Protection Degree | IP20，indoor only |
| Operating Temperature Range | -15~55℃ |
| Noise | <60dB |
| Cooling Method | Intelligent fan |
| Warranty | 2 years |
| COMMUNICATION | |

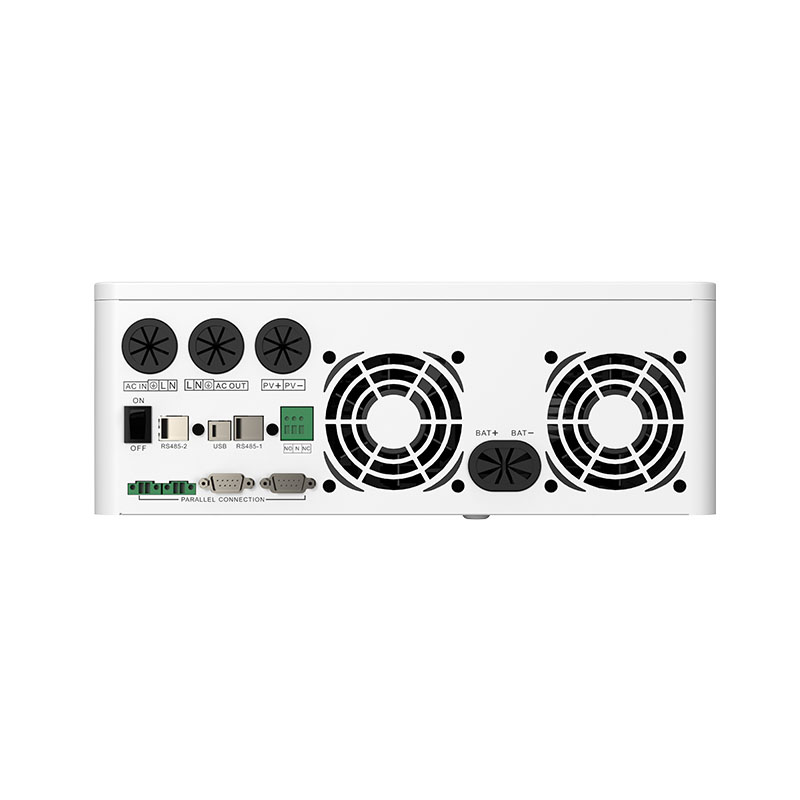

| Embedded Interfaces | RS485/CAN/USB/dry contact |
| External Modules （Optional） | Wi-Fi/GPRS |
| CERTIFICATION | |
| Safety | CE（IEC62109-1） |
| EMC | EN61000 |
| RoHS | yes |
Instructions:
HYPseries_48V_5kW_Voc500_Hybird solar charge inverter_manual_1.0
Specification:
SRNE_HYPseries_5kW_48V_230V_Voc500_parallel connection_hybrid solar charge inverter_datasheet_1.0
FAQ:
Q1: What kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.
Q2: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and manufacturing as one with PV controller,PV inverter,PV energy storage oriented.And we have our own factory.
Q3: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can help u fix any technicial problem or confusion.
Q4: How are about the delivery?
SRNE:Sample:1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order:4-8 working days after confirming the sample
Q5: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the defective rate is below 0.1%.we do try our best to provide a good customer service.
Q6:Minimum Order Quantity?
SRNE:Be equal or greater than 1 piece.
