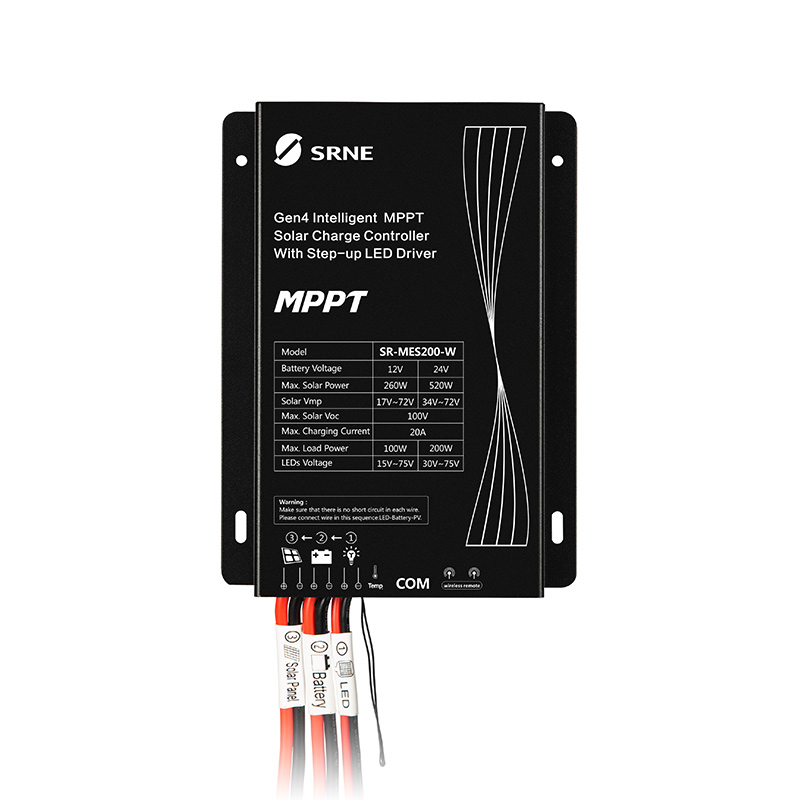

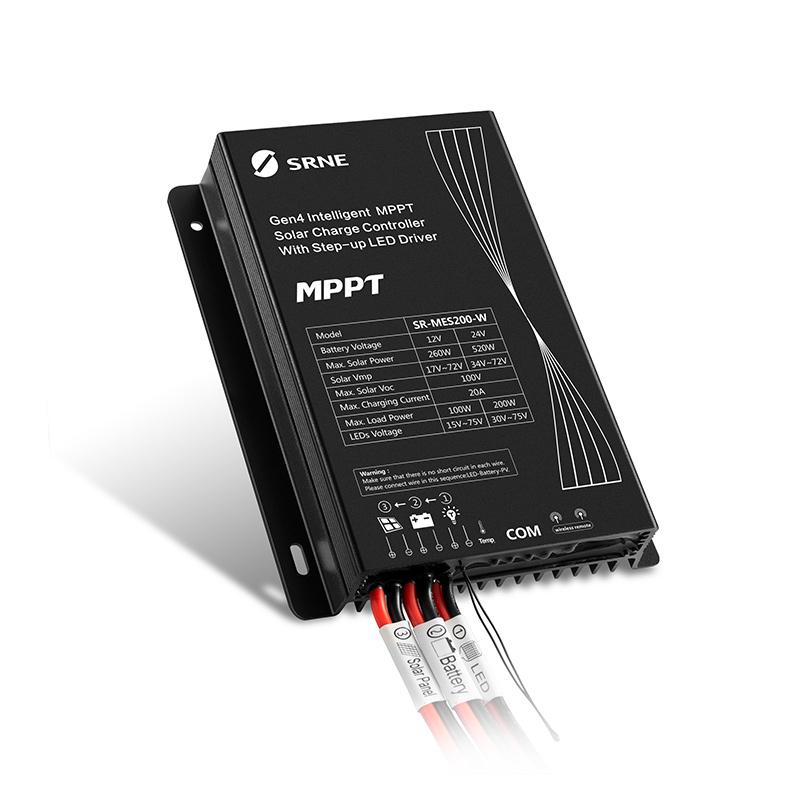

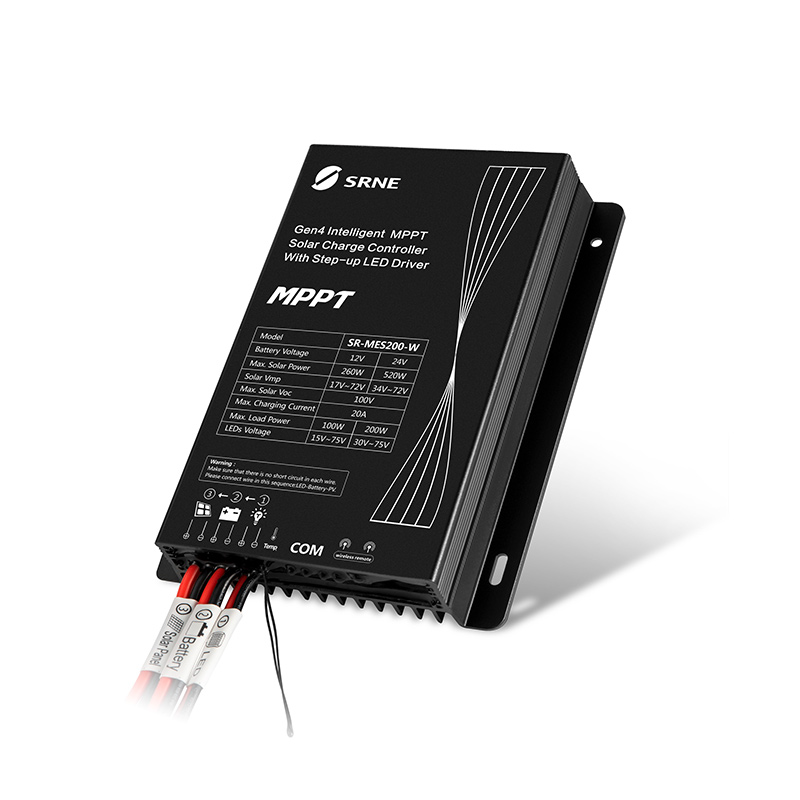

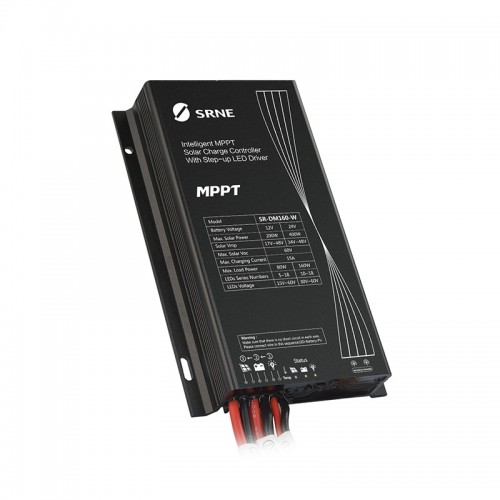

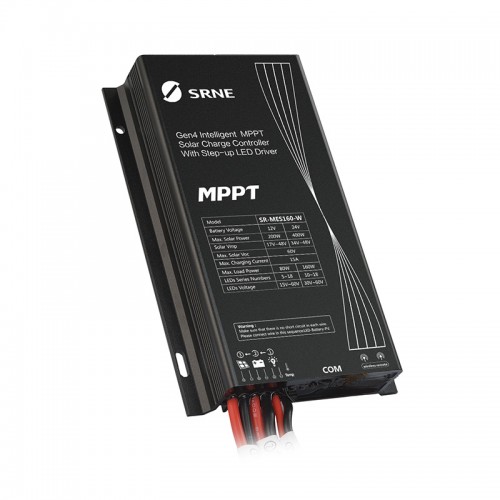

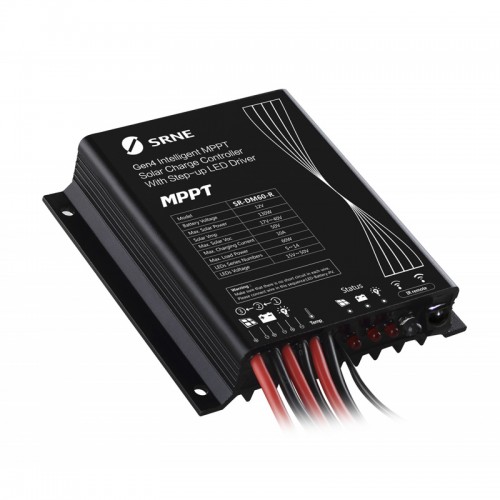

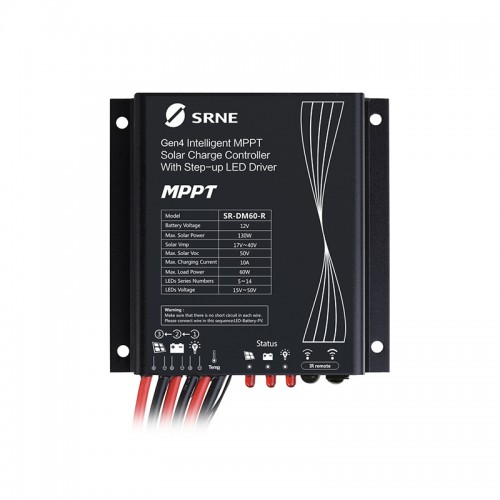

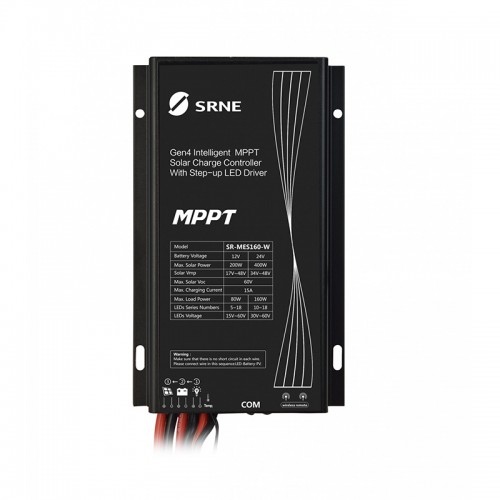

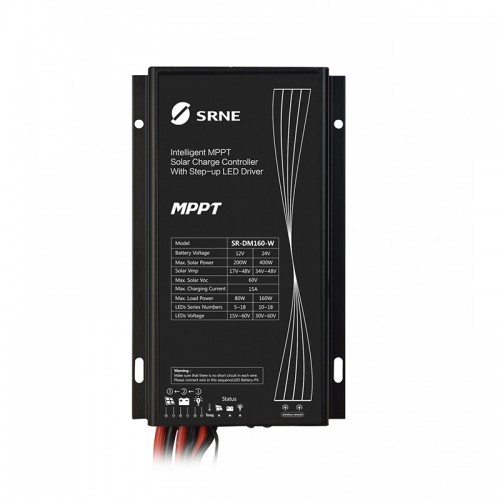

MPPT Human Sensing Controller MES200

Description

1. With MPPT technology, the controller has higher response speed and tracking efficiency, thus significantly improving the energy utilization efficiency of solar panels.

2. Infrared/microwave human body induction function.

3. Lead-acid battery and lithium battery are available; operating parameters can be set by remote control.

4. Temperature compensation function and multi-stage constant voltage charging for lead-acid battery.

5. Load power and time control.

6. Battery charge and discharge temperature protection and setting.

7. Intelligent power mode: The load power can automatically adjust according to the battery level.

8. High-precision digital step-up voltage and constant current control algorithm: ensure high efficiency and high constant current accuracy.

9. Infrared remote control: allow for parameters setting and status checking.

10. Provide battery/PV reverse electrode protection, LED short-circuit, open-circuit, and limited power protection, etc.

11. With metal outer shell and IP67 waterproof rating, the product can function well in various tough situations.

Items	Values				Adjusta ble	Default
Model	MES60	MES120	MES160	MES200
Controller type	-R: infrared remote control; -W: 2.4G wireless remote control;
System voltage	12V	12V/24V				Lead-acid
Static power consumption not include COM-IR, COM-WB	-R type ：≤5mA -W type：≤20mA	-R type： 6mA/12V; 4mA/24V -W type：18mA/12V;13mA/24V		-R type： ≤10mA/12V; ≤ 5mA/24V -W type： ≤25mA/12V; ≤15mA/24V
Sleep power consumption	≤1mA
Load current	50mA～3000mA	50mA～4200mA	50mA～5600mA	150mA～7000mA	√	330mA
Load voltage	15V～50V	15V～60V
Maximum load power	60W/12V	60W/12V；120W/24V	80W/12V；160W/24V	100W/12V；200W/24V
Load conversion efficiency	85%-96%(Typical efficiency 95%)
Load current accuracy	≤3%±30mA
Intelligent power	High, Moderate, Low, Auto, USE, No				√	Moderate
Load working period	9-Period + Pre-dawn lighting
Period adjustment range	1min / 10min
Power adjustment range	1% / 10%
Induction time delay	0s～60s/2min ～ 60min				√	10s
Sensing range	Infrared remote H:6～8m，L:6～10m；Wireless remote H:6～10m，L:7～10m
Maximum solar input power	130W/12V	130W/12V；260W/24V	200W/12V；400W/24V	260W/12V；520W/24V
Maximum charge current	10A		15A	20A
Maximum solar input voltage	≤50V	≤60V		≤100V
MPPT Tracking efficiency	＞99%
Charging conversion eff.	85%-98%（Typical efficiency97% ）
Over voltage	PB-16.0V；LI-overcharge voltage+2V；×2,24V system					16.0V
Limited charge voltage	PB-15.5V；LI-overcharge voltage+1V；×2,24V system					15.5V
Equalizing charge voltage	PB-14.6V；LI-None；×2,24V system					14.6V
Equalizing charge interval	30 days					30D
Boost charge voltage (lead-acid) Charge voltage (lithium)	8.5V ～ 17.0V；×2,24V system				√	14.4V
Floating charge voltage (lead-acid) Charge return voltage (lithium)	8.5V ～ 17.0V；×2,24V system				√	13.8V
Over discharge voltage	8.5V ～ 17.0V；×2,24V system				√	11.0V
Over discharge return voltage	8.5V ～ 17.0V；×2,24V system				√	12.5V
Temperature compensation coefficient	Pb: -3.0mV/℃/2V;lithium battery: no compensation
Light control voltage	3V ～ 11V;×2,24V system				√	5V
Light control delay	0s～60s/2min ～ 60min				√	10S
High temperature charge	+40℃～+90℃				√	65℃
Low temperature charge	0℃ ～ -35℃				√	-35℃
Operating temperature	-35℃ ～ +65℃
IP rating	IP67
Protections	Battery reverse polarity protection, solar panel reverse polarity protection, solar panel over-voltage protection, lithium battery overcharge and over- discharge protection, lithium battery BMS overcharge detection protection, over temperature protection, load open circuit and short circuit protection,
Weight	260g	400g	510g	770g
Controller dimensions (mm)	808222.6	11488.324.5	14288.324.5	155114.434
Controller mounting dimensions (mm)	66*75	74*82.3	102*82.3	116*102
Mounting hole diameter (mm)	Φ3.5
