MPL series waterproof MPPT charge controller integrates MPPT solar charge management, load disconnection control, IoT remote communication and other functions. It is suitable for lead-acid batteries / lithium batteries / colloid batteries, etc. For solar off-grid systems, RV systems, solar monitoring systems, solar street lights, etc. providing high reliability, high efficiency, high precision, ease of installationand maintenance and other benefits.

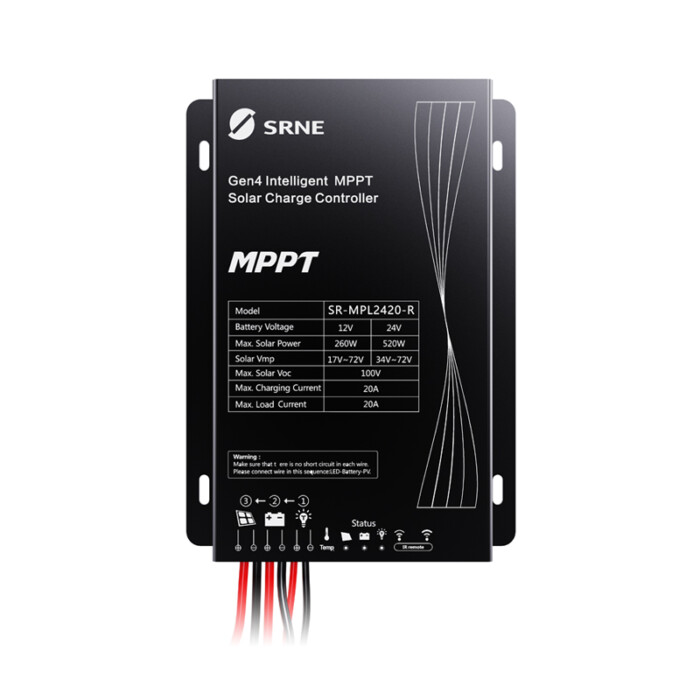

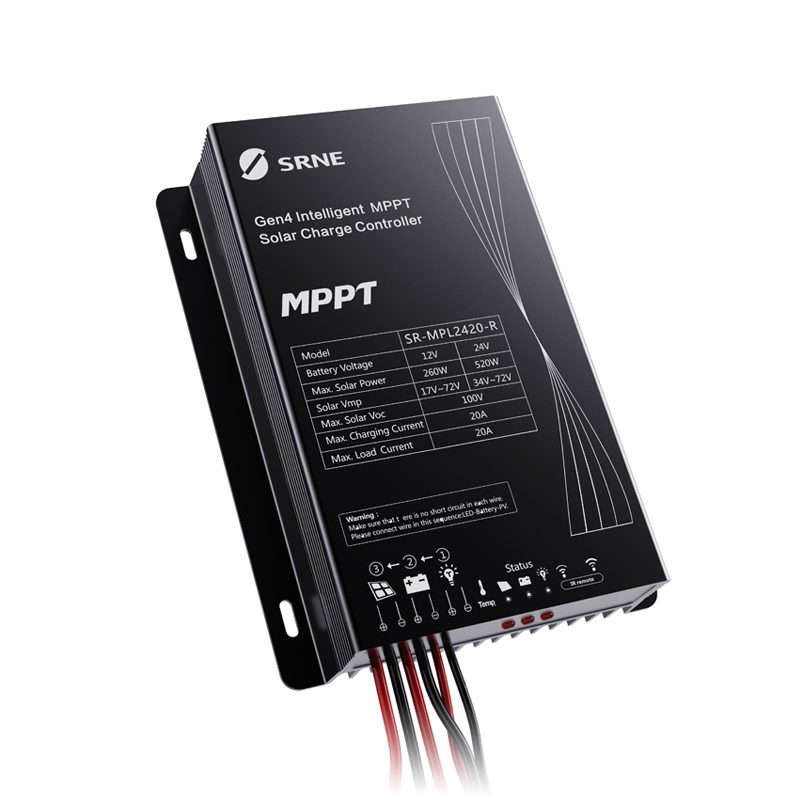

MPPT Solar Charge Controller Gen4 MPL Series User Manual
Description
MPPT Solar Charge Controller Gen4 MPL Series User Manual
1.Using MovingTrack MPPT maximum power tracking technology, higher tracking efficiency and faster speed;
2.Both lead-acid battery and lithium battery are applicable, operating parameters can be set by remote control;
3.Using UltraGreen power control technology with extremely low power consumption and sleep current;
4.Lead-acid battery multi-stage constant voltage charging with temperature compensation;
5.Load has normally On mode， Light control + time control, charging only mode, easy to apply to different systems
6.Battery charge and discharge high and low temperature protection, with operating temperature settable;
7.Infrared wireless communication, allowing for setting/reading parameters, reading status, etc;
8.Multiple protections such as battery/PV reverse polarity protection,Load shortcircuit/overcircuit protection, etc;
9.Extensible to IoT remote communication monitoring function;
10.Full aluminum housing, IP67 waterproof rating, applicable to a variety of harsh environments.
| Items | Default | Range |
| Battery type | Lead | Lead / lithium 12V / lithium 24V |
| Sensing delay | No | No |
| PV wake up | Yes | No/Yes |
| Light control voltage | 5V | 3V-11V |
| Light control delay | 10s | 5s-60min |
| Over discharge voltage | 11.0V | 9.00V-17.0V |
| Over discharge return voltage | 12.6V | 9.00V-17.0V |
| Boost charge | 14.4V | 9.00V-17.0V |
| Floating charge | 13.8V | 9.00V-17.0V |
| Low temperature charge | -35°C | -35°C-0°C |
| High temperature charge | 65°C | 40°C-90°C |
| *Load current | 0.33A | 0.15A-7.0A |
| *Intelligent power | Medium | No/High/Moderate/Low/Auto/*USE |
| *Derating start voltage | 12.4V | 9.00V-17.0V |
| *Derating end voltage | 11.4V | 9.00V-17.0V |
| *Minimum current | 0.15A | 0.05A-1.00A |
| Load parameter settings | Nth time | 00:00-15:00 |
| ower with no human motion sensed | 0%-100% | |
| Power with human motion sensed | 0%-100% | |
| Factory reset | No | No/Yes |
FAQ:
Q1: What kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.
Q2: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and manufacturing as one with PV controller,PV inverter,PV energy storage oriented.And we have our own factory.
Q3: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can help u fix any technicial problem or confusion.
Q4: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order:4-8 working days after confirming the sample
Q5: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the defective rate is below 0.1%.we do try our best to provide a good customer service.
Q6:Minimum Order Quantity?
SRNE:Be equal or greater than 1 piece.
