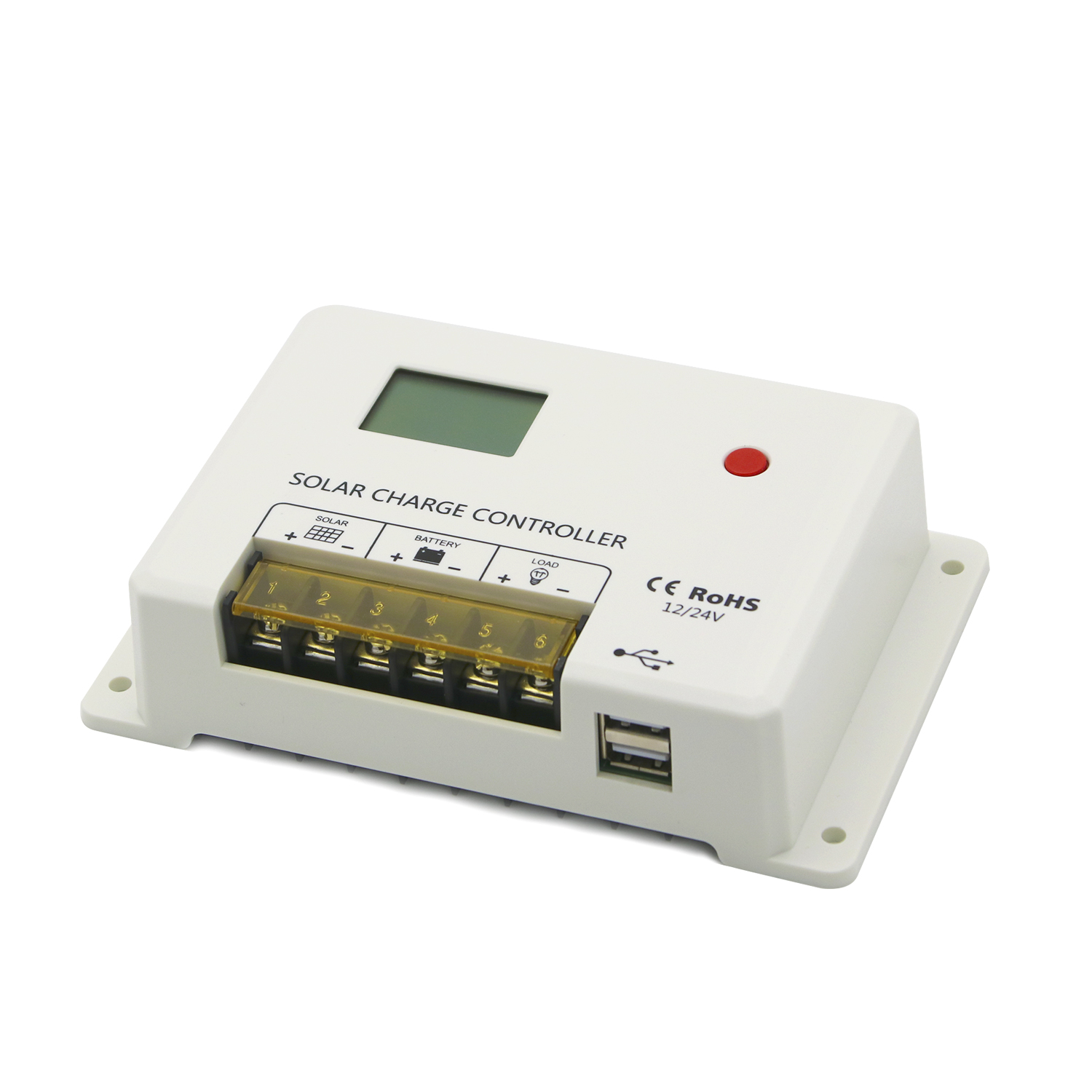

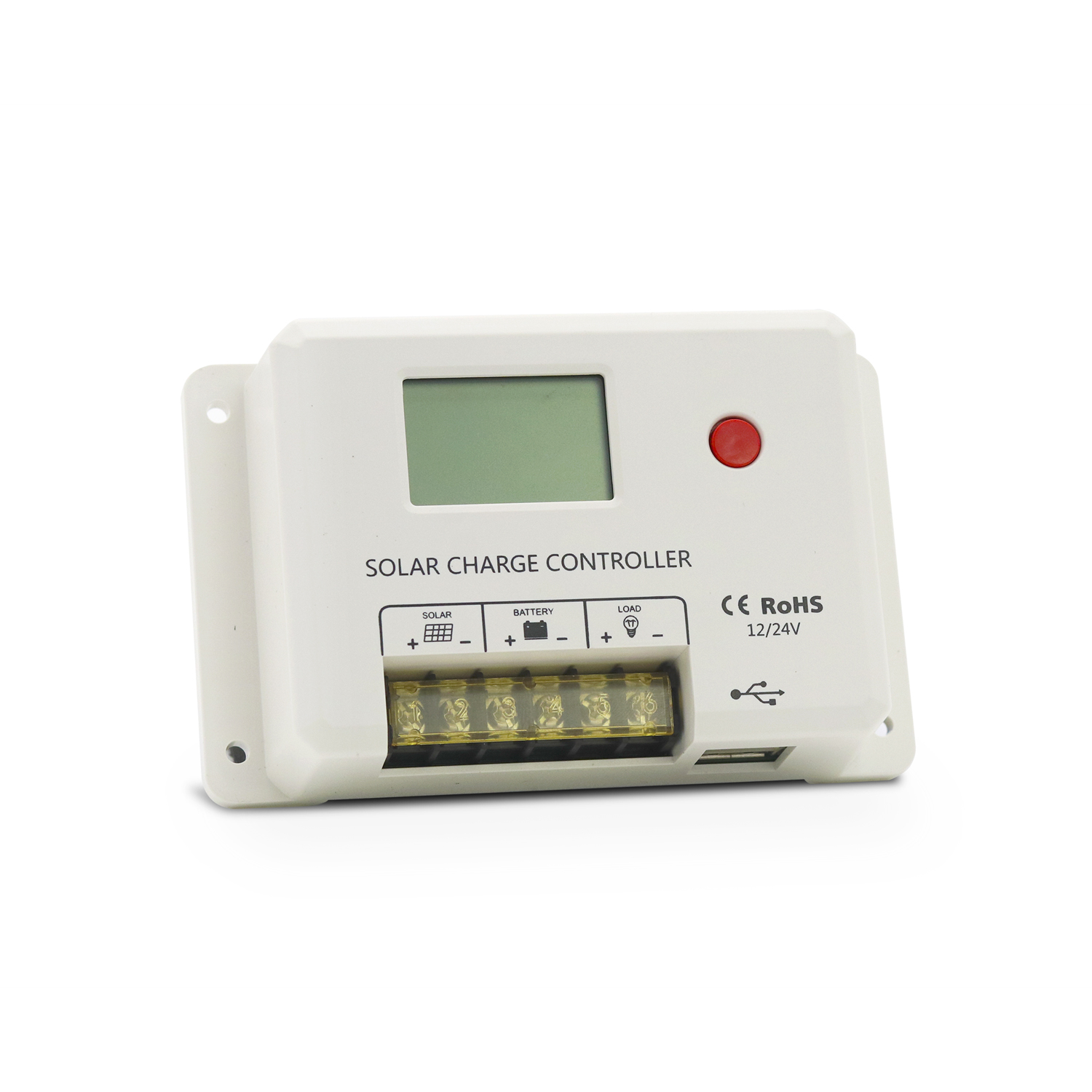

SR-HC series is a PWM charge controller with LCD display and two USB ports.Large-screen LCD for display, charge and discharge parameters adjustable, Allow selection of multiple battery types, with a flexibility to set the load to work during the day or night.It is widely applied to off-grid system which needs high reliability and quality products.
New PWM solar controller controller HC series10A/20A/30A
Description
1. 32-bit high-speed master control chip.
2. Large-screen LCD for display, charge and discharge parameters adjustable, Allow selection of multiple battery types, with a flexibility to set the load to work during the day or night..
3. Complete multi-stage PWM charge management.
4. Built-in reverse connection protection, open-circuit protection, high temperature protection, over-current/short-circuit protection (optional), which are all self -recovery type, with no damage to the controller.
5. Double MOS anti-backflow circuit, ultra-low heat generation.
6. Lithium battery activation available.
7. Dual USB output, maximum current up to 2A, supporting high current charging of Iphone, Ipad and Android mobile phones and other devices.
| Specifications | ||||
| HC2410 | HC2420 | HC2430 | ||
| System voltage | 12V/24V | |||
| Battery operating voltage range | 8-32V | |||
| Rated current | Charge | 10A | 20A | 30A |
| Load | 10A | 20A | 30A | |
| Maximum PV input voltage | 50V, enable protection and stop charging. Below 45V, charge resumes. | |||
| Charging mode | The default is PWM charging,b04/b07 can be set to intermittent charging. | |||
| USB output | 5V/2A | |||
| Static power consumption | ≤10mA | |||
| Operating temperature | -35~+60℃ | |||
| Altitude | ≤3000m | |||
| IP rating | IP32 | |||
| Product size | 120*75*34mm | 134*85*36mm | 159*100*39mm | |
| Installation size | 108.5*57.5mm | 121*70mm | 147*80mm | |
| Weight | 130g | 180g | 290g | |
solar charger inverter Authentications
FAQ:
Q1: What kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.
Q2: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and
manufacturing as one with PV controller,PV inverter,PV energy storage oriented.And we
have our own factory.
Q3: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can
help u fix any technicial problem or confusion.
Q4: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order:4-8 working days after confirming the sample
Q5: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the
defective rate is below 0.1%.we do try our best to provide a good customer service.
Q6:Minimum Order Quantity?
SRNE:Be equal or greater than 1 piece.
