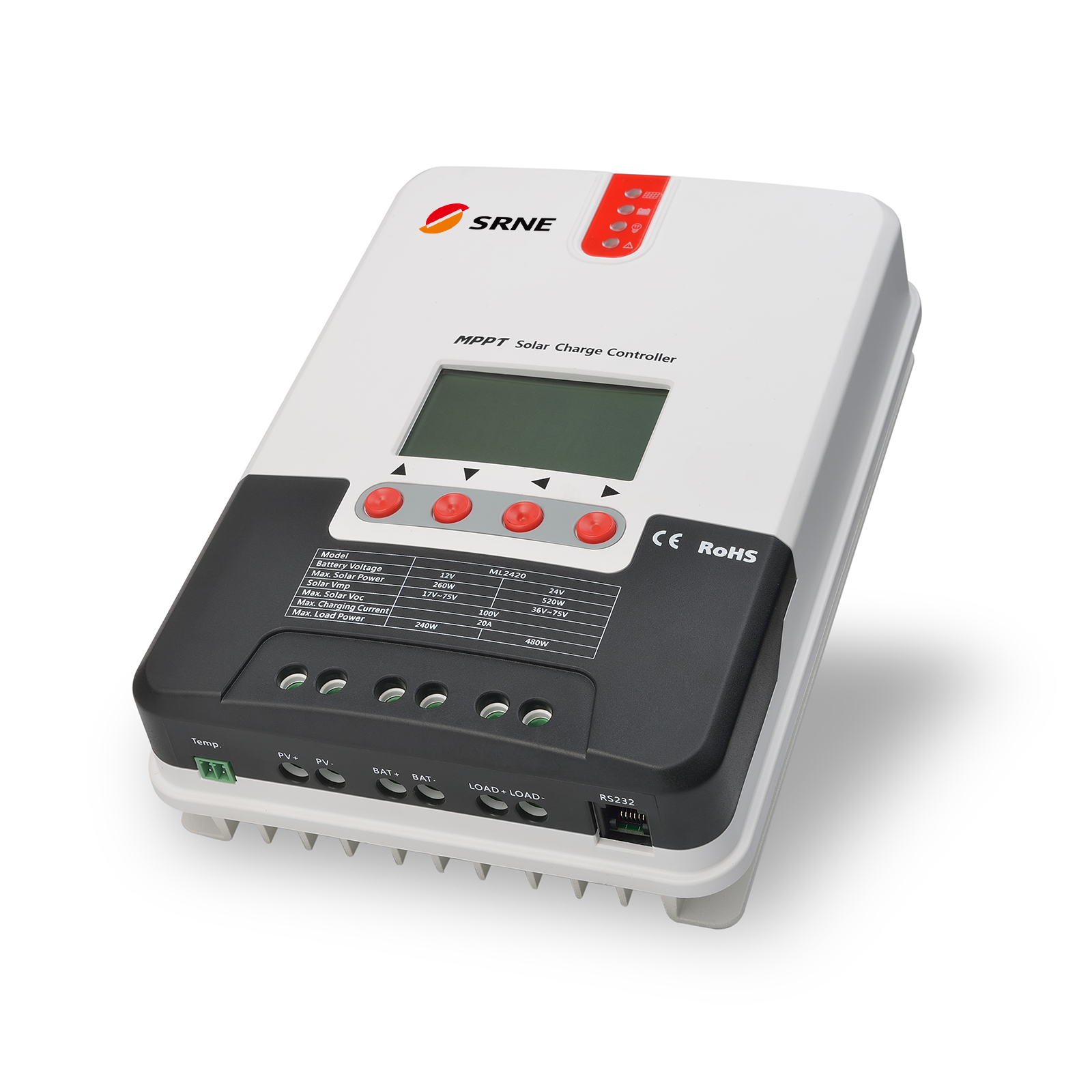

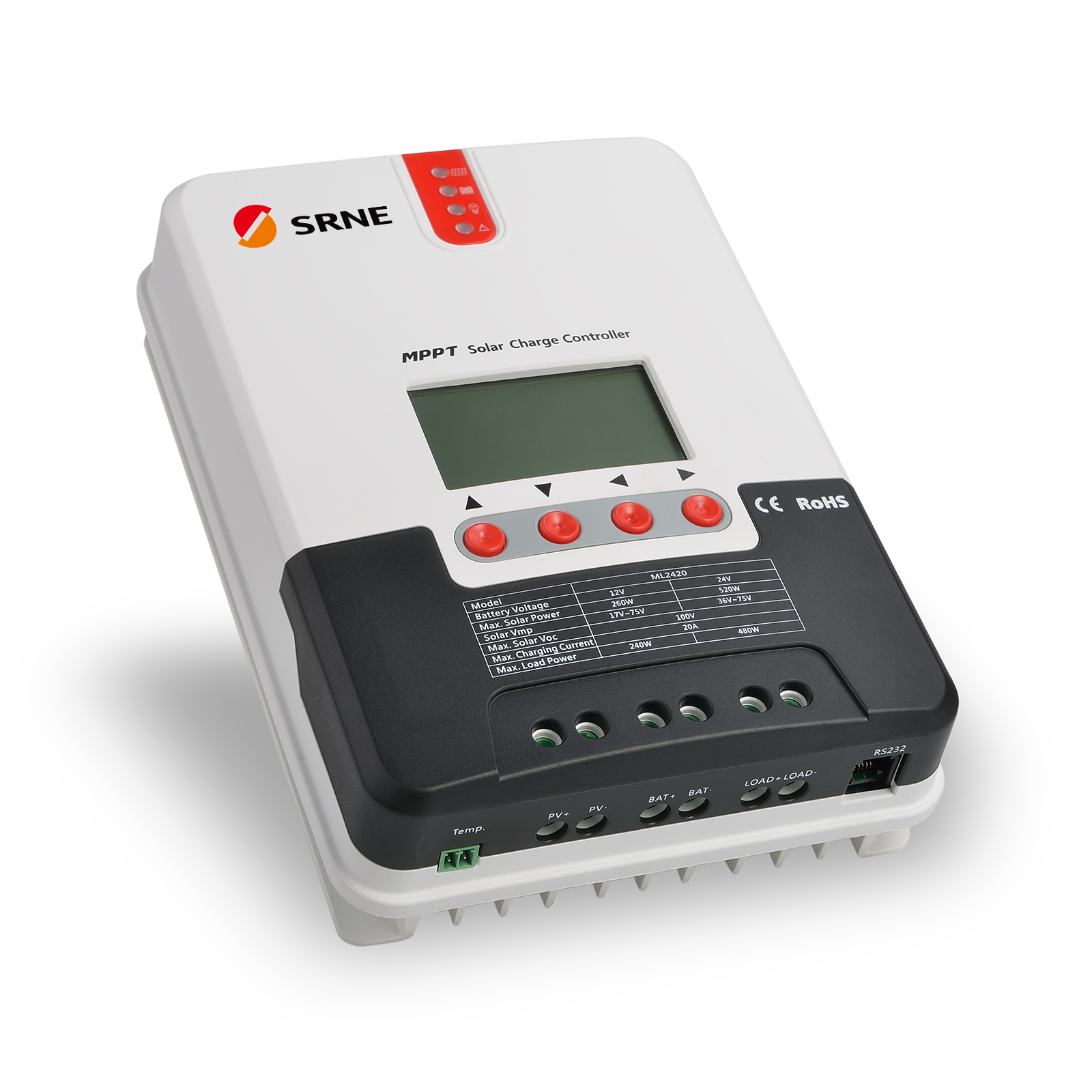

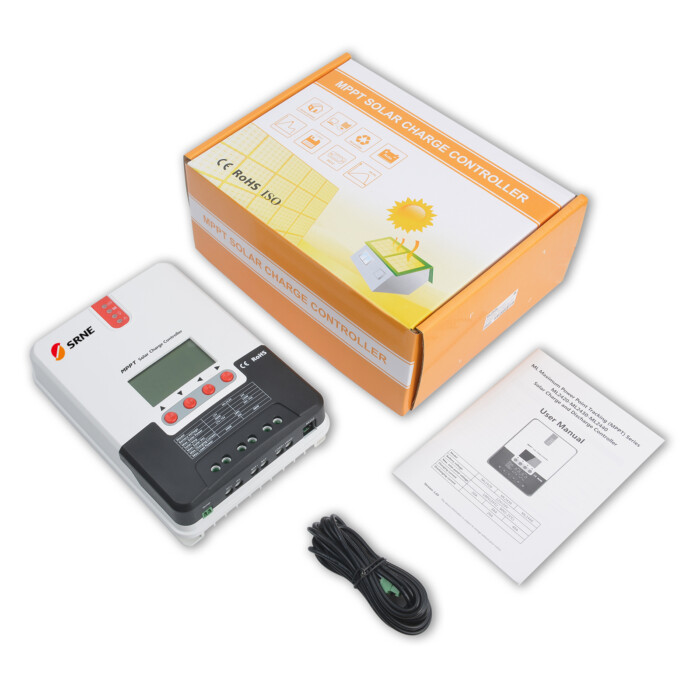

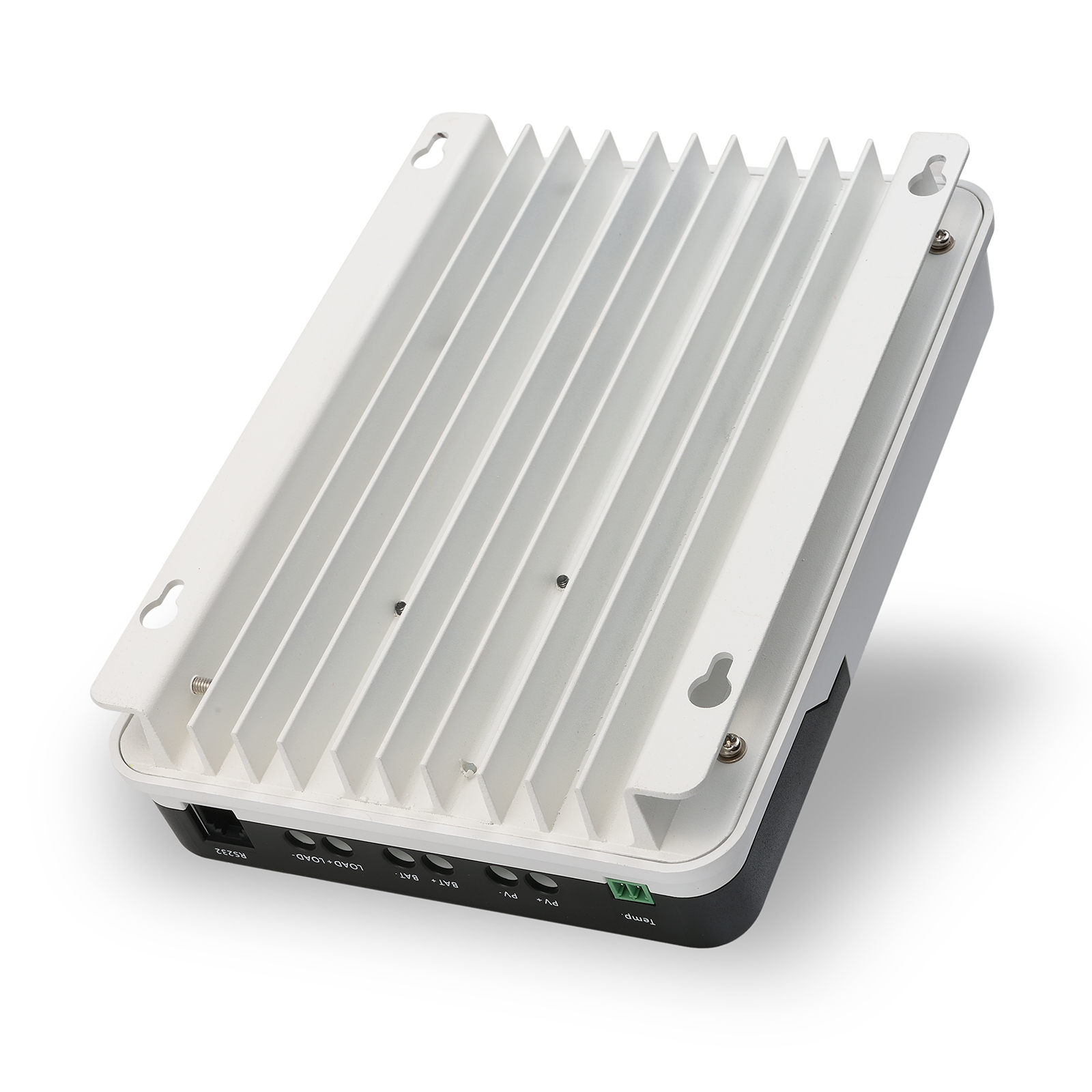

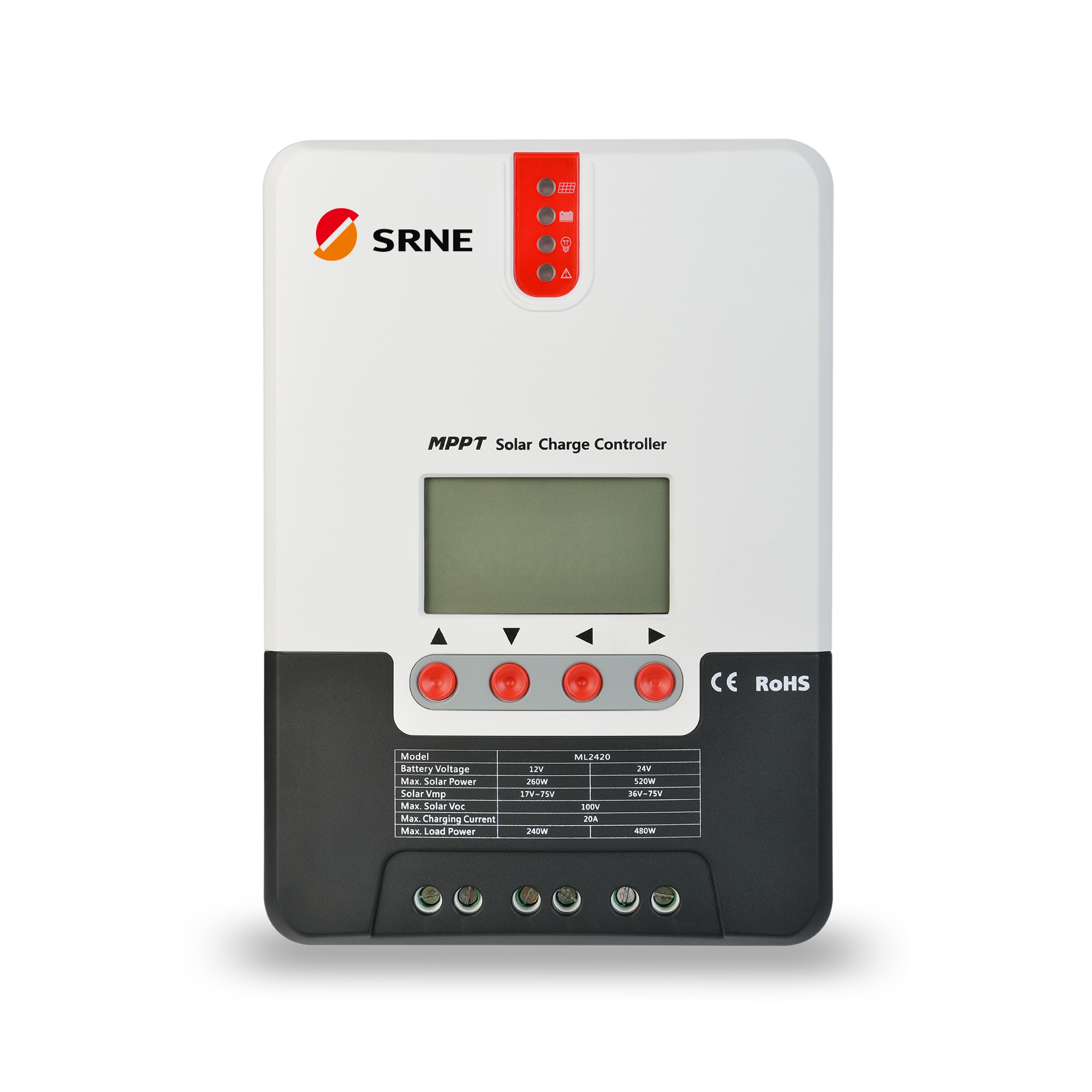

MPPT Solar Charge Controller ML2420

Description

1. With the PowerCatcher MPPT technology, the controller is able to track the maximum power point of solar panels even in a complex environment. It has higher response speed and tracking efficiency compared with those controllers with traditional MPPT technology.

2. The maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems. The charging efficiency is 15% to 20% higher than the conventional PWM method.

3. Automatic charging voltage regulation function: When there is battery open circuit or lithium battery BMS overcharge protection, the controller battery terminal will output at the rated charging voltage value.

4. MPPT tracking efficiency is up to 99.9%.

5. Advanced digital power technology raises the circuit energy conversion efficiency to 98%.

6. Support charging gel batteries, sealed batteries, abroach batteries and vented batteries, etc.

7. The controller features a limited current charging mode. When the solar panel power exceeds a certain level and charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.

8. Automatic identification of lead-acid battery voltage.

9. The controller can be connected with LCD screen or Bluetooth so that users can not only check operating data and status, but also modify the controller parameters.

10. The controller is available for standard Modbus protocol and meets different communication needs.

11. The controller has an overheat protection mechanism. When the temperature exceeds the set value, the charging current will decline in linear proportion and discharging will be shut off so as to curb the temperature rise of the controller and keep the controller from being damaged by overheat.

12. Temperature compensation functions. Charging and discharging parameters can be automatically adjusted so as to extend battery lifespan.

13. Provide solar panel short circuit protection, battery open circuit protection and TVS lightening protection, etc.

Parameter	Value
Model	ML2420	ML2430	ML2440
System voltage	12V/24VAuto
No-load loss	0.7 W to 1.2W
Battery voltage	9V to 35V
Max. solar input voltage	100V(25℃) 90V(-25℃)
Max. power point voltage range	Battery Voltage+2V to 75V
Rated charging current	20A	30A	40A
Rated load current	20A
Max. capacitive load capacity	10000uF
Max. photovoltaic system input power	260W/12V 520W/24V	400W/12V 800W/24V	520W/12V 1040W/24V
Conversion efficiency	≤98%
MPPT tracking efficiency	＞99%
Temperature compensation factor	-3mv/℃/2V（default）
Operating temperature	-35℃ to +45℃
Protection degree	IP32
Weight	1.4Kg	2Kg	2Kg
Communication method	RS232
Altitude	≤ 3000m
Product dimensions	21015159.5mm	23817372.5mm	23817372.5mm
