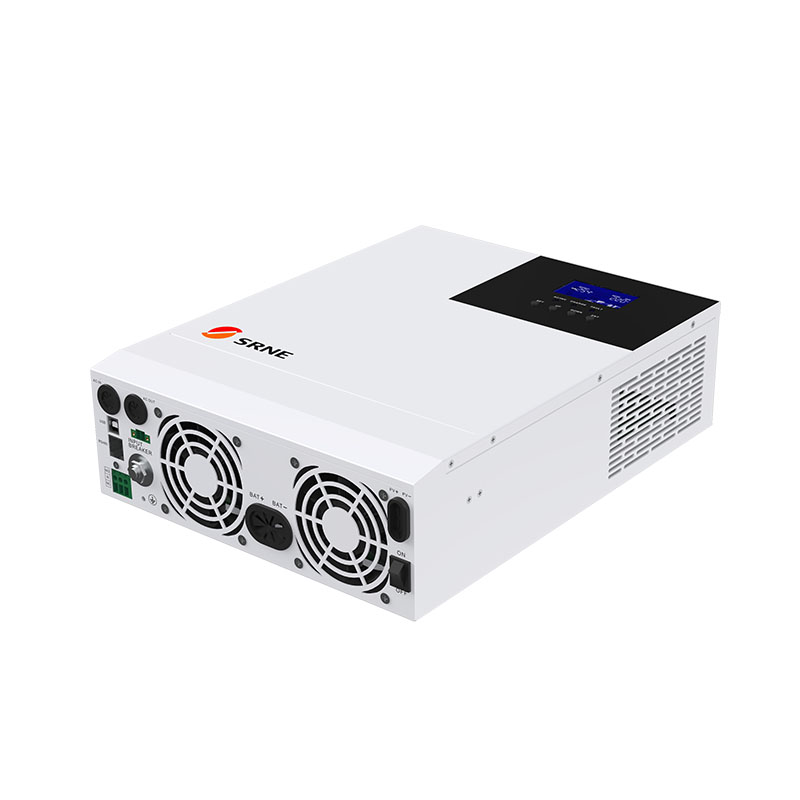

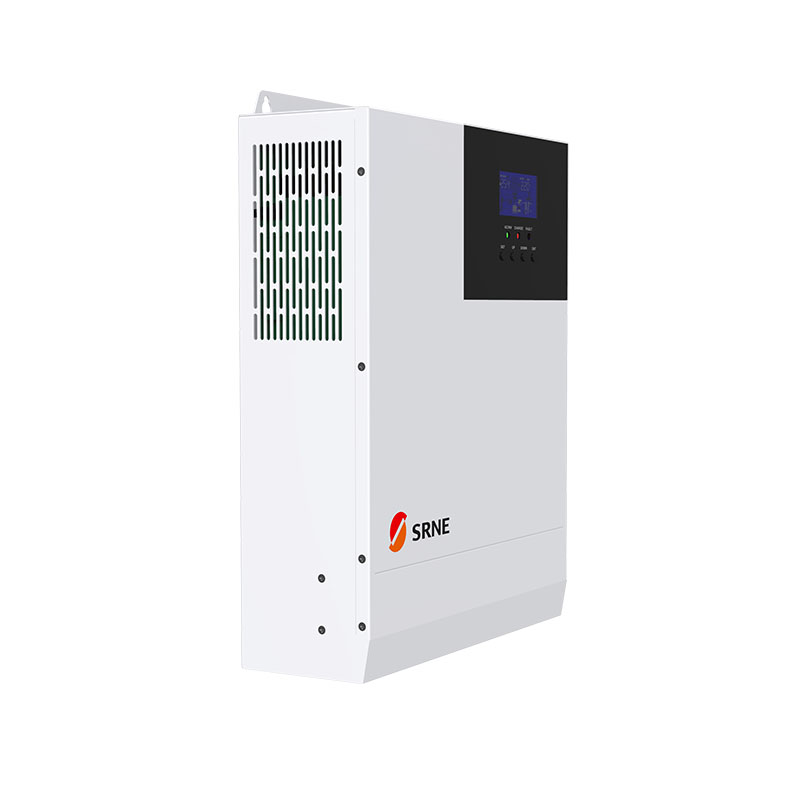

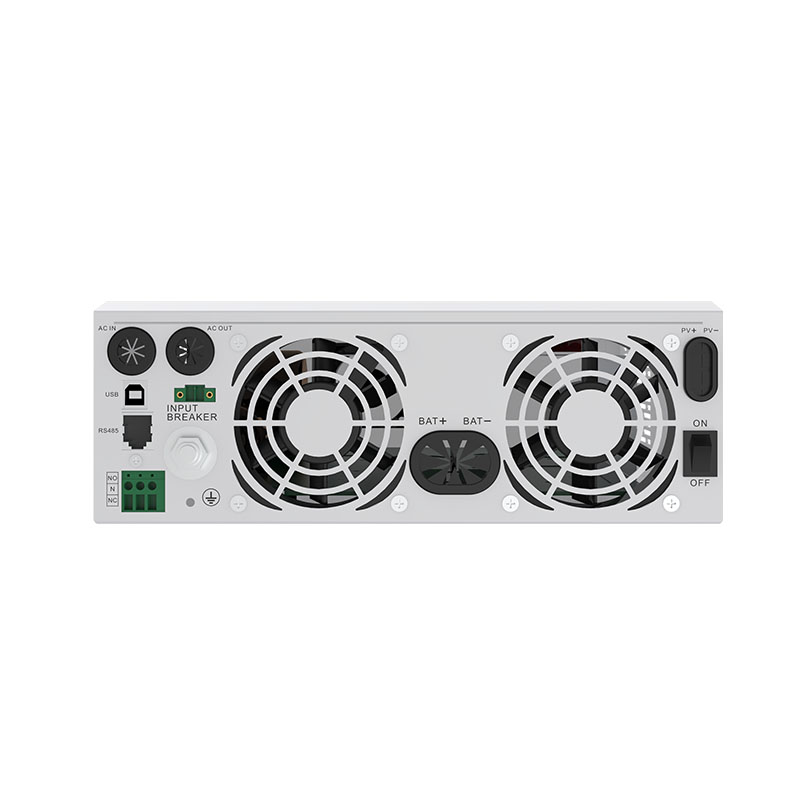

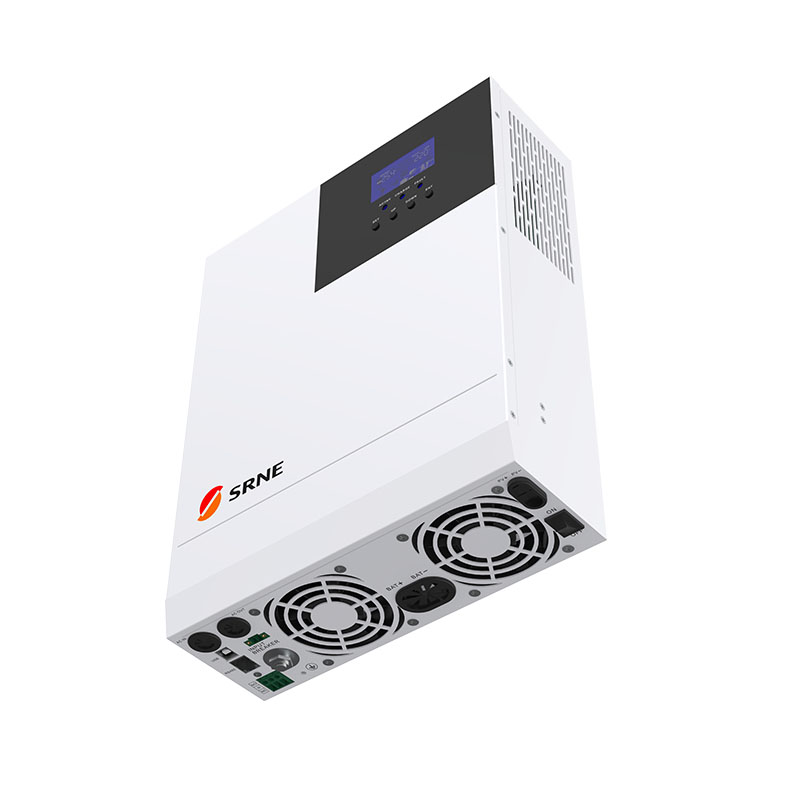

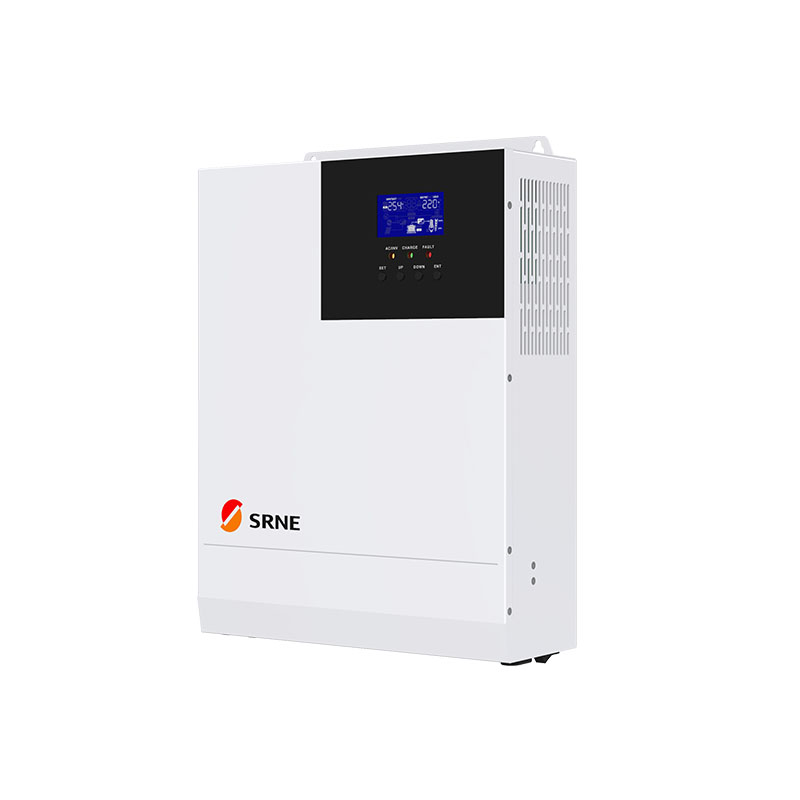

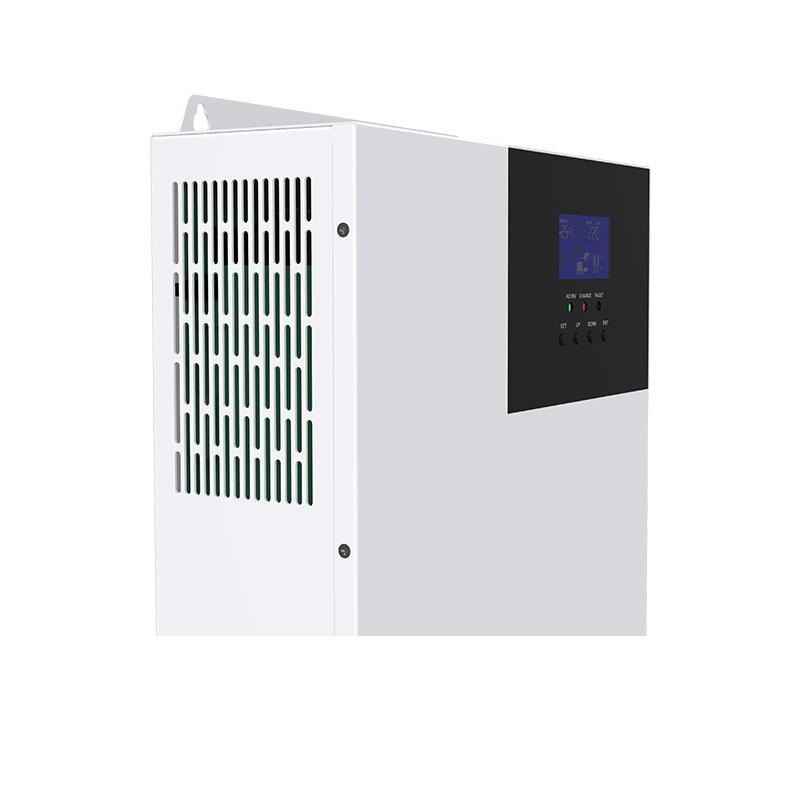

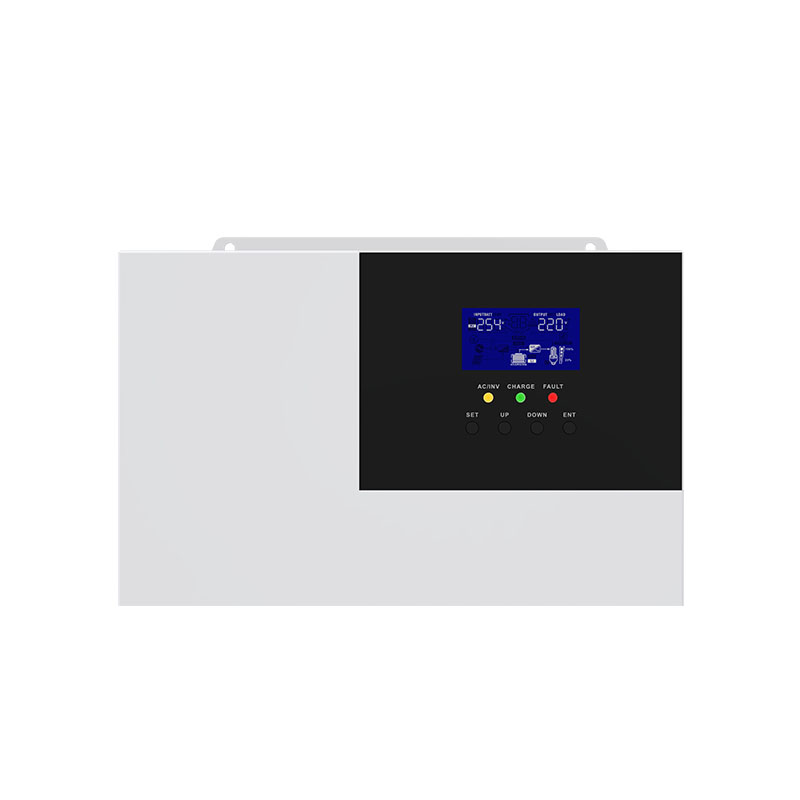

Off Grid Solar Inverter 5KW 145vdc HF4850S80 -145

Description

All-in-one solar charger inverter HF4830S60

1. It adopts full-digital double closed loop control, combined with advanced SPWM technology to output pure sine wave.

2. Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.

3. Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV&Mains Electricity hybrid charging.

4. Advanced MPPT technology with 99.9% efficiency.

5. User-defined charging parameters setting(voltage, current and mode), and suitable for various types of energy storage batteries.

6. Rocker switch for AC output control.

7. Power saving mode, reduce no-load loss.

8. Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan.

9. Lithium battery activation function, allow lead-acid battery and lithium battery access.

10. All-round protection for solar panels includes overload and short circuit protection, under-voltage and over-voltage protection and reverse polarity protection.

11. Support variety of user-friendly communication modules, such as RS485(GPRS, WiFi, Bluetooth), CAN and USB etc., and feasible to connect with computer and mobile phone to realize remote control.

Model	HF4850S80 -145
Battery Input
Battery type	Sealed、FLood、GEL、LFP、Ternary
Rated Battery Input Voltage	48V ( Minimum Startup Voltage 44V)
Hybrid Charging Maxi mum Charging Current	140A
Battery Voltage Range	40Vdc~60Vdc ± 0.6Vdc(Undervoltage Warning/Shutdown Voltage/Overvoltage Warning/Overvoltage Recovery...)
Solar Input
Maximum PV Open-circuit Voltage	145vdc
PV Working Voltage Range	60-145Vdc
MPPT Voltage Range	60-115Vdc
Maximum PV Input Current	50A
Maximum PV Input Power	4400W
Maximum PV Charging Current	80A
AC Input（generator/grid）
Mains Maximum Charging Current	60A
Rated Input Voltage	220/230Vac
Input Voltage Range	UPS Mains Mode：(170Vac~280Vac)土2% APL Generator Mode：(90Vac-280Vac)±2%
Frequency	50Hz/ 60Hz (Automatic Detection)
Mains Charging Efficiency	>95%
Switch Time (bypass and inverter)	10ms(Typical Value)
Maximum Bypass Overload Current	40A
AC Output
Output Voltage Waveform	Pure Sine Wave
Rated Output Voltage (Vac)	230Vac (200/208/220/240Vac）
Rated Output Power (VA)	5000（4350/4500/4750/5000）
Rated Output Power(W)	5000（4350/4500/4750/5000）
Peak Power	10000VA
On-load Motor Capacity	4HP
Output Frequency Range(Hz)	50Hz土0.3Hz/60Hz±0.3Hz
Maximum Efficiency	>92%
No-load Loss	Non Energy-saving Mode: ≤50W Energy-saving Mode：≤25W (Manual Setup）
General
Certificate	CE(IEC 62109-1)
EMC Certification Level	EN61000, C2
Working Temperature Range	-15°C ~ 55°C
Storage Temperature Range	-25°C ~ 60°C
Humidity Range	5% to 95%(Conformal Coating Protection)
Dimensions	426mm322mm124mm
Weight (KG)	10.8

solar charger inverter Authentications

Instructions:

HFP48-145 User Manuel

Specification:

HF4850S80-145-Datasheet

FAQ:

Q1: What kind of certificates you have for your solar controllers ?

SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.

Q2: Are you a manufacturer or trading company?

SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and manufacturing as one with PV controller,PV inverter,PV energy storage oriented.And we have our own factory.

Q3: Can I buy one sample for testing?

SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can help u fix any technicial problem or confusion.

Q4: How are about the delivery?

SRNE:

Sample:1-2 working days

Order: within 7 working days depending on the order quantities

OEM Order:4-8 working days after confirming the sample

Q5: How're about your customers service?

SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the defective rate is below 0.1%.we do try our best to provide a good customer service.

Q6:Minimum Order Quantity?

SRNE:Be equal or greater than 1 piece.
