SR-EOS is a new generation of household energy storage system with LFP batteries which can meet the diversified needs of global users. The SR-EOS energy storage system adopts a modular design, including power modules and ensures more than 6000 cycles with 80% DOD, so it can be easily combined into a system of any capacity required by the user.

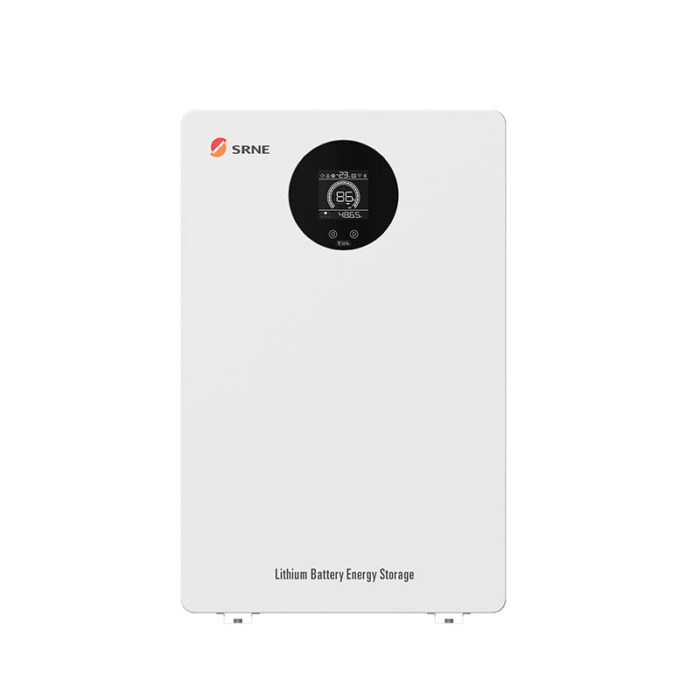

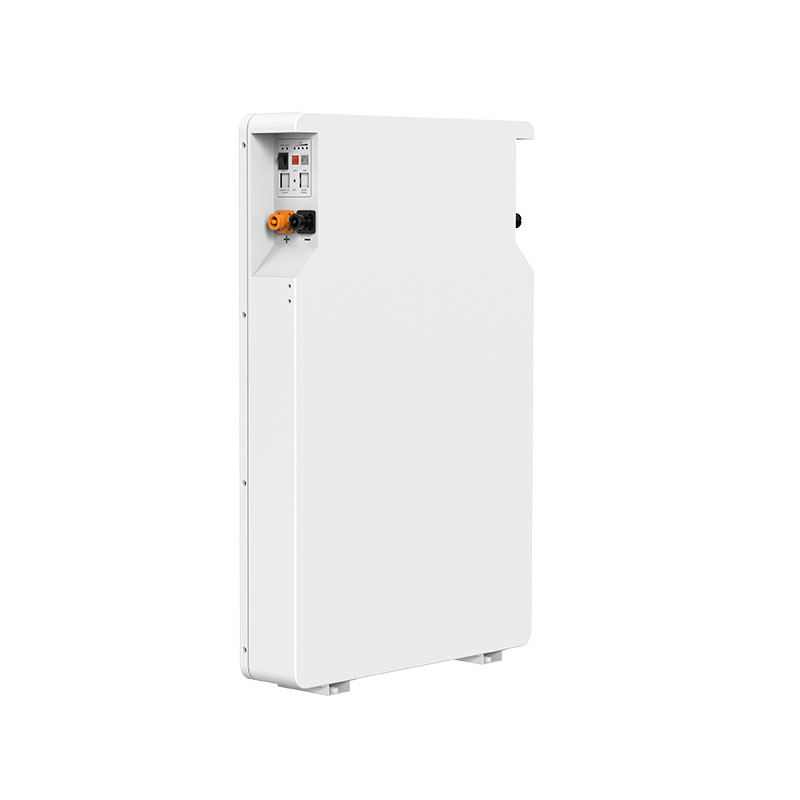

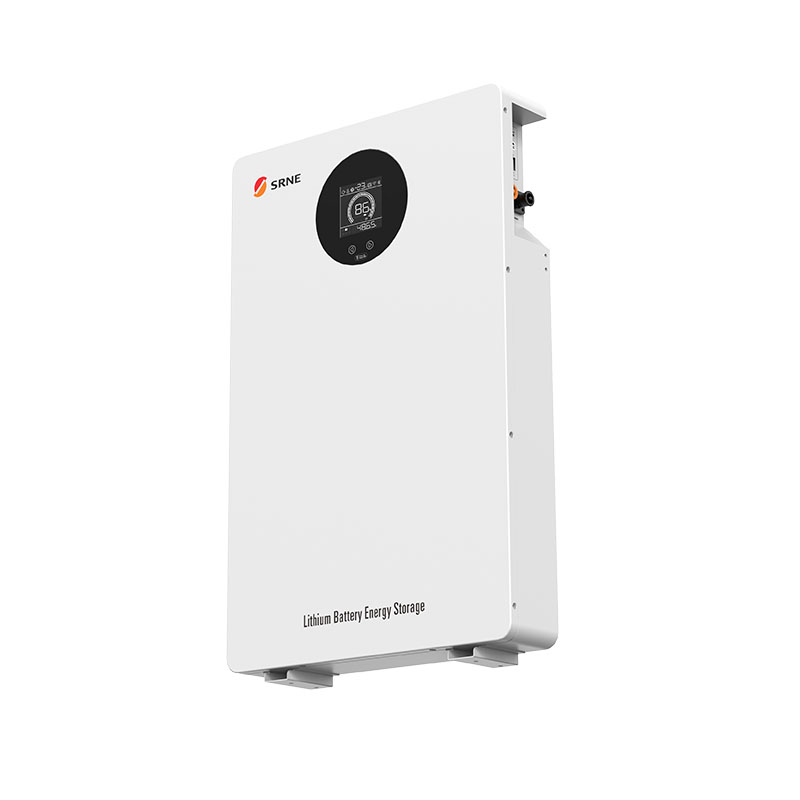

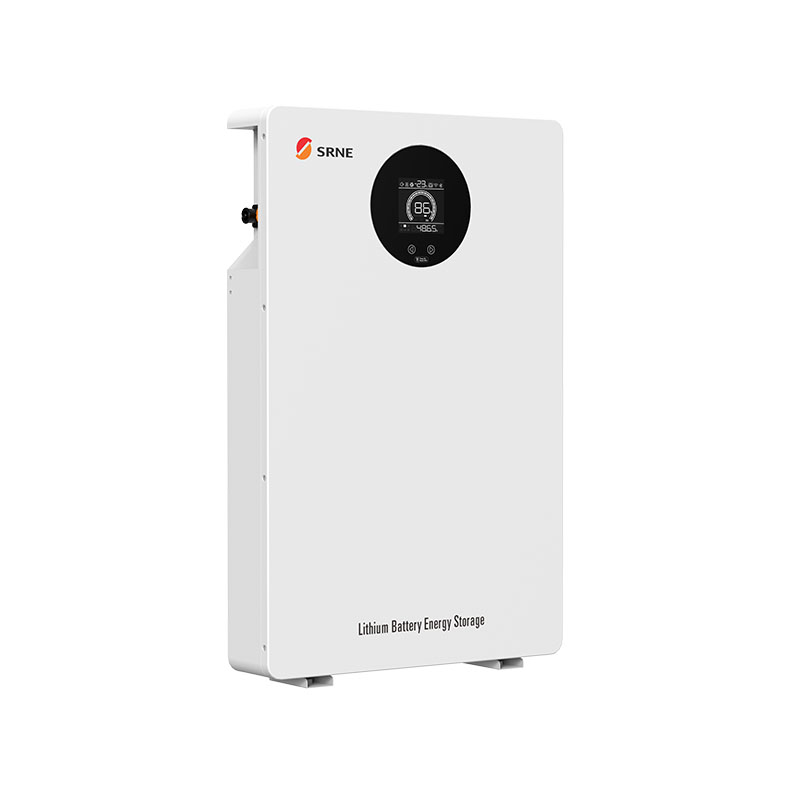

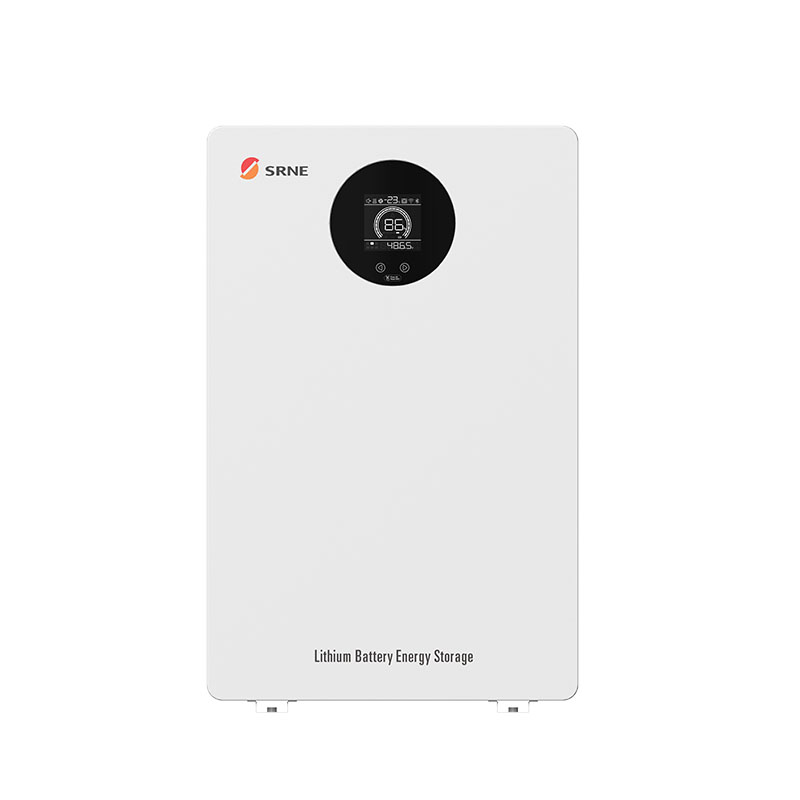

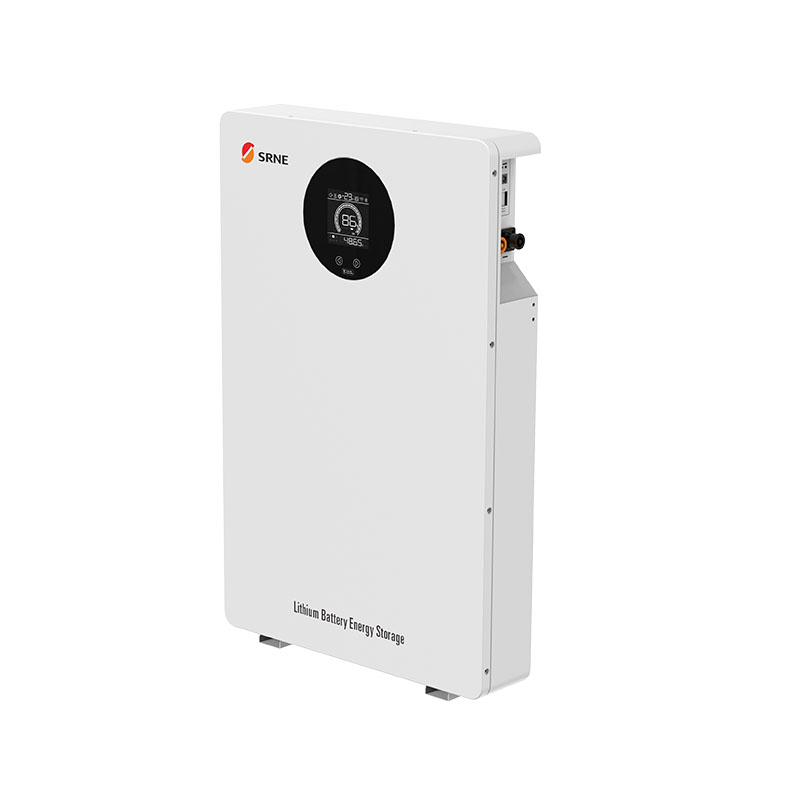

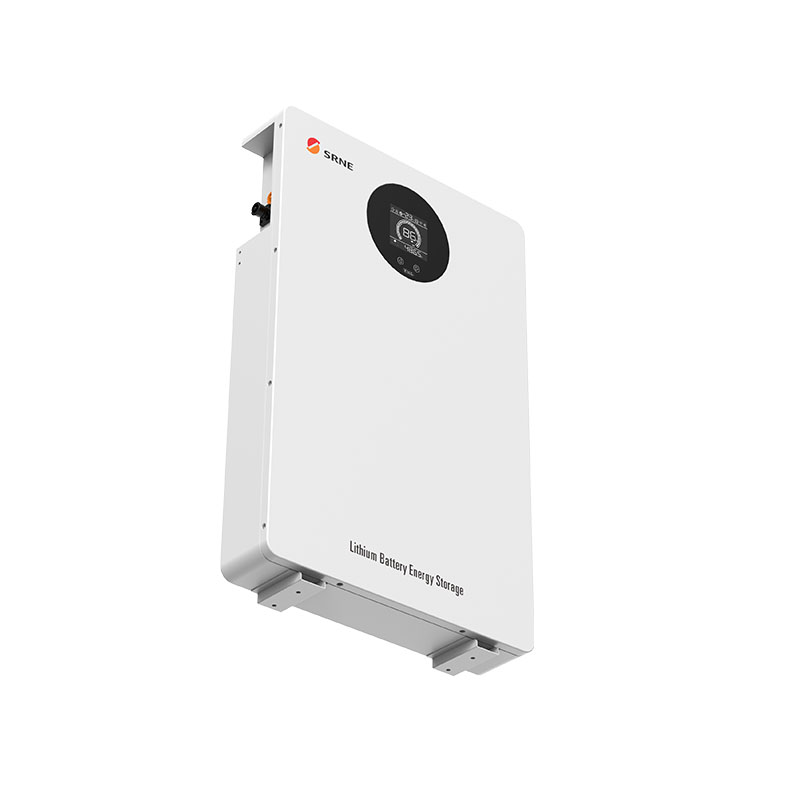

5kWh Solar Home Energy Storage Lithium Battery EOS05B
Description
1、Long life with more than 6000 cycles with 80% DOD.
2、Small size, stylish design, easy to install.
3、Each battery with independent BMS system manages power output smartly and effectively.
4、Up to 9 in parallel connection, expand to 46.08kWh
5、Compatible with most of the available hybrid inverters.
| Product model | EOS05B |
| Rated voltage | 51.2V |
| Rated capacity | 100Ah |
| Rated energy | 5.12kWh |
| Weight | 52kg |
| Dimentions（L*W*H） | 620*450*140mm |
| Battery type | LFP |
| Life time(25℃) | 20 Years |
| Life cycles（80% DOD,25℃） | 6000 Cycles |
| Max.charging voltage | 57.6V |
| Over discharge voltage | 44.8V |
| Constant charging current | 100A |
| Constant discharging current | 100A |
| Peak charging current | 110A（3S） |
| Peak discharging current | 110A（3S） |
| Max.Number of parallel | 9 |
| Communication interfaces | CAN/RS232/RS485 |
| Lithium Battery Standard | UN38.3,MSDS,EN55032,EN55024, |
| Storage time / temperature | 6 months @25℃;3 months @35℃;1 months @45℃; |
| Charging temperature range | 0～45℃ |
| Discharging temperature range | -10～45℃ |
| Cooling method | Natural cooling |
| Enclosure protection rating | IP30 |
| Operation Environment | Indoor |
solar charger inverter Authentications
Instructions:
FAQ:
Q1: What kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.
Q2: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and
manufacturing as one with PV controller,PV inverter,PV energy storage oriented.And we
have our own factory.
Q3: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can
help u fix any technicial problem or confusion.
Q4: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order:4-8 working days after confirming the sample
Q5: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the
defective rate is below 0.1%.we do try our best to provide a good customer service.
Q6:Minimum Order Quantity?
SRNE:Be equal or greater than 1 piece.
