PWM Solar Universal Controller SL2420
Smart PWM Solar Charge Controller
The product is suitable for : SL2410/SL2420

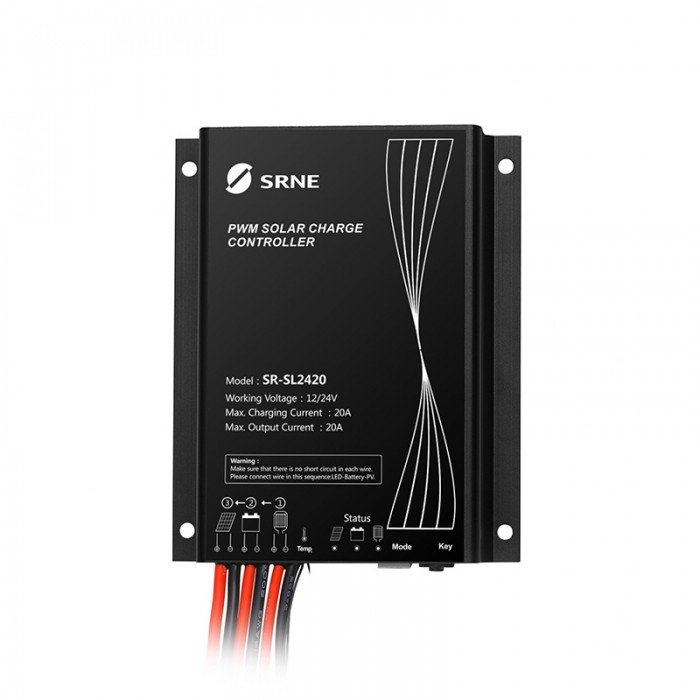

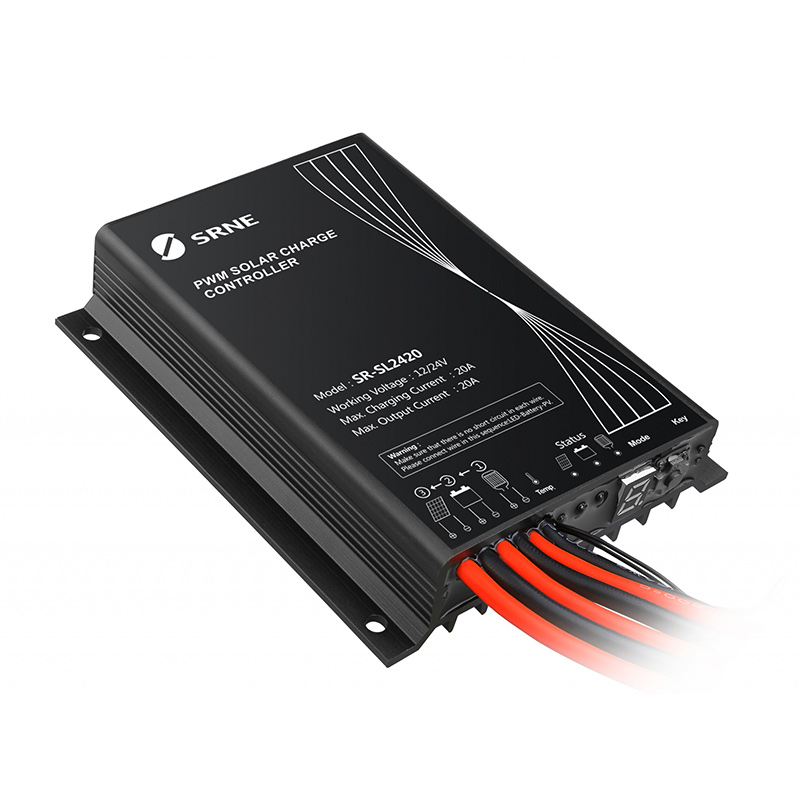

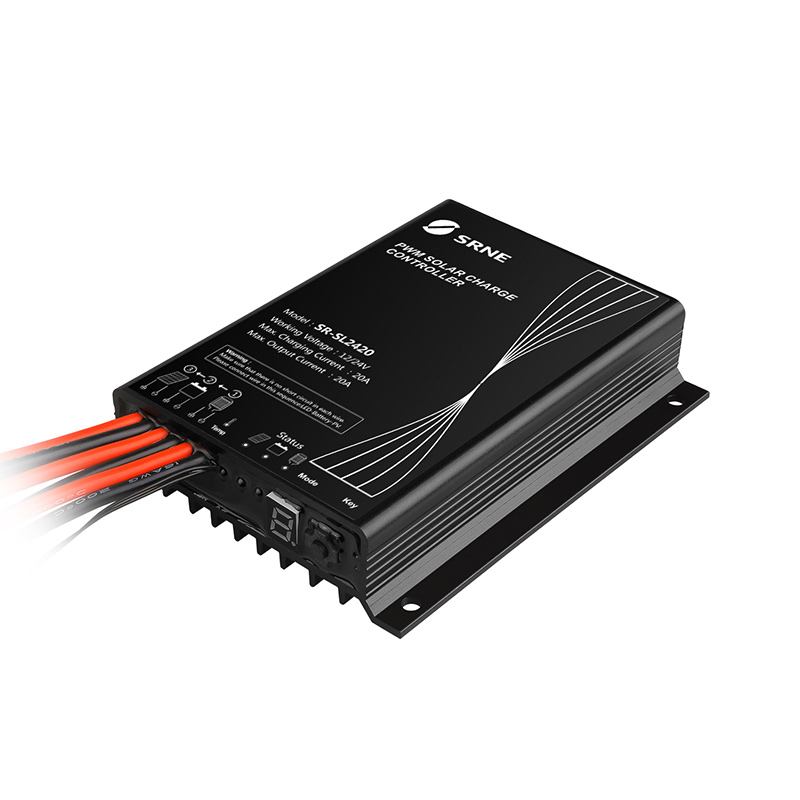

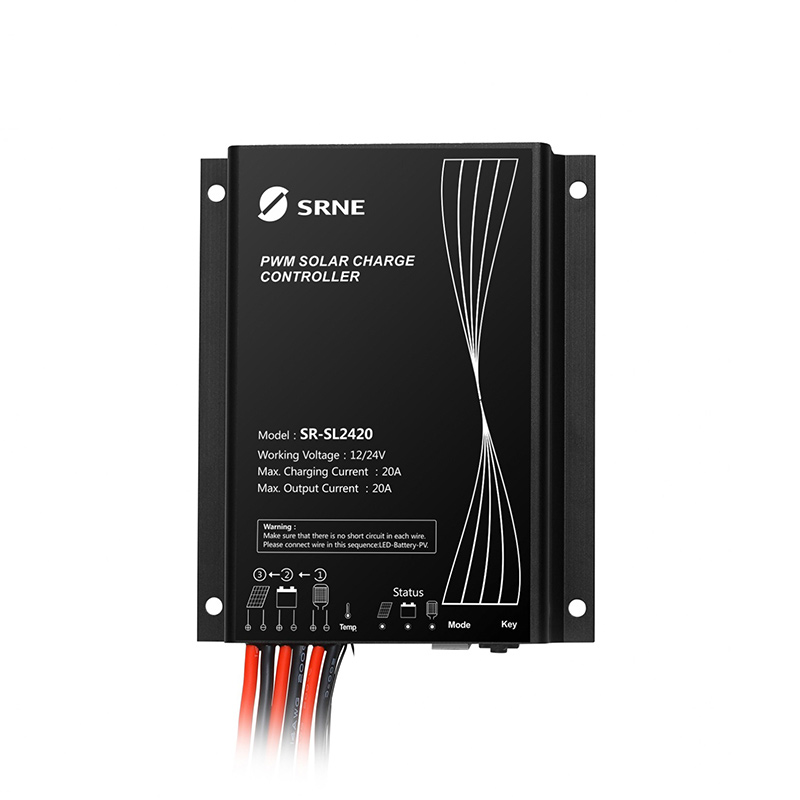

PWM Solar Universal Controller SL2420
Description
1. The design of IP68 waterproof level and aluminum shell helps effectively prevent corrosion.
2. System voltage: 12V/24V.
3. With LED digital display screen and waterproof switch.
4. An upgraded 3-stage PWM charging algorithm is adopted. Overdischarge or application of an equalizing charging to the battery regularly can effectively prevent the battery from non-equalization and sulfuration and extend the lifespan of battery.
5. Five load working modes facilitate the product's application to different types of street lights and monitoring devices.
6. Support charging sealed batteries, gel batteries, abroach batteries, ternary-material lithium batteries and lithium iron phosphate batteries, etc.
7. An external temperature sensor: high-precision temperature compensation function.
8. Parameters that have been set will be saved even there is power-down, which makes the setting easy and convenient.
9. Designed with status indicators.
10. Provide overcharge, over-discharge and overload protectionshort-circuit and reverse-connection protection.
11. TVS lightening protection.
| Battery type | Sealed | GEL | Flooded | Ternary-material lithium | Lithium iron phosphate | |
| System current | 10A;20A | |||||
| No-load loss | 10mA/12V;13mA/24V | |||||
| Solar energy input voltage | < 55V | |||||
| System voltage | 12V/24V Auto | 12V/24V Auto | 12V/24V Auto 3 | and 4 strings: 12 V syste 7 strings: 24 V system | m 4 strings: 12 V system 8 strings: 24V system | |
| Overvoltage protection | 17.0V | 17.0V | 17.0V | 4.2V*N+2.0V | 3.65V*N+2.0V | |
| Equalizing charging voltage | 14.6V | — | 14.8V | — | — | |
| Boost charging voltage | 14.4V | 14.2V | 14.6V | — | — | |
| Floating charging voltage | 13.8V | 13.8V | 13.8V | — | — | |
| Overcharge voltage | — | — | — | 4.2V*N | 3.65V*N | |
| Overcharge recovery | — | — | — | 3.9V*N | 3.4V*N | |
| Boost charging recovery voltage | 13.2V | 13.2V | 13.2V | — | — | |
| Over-discharge recovery voltage | 12.5V | 12.5V | 12.5V | 3.3V*N | 3.0V*N | |
| Undervoltage | 12.0V | 12.0V | 12.0V | 3.2V*N | 2.8*N | |
| Over-discharge voltage | 11.0V | 11.0V | 11.0V | 3.0V*N | 2.5V*N | |
| Temperature compensation | -4.0mv/℃/2V | -4.0mv/℃/2V | -4.0mv/℃/2V | — | — | |
| Equalizing charging duration | 1hour | — | 1hour | — | — | |
| Boost charging duration | 4hours | 4hours | 4hours | — | — | |
| Light controlled voltage | Light controlled on 5 V, light controlled off 6 V | |||||
| Light control judgment time | 1min | |||||
| Overload and short-circuit protection | 1.25 times of rated current: 30 s; 1.5 times of rated current: 5 s of overload protection; Over 3 times of rated current: short-circuit protection. | |||||
| Operating temperature | -35℃ to +65℃； | |||||
| Protection degree | IP68 | |||||
| Weight | 140g(10A) | 300g(20A) | ||||
| Dimensions | 82×58×20(mm)/10A | 82×100×20(mm)/20A | ||||
