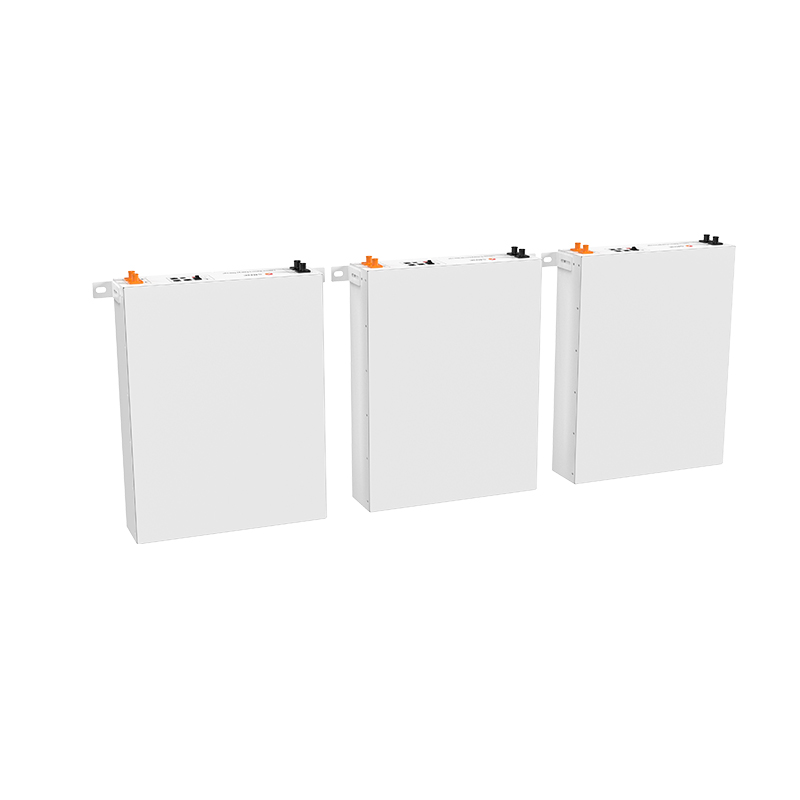

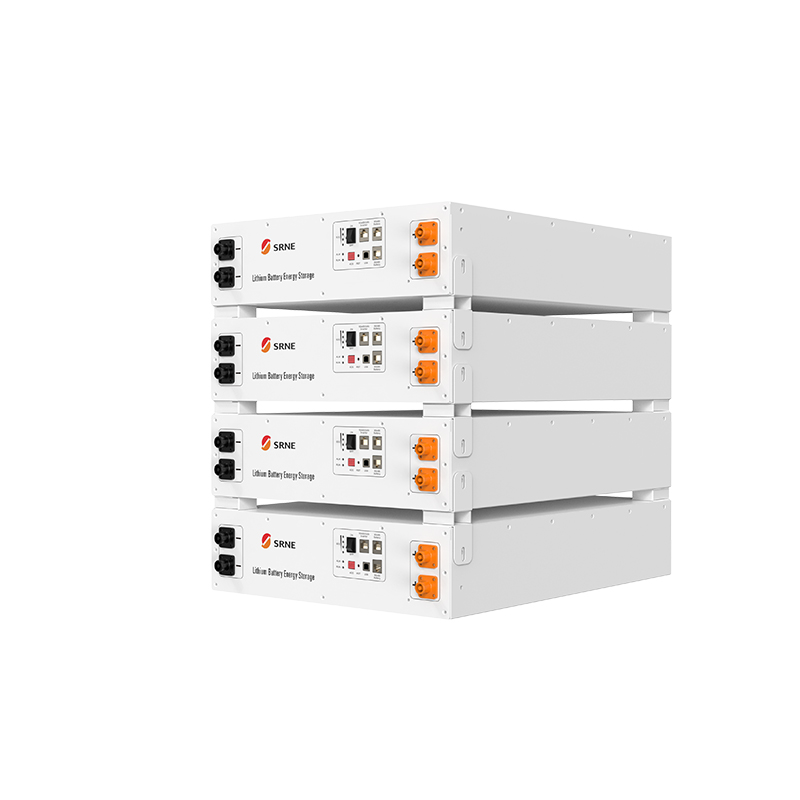

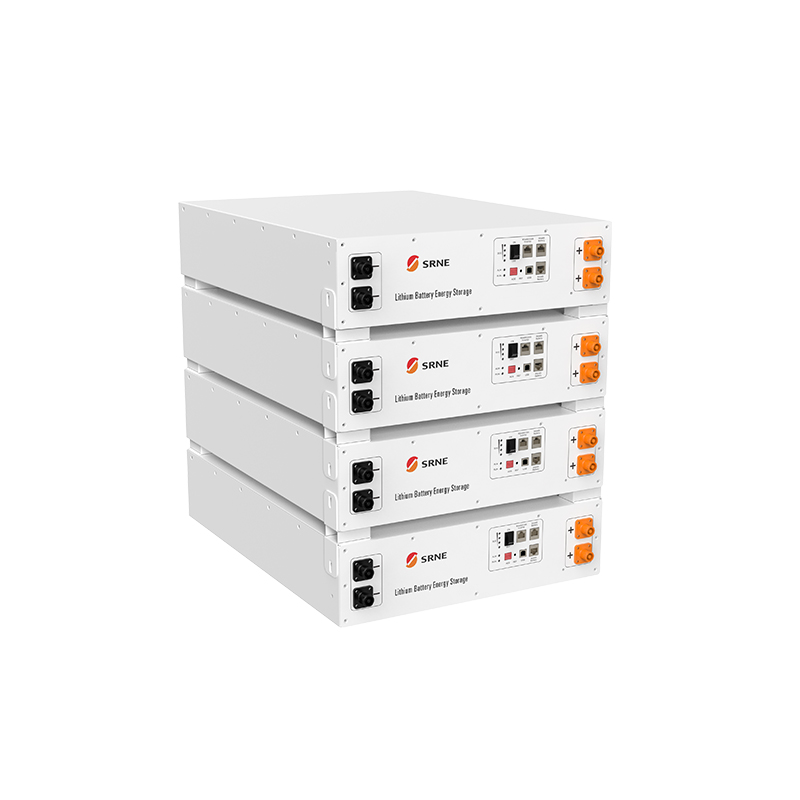

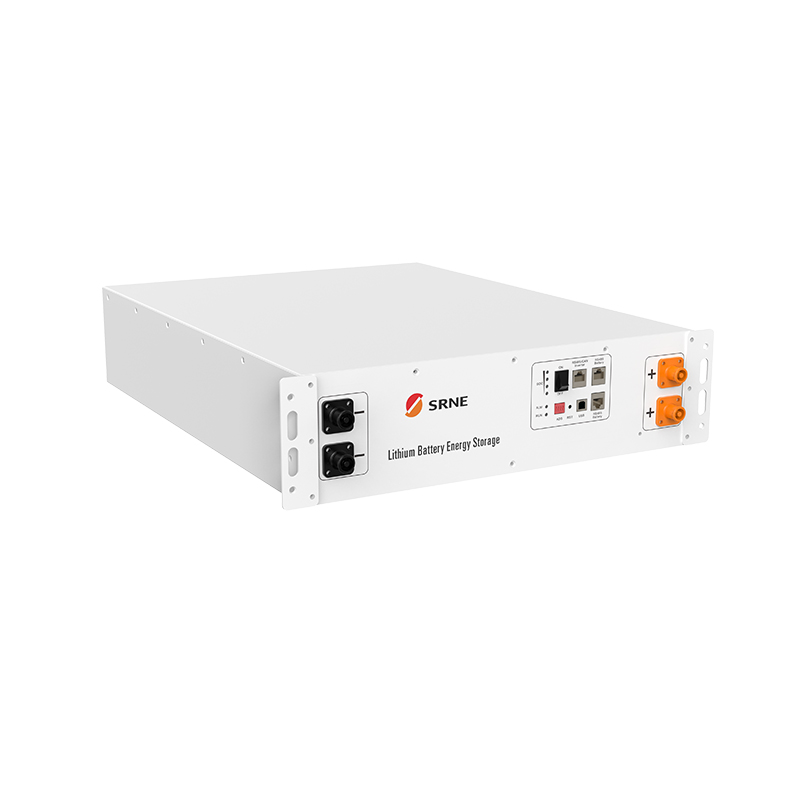

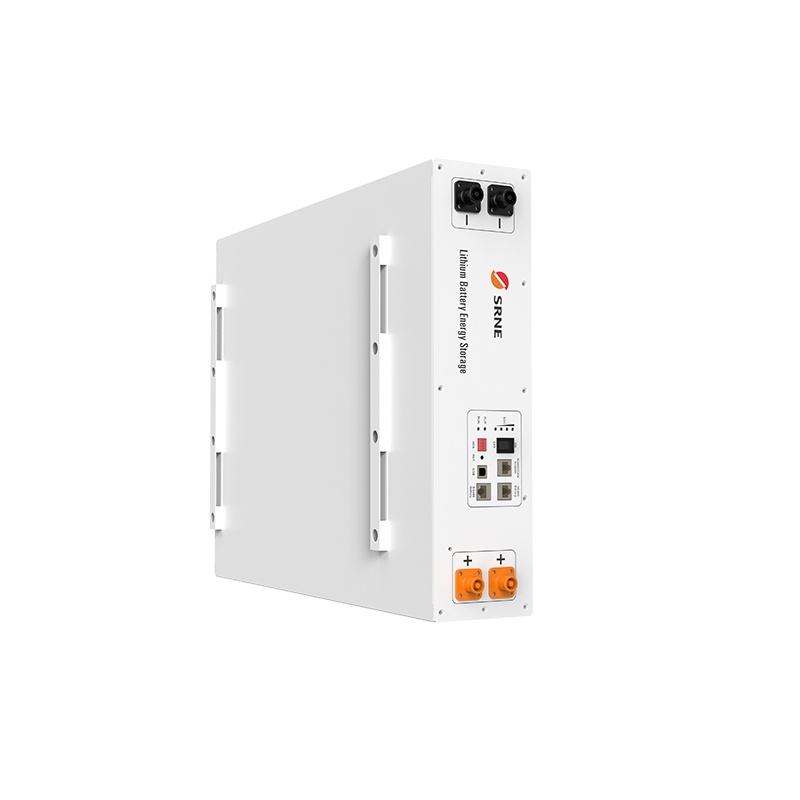

The lithium iron phosphate batteries with high performance and long service life are used in the energy
storage module. Meanwhile, the modular structure design is adopted. Each energy storage module is internally
integrated with the intelligent BMS system, which can be easily expanded and can be combined into 45Kwh
battery pack at most.
The battery storage can be combined with SRNE brand inverter to form an on-grid or off-grid photovoltaic
system, which can solve the problem of electricity consumption in areas without electricity.
| MODEL | SR-EOC05B |
| MAIN INFO |
| Rated Voltage | 51.2V |
| Rated Capacity | 100Ah |
| Battery Power | 5.12kWh |
| Battery Type | LFP |
| Crycling Lifespan | 6000 (80%DOD,0.2C,25°C) |
| Lifetime | 20 years |
| Max. Parallel Capacity | 9 units |
| CHARGE&DISCHRAGE |
| Max. Charging Voltage | 57.6V |
| Over Discharging Voltage | 44.8V |
| Standard charge current | 50A |
| Max. Charging Current | 100A (1C) |
| Peak Charging Current | 110A (1.1C,3s) |
| Standard discharge current | 50A |
| Max. Discharging Current | 100A (1C) |
| Peak Discharging Current | 110A (1.1C,3s) |
| GENERAL |
| Weight | 45kg （99.2lb） |
| Dimension（L*W*H） | 580*446*120mm （1.9*1.46*0.39ft） |
| Communication | CAN / RS485 / USB / |
| Storage Condition | 6 months@25°C/77°F，3 months@35°C/95°F，1 month@45°C/113°F |
| Charging Temp. Range | 0～45℃ |
| Discharging Temp. Range | -10～45℃ |
| Cooling Method | Neutral Cooling |
| Protection Grade | IP30 |
| STANDARD |
| Transportation | UN38.3,MSDS |
| Safety | IEC 62619: 2017,EN IEC 61000-6,UL1973 |
