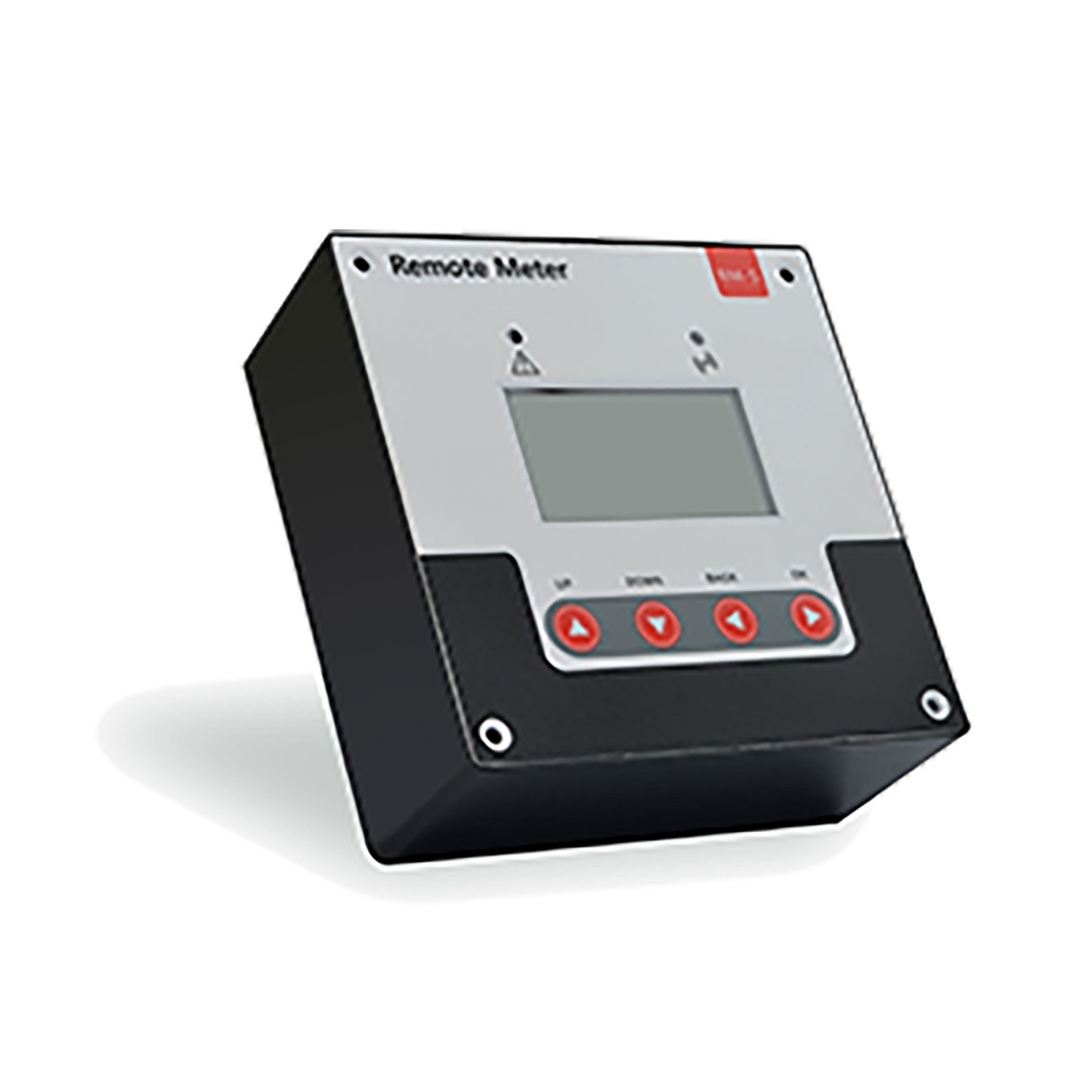

RM Series LCD Unit (RM-5)

LCD Display Unit User Manual

The product is suitable for ML series



1. Adopts a 128*64 LCD screen with the menu designed with numeric and graphic forms.
2. With a graphical design, the main menu is artistic as well as informative.It can display up to 10 parameters and status.
3. Displays the historical data of a certain day.
4. Adopts BLE 4.0 technology, it can match with mobile phone APP.
5. Two indicator lights indicate controller fault and communication errors respectively.
6. Features a controller fault voice alarm function which can be switched on/off when needed.
7. Backlight time setting function.
8. Able to monitor live data and operating status of the controller.
9. It is available for standard Modbus protocol.
10. The interface type is standard RJ12.
11. It can be powered through the communication port and external power supply is of no need.
12. With an industrial grade design, the product can function well in various tough situations.



Stand-by power consumption

LCD backlight on<35mA/12V

LCD backlight off<25mA/12V

Communication interface

RJ12 (6-PIN)

Baud rate


Communication port


Operating temperature


Product weight

-35℃ TO+65℃;


115.82×115.82 (MM) (L×W)
