HF Series

Off-Grid Inverters

3-5KW | Single/Split/Three Phase | 1 MPPT
Download PDF Contact

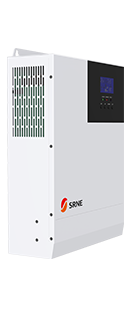

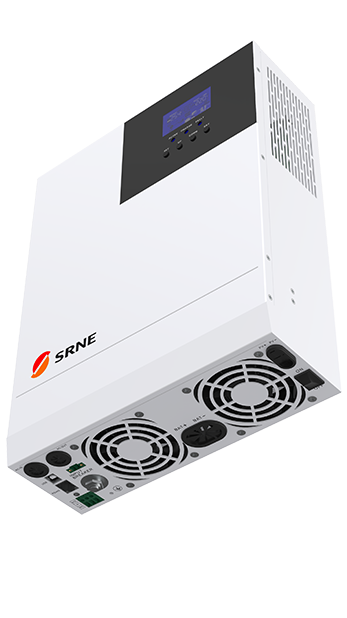

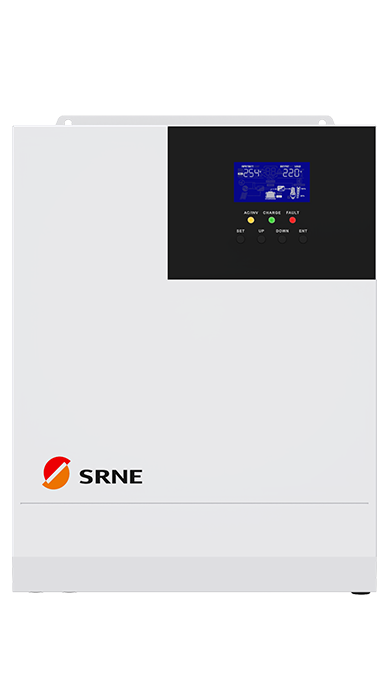

HF/HFP Series 3-5KW
Home | Solar Storage Inverters| Off-Grid Inverters

Efficiency

Advanced MPPT with up to 99.9% efficiency.Multiple charge and discharge modes are available

Reliable

Outputs high-quality pure sine wave AC power.Reliable output for long periods at rated power.

Safety

360 degrees of security from hardware to software.With IEC， SAA， cETL ，FCC certification.

User-Friendly

Industrial design with a modern aesthetic look.Easy to install and simple to use.

All in one

Support for many types of batteries.Supports Li-ion battery BMS communication.

Intelligent

Exclusive Li-ion battery BMS dual activation.Support for remote monitoring of operating parameters.

OVERVIEW

3kw 5kw off grid inverter (5).png
Model
HF2430S80-H
Rated Output Power
3,300W
Max.Peak Power
6,000VA
Rated Output Voltage
230Vac
Load Capacity of Motors
2HP
Rated AC Frequency
50Hz/60Hz
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
500Vdc
Model
HF4850S80-H
Rated Output Power
5,000W
Max.Peak Power
10,000VA
Rated Output Voltage
230Vac
Load Capacity of Motors
4HP
Rated AC Frequency
50Hz/60Hz
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
500Vdc
Model
HF2430S60-100
Rated Output Power
3,000W
Max.Peak Power
6,000VA
Rated Output Voltage
230Vac
Load Capacity of Motors
2HP
Rated AC Frequency
50Hz/60Hz
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
100Vdc
Model
HF4830S60-145
Rated Output Power
3,000W
Max.Peak Power
6,000VA
Rated Output Voltage
230Vac
Rated AC Frequency
50Hz/60Hz
Load Capacity of Motors
2HP
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
145Vdc
Model
HF4850S80-145
Rated Output Power
5,000W
Max.Peak Power
10,000VA
Rated Output Voltage
230Vac
Rated AC Frequency
50/60Hz
Load Capacity of Motors
4HP
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
145Vdc
Model
HF2430U80-H
Rated Output Power
3,000W
Max.Peak Power
6,000VA
Rated Output Voltage
120Vac
Rated AC Frequency
50/60Hz
Load Capacity of Motors
2HP
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
500Vdc
Model
HF4835U60-H
Rated Output Power
3,500W
Max.Peak Power
7,000VA
Rated Output Voltage
120Vac
Rated AC Frequency
50/60Hz
Load Capacity of Motors
2HP
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
500Vdc
Model
HF4850U80-H
Rated Output Power
5,000W
Max.Peak Power
10,000VA
Rated Output Voltage
120Vac
Load Capacity of Motors
4HP
Rated AC Frequency
50Hz/60Hz
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
500Vdc
Model
HF2430U60-100
Rated Output Power
3,000W
Max.Peak Power
6,000VA
Rated Output Voltage
120Vac
Load Capacity of Motors
2HP
Rated AC Frequency
50Hz/60Hz
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
100Vdc
Model
HF4830U60-145
Rated Output Power
3,000W
Max.Peak Power
6,000VA
Rated Output Voltage
120Vac
Rated AC Frequency
50/60Hz
Load Capacity of Motors
2HP
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
145Vdc
Model
HF4835U80-145
Rated Output Power
3,500W
Max.Peak Power
6,000VA
Rated Output Voltage
120Vac
Rated AC Frequency
50/60Hz
Load Capacity of Motors
2HP
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
145Vdc
Model
HFP4850S80-H
Rated Output Power
5,000W
Max.Peak Power
10,000VA
Rated Output Voltage
230Vac
Rated AC Frequency
50/60Hz
Load Capacity of Motors
4HP
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
500Vdc
Model
HFP4850S80-145
Rated Output Power
5,000W
Max.Peak Power
10,000VA
Rated Output Voltage
230Vac
Rated AC Frequency
50/60Hz
Load Capacity of Motors
4HP
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
145Vdc
Model
HFP4835U80-145
Rated Output Power
3,500W
Max.Peak Power
6,000VA
Rated Output Voltage
120Vac
Rated AC Frequency
50/60Hz
Load Capacity of Motors
2HP
Num. of MPPT Trackers
1
Max.Voltage of Open Circuit
145Vdc

Download

Datasheet
User Manual
Certificate

SRNE_HF series_LV_US_solar charge inverter_datasheet_2.0

PDF - 3M - Updated Tuesday, July 18, 2023

SRNE_HF series_HV_US_solar charge inverter_datasheet_2.0

PDF - 3M - Updated Tuesday, July 18, 2023

SRNE_HF series_LV_EU_solar charge inverter_datasheet_2.0

PDF - 2M - Updated Tuesday, July 18, 2023

SRNE_HF series_HV_EU_solar charge inverter_datasheet_2.1

PDF - 2M - Updated Thursday, August 31, 2023

HF24 U-100 manual

PDF - 2M - Updated Tuesday, July 18, 2023

HF48 U-145-manual

PDF - 2M - Updated Tuesday, July 18, 2023

HF4830S60+U60-145-manual

PDF - 2M - Updated Tuesday, July 18, 2023

HF series_24V_3kW_H_solar charge inverter_manual_1.1

PDF - 2M - Updated Tuesday, July 18, 2023

HFseries-HV_3.5-5kW_U_solar charger inverter_manual_1.0

PDF - 2M - Updated Tuesday, July 18, 2023

HF24 S-100 manual

PDF - 2M - Updated Tuesday, July 18, 2023

HF48 S-145-manual

PDF - 2M - Updated Tuesday, July 18, 2023

24V EMC-EN61000 Certification

PDF - 769KB - Updated Tuesday, July 18, 2023

24V LVD-IEC62109 Certification

PDF - 466KB - Updated Tuesday, July 18, 2023

CE-EMC-EN61000 Certification

PDF - 2M - Updated Tuesday, July 18, 2023

CE-LVD-IEC62109 Certification

PDF - 463KB - Updated Tuesday, July 18, 2023
