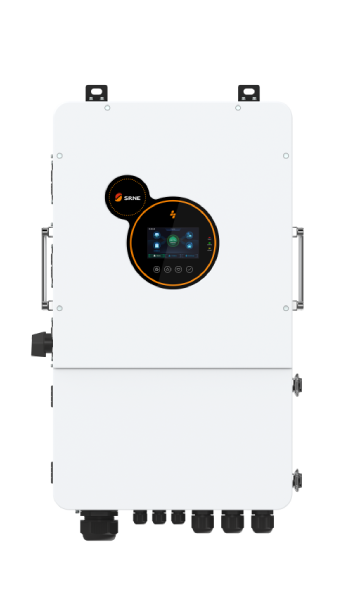

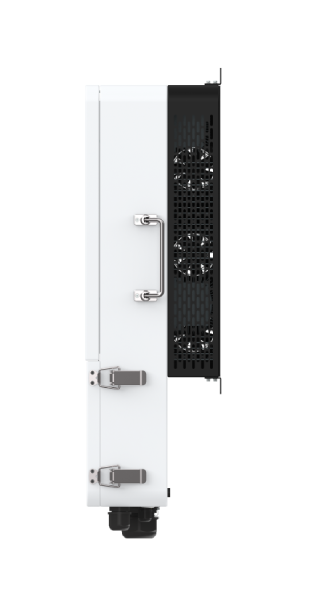

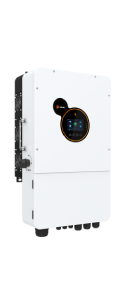

HESP 8-12kW

Single Phase Low Voltage Hybrid Inverter

Split-Phase Hybrid Solar Storage Inverter
Download PDF Contact
HESP 8-12kW-US
Home | Residential Hybrid Inverter| Single Phase Low Voltage Hybrid Inverter

Efficient

2 efficient, independent MPPT ports
hybrid inverter
hybrid solar inverter

Waterproof protection

IP65 waterproof protection degree

User-friendly

Compatible with 48V storage batteries
hybrid inverter

Safety

Separate generator port

All-in-one

Support AC-coupling

Intelligent

Support time-slot function for peak-valley

OVERVIEW

hybrid inverter
Model
HESP4880U200-H
Rated Output Power
8800W
Max. Peak Power
17,600W
Load Motor Capacity
5HP
Rated Frequency
50/60Hz
Rated Battery Voltage
48Vdc
Battery Voltage Range
40～60Vdc
Max. PV Input Power
5500W/5500W
Model
HESP48100U200-H
Rated Output Power
10000W
Max. Peak Power
20000W
Rated Output Voltage
120/240Vac (Split-phase)；120/208Vac (Three-phase)
Load Motor Capacity
6HP
Rated Frequency
50/60Hz
Rated Battery Voltage
48Vdc
Max. PV Input Power
6600W/6600W
Model
HESP48120U200-H
Rated Output Power
240V|12000W/208V|10400W
Max. Peak Power
240V|24000W/208V|20800W
Rated Frequency
50/60Hz
Load Motor Capacity
6HP
Rated Battery Voltage
48Vdc
Battery Voltage Range
40～60Vdc
Max. PV Input Power
6600W/6600W
