BP Series

Accessories

12/24/36/48V | 60-100A
BP Series 60-100A

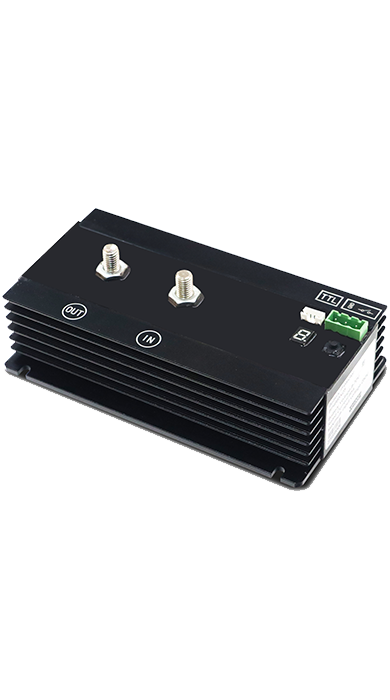

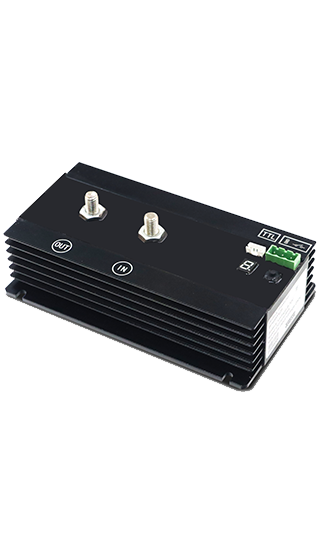

BP Series 60-100A Battery Protector

For off-grid application

Can be connected to both PV 、battery and load.Multiple load operating modes to meet diverse needs.
BP Series 60-100A Battery Protector

Intelligent

Supports multiple battery types.Highly integarted, helps you save space and wire.
BP Series 60-100A Battery Protector

User-Friendly

Easy to install and simple to use.With large LCD screen.
BP Series 60-100A Battery Protector

Reliable

Equipe with dual MOS anti-backflow circuit.Supports TTL communication of standard modbus protocol.
BP Series 60-100A Battery Protector

Safety

Complete multi-stage PWM charging management.360 degrees of security from hardware to software.
BP Series 60-100A Battery Protector

Communication

Exclusive Li-ion battery BMS dual activation.Supports Bluetooth with mobile APP.

OVERVIEW

BP Series 60-100A Battery Protector
Model
BP4860N25
Rated Battery Voltage
12/24/36/48Vdc
Operating Voltage Range
8V-70V
Rated current
60A
Communication
TTL
Optional
Bluetooth
Weight
850g (1.87lb)
Dimensions
149*96.5*60mm
Model
BP4885N25
Rated Battery Voltage
12/24/36/48Vdc
Operating Voltage Range
8V-70V
Rated current
85A
Communication
TTL
Optional
Bluetooth
Weight
950g (2.09lb)
Dimensions
166*96.5*60mm
Model
BP48100N25
Rated Battery Voltage
12/24/36/48Vdc
Operating Voltage Range
8V-70V
Rated current
100A
Communication
TTL
Optional
Bluetooth
Weight
1050g (2.31lb)
Dimensions
183*96.5*60mm
