DB-12

Accessories

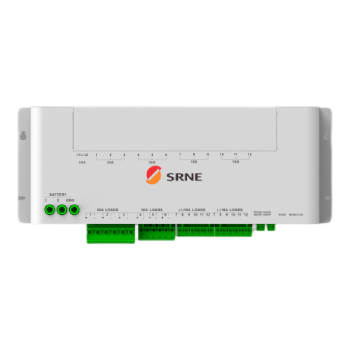

DB-12 RV Distribution Box
DB-12

Support

Supports 12V/24V battery systems,Total current 100A

Support

With battery overvoltage, over-discharge, and load overcurrent protection functions.

Support

Supports various battery types including sealed, gel, open, lithium-ion, and customizable options.

About SRNE

Upholds values of customer priority, proactivity, responsibility, and innovative breakthroughs.

About SRNE

SRNE 15 years in PV industry, committed to independent R&D and production..

About SRNE

Holds over 200 patents in energy storage, with unique industryleading technologies.

OVERVIEW

Model
DB-12
Power consumption
≤40mA
Communication function
Bluetooth、RS485、CAN
System voltage
12V/24V
INPUT1 maximum input current
120A
INPUT2 maximum input current
30A
Input voltage range
9~32V
Product weight
1.1Kg
