RVI Series

Bi-directional Inverter

3KW | 120/230Vac
RVI Series 3KW

Efficient

Low self-consumption with energy saving mode.High efficiency mains charging mode.

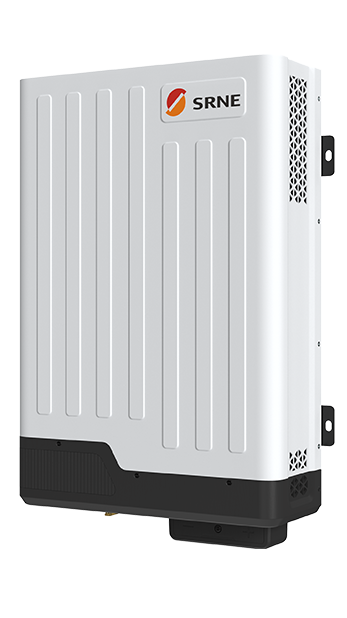

Inverter Charger for RV (5).png

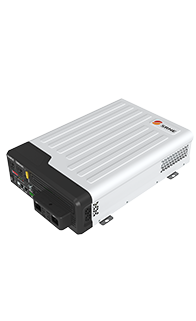

Inverter Charger for RV (6).png

Reliable

SPWM outputs high quality pure sine wave AC power. Operates from -15°C to 55 °C.

User-friendly

Industrial design with a modern aesthetic look.Easy to install and simple to use.

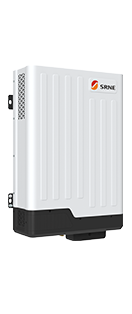

Inverter Charger for RV (1).png

Safety

N-G bonding function for electrical safety.Complete short-circuit protection, over-voltage protection, et.

All-in-one

Up to 100A charging current.Support for charging the starter battery.

Intelligent

With intelligent adjustable speed fan.Support RV-C protocol.

OVERVIEW

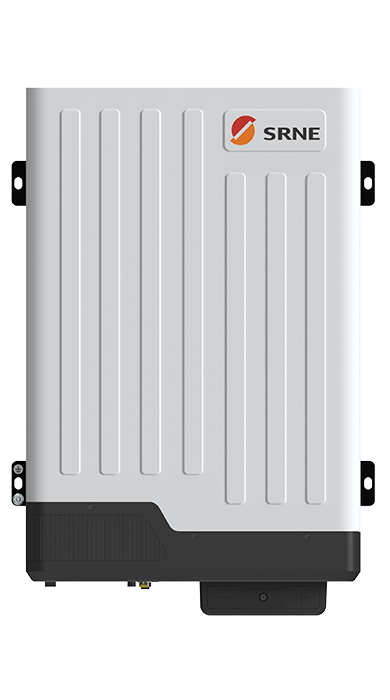

Inverter Charger for RV (2).png
Model
RVI1230S100
Rated Output Power
3000W
Max.Peak Power
6000VA
Rated AC Output Voltage
230Vac
Load Capacity of Motors
2HP
Rated AC Frequency
50Hz/60Hz
Rated Battery Voltage
12Vdc
Max.Mains/Generator Charging Current
100A
Model
RVI1230U100
Rated Output Power
3000W
Max.Peak Power
6,000VA
Rated Output Voltage
120Vac
Load Capacity of Motors
2HP
Rated AC Frequency
50Hz/60Hz
Rated Battery Voltage
12Vdc
Max.Mains/Generator Charging Current
100A
