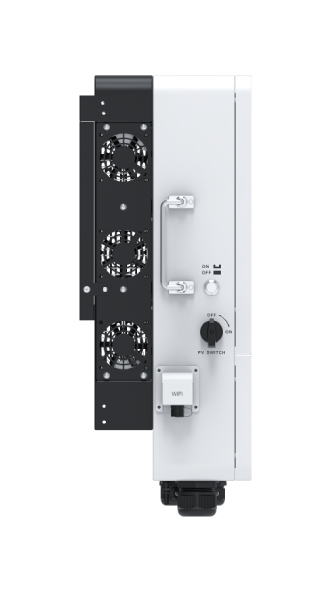

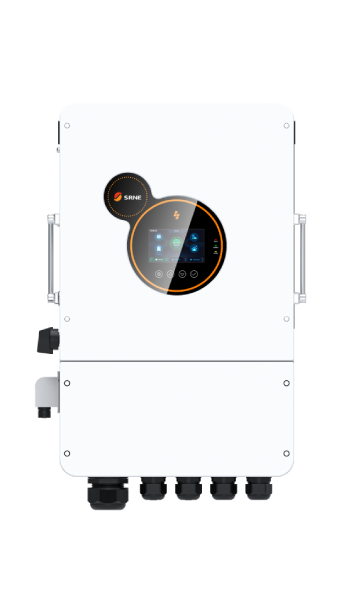

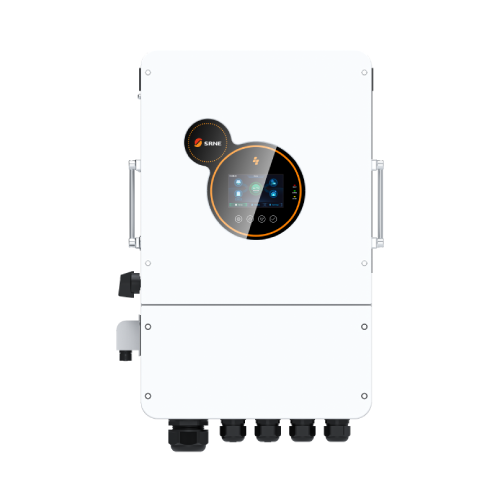

HESP 3-8kW

Three Phase Low Voltage Hybrid Inverter

3-8kW | Three Phase | 1-2 MPPTs
Download PDF Contact
HESP 3-8kW-EU
Home | Residential Hybrid Inverter| Three Phase Low Voltage Hybrid Inverter

Efficient

Compatible with 48V storage batteries
5kw Hybrid Solar Inverter
5kw Hybrid Solar Inverter

Waterproof protection

IP65 for outdoor installation

User-friendly

Up to 2 independent MPPT interfaces with high efficiency
5kw Hybrid Solar Inverter

Safety

Support time-slot function for peak-valley

Intelligent

Support three-phase pure sine wave output.

Communication

Support lithium ion battery BMS communication.

OVERVIEW

5kw Hybrid Solar Inverter
Model
HESP4830SH3
Rated Output Power
3000W
Max. Peak Power
6000VA
Load Motor Capacity
3HP
Switch Time
10ms
Rated Output Power
3000W
Rated Output Current
4.4Aac
No. of MPPT Trackers
1
Model
HESP4860SH3
Rated Output Power
6000W
Max. Peak Power
12000VA
Load Motor Capacity
6HP
Rated Frequency
50/60Hz ± 0.3Hz
Rated Output Power
6000W
Num. of MPPT Trackers
2
Rated Output Current
8.7Aac
Model
HESP4880SHD3
Rated Output Power
8000W
Max. Peak Power
16000VA
Max. Apparent Power
8800VA
Rated Output Current
11.6Aac
Max. PV Input Power
16000W
Num. of MPPT Trackers
2
Rated Output Current
11.6Aac
