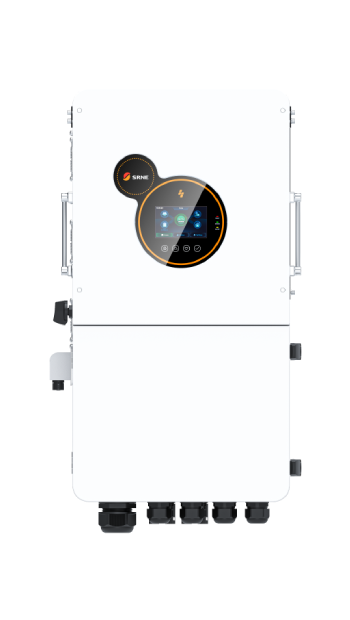

HESP 4-6.5kW

Single Phase Low Voltage Hybrid Inverter

Split-phase hybrid Hybrid Solar Storage Inverter
Download PDF Contact
HESP 4-6.5kW-HJP/HUS
Home | Residential Hybrid Inverter| Single Phase Low Voltage Hybrid Inverter

Efficient

2 efficient, independent MPPT ports
hybrid inverter
hybrid solar inverter

Waterproof protection

IP65 waterproof protection degree

User-friendly

Support time-slot function for peak-valley
hybrid inverter

Safety

Separate generator port

All-in-one

Equipped with independent circuit breaker protection for load, mains, generator, and battery

Intelligent

Supports 150% single-phase unbalanced load

OVERVIEW

Model
HESP4840U120-HJP
Rated Output Power
4000W
Single-phase Unbalanced Load
4000W
Max. Peak Power
2× rated power for 10 seconds
Rated Frequency
50/60Hz
Max. Apparent Power
4400VA
Rated Battery Voltage
48Vdc
Max. Grid Charging Current
120A
Model
HESP4850U120-HJP
Rated Output Power
5000W
Single-phase Unbalanced Load
4500W
Rated Output Voltage
100/200Vac (Split-phase)； 100/173V (Three-phase)
Rated Frequency
50/60Hz
Rated Battery Voltage
48Vdc
Battery Voltage Range
40～60Vdc
Max. Grid Charging Current
120A
Model
HESP4860U140-HJP
Rated Output Power
6000W
Single-phase Unbalanced Load
4500W
Rated Output Voltage
100/200Vac (Split-phase)； 100/173V (Three-phase)
Rated Battery Voltage
48Vdc
Battery Voltage Range
40～60Vdc
Max. Grid Charging Current
140A
Rated Frequency
50/60Hz
Model
HESP4865U140-HJP
Rated Output Power
6500W
Single-phase Unbalanced Load
4500W
Rated Frequency
50/60Hz
Rated Battery Voltage
48Vdc
Battery Voltage Range
40～60Vdc
Max. Grid Charging Current
140A
Max. Hybrid Charging Current
140A
