ASP 14-16kW

Single/Split Phase Low Voltage

US | Split Phase | 2MPPTs
ASP 14-16kW-US

Efficient

2 High-Efficiency MPPT Input, efficiency up to 99%

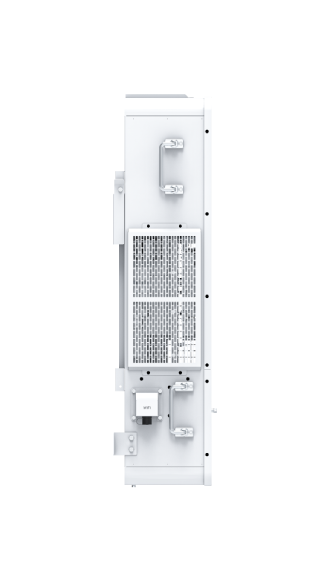

HEBP Hybrid Solar Storage Inverter (5).png
HEBP Hybrid Solar Storage Inverter (6).png

Reliable

Max. 100A Bypass Current Input (Grid)

Convenient installation

WiFi data loggers, RSD, AFCI, and GFCI function
HEBP Hybrid Solar Storage Inverter (1).png

Safety

Time-Sharing Charging/Discharging Settings & Energy Saving Mode

All in One

2 power supply modes: PV-only, hybrid charging

Intelligent

Max. support for 6 units parallel, Scalable to 96kW for commercial applicationsA

OVERVIEW

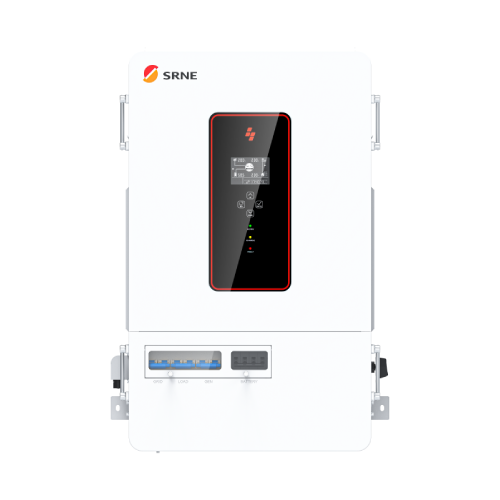

HEBP Hybrid Solar Storage Inverter (2).png
Model
ASP48140U300-H
Rated Output Power
14000W
Max. Apparent Power
14000VA
Rated Output Voltage
120Vac/240Vac (L1+L2+N+PE)
Rated AC Frequency
50/60Hz
Rated Output Current
58.3Aac
Load Motor Capacity
9HP
Switch Time
10ms(typical)
Model
ASP48150U300-H
Rated Output Power
15000W
Max. Apparent Power
15000VA
Rated Output Voltage
120Vac/240Vac (L1+L2+N+PE)
Rated Output Current
62.5Aac
Load Motor Capacity
9HP
Rated Frequency
50/60Hz
Switch Time
10ms(typical)
Model
ASP48160U300-H
Rated Output Power
16000W
Max. Apparent Power
16000VA
Rated Output Voltage
120Vac/240Vac (L1+L2+N+PE)
Rated Output Current
66.7Aac
Load Motor Capacity
9HP
Rated Frequency
50/60Hz
Switch Time
10ms(typical)
