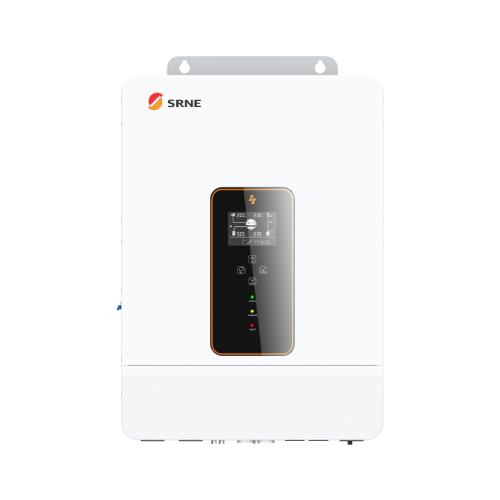

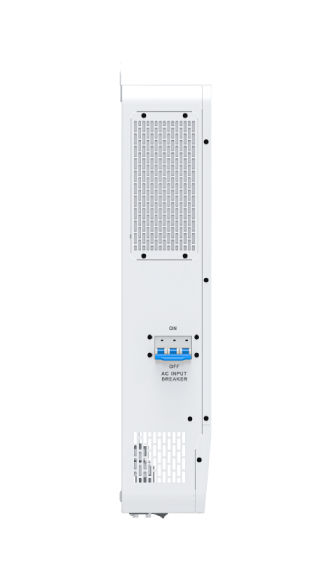

ASP 8-12kW

Three Phase Low Voltage

EU | Three Phase | 2MPPTs
Download PDF Contact
ASP 8-12kW-EU
Home | Residential Off-Grid Inverter| Three Phase Low Voltage

Efficient

Supports parallel operation with power up to 72kW
HEBP Hybrid Solar Storage Inverter (5).png
HEBP Hybrid Solar Storage Inverter (6).png

Reliable

With Li-ion battery dual activation function

Convenient installation

Support three-phase pure sine wave output
HEBP Hybrid Solar Storage Inverter (1).png

Safety

Supports 2 high efficient MPPT inputs

All in One

Supports 4 charging modes

Intelligent

LCD large-screen dynamic flowchart design

OVERVIEW

HEBP Hybrid Solar Storage Inverter (2).png
Model
ASP4880SH3
Rated Output Power
8000W
Max. Output Power
16000VA
Phase Rated Output Power
2600W
Rated Output Voltage
230/400Vac
Load Motor Capacity
5HP
Rated Frequency
50/60Hz ±0.3
Switch Time
10ms（typical）
Model
ASP48100SH3
Rated Output Power
10000W
Max. Output Power
20000VA
Phase Rated Output Power
3300W
Rated Output Voltage
230/400Vac
Load Motor Capacity
6HP
Rated Frequency
50/60Hz
Switch Time
10ms（typical）
Model
ASP48120SH3
Rated Output Power
12000W
Max. Output Power
24000VA
Phase Rated Output Power
4000W
Rated Output Voltage
230/400Vac
Load Motor Capacity
6HP
Rated Frequency
50/60Hz
Switch Time
10ms（typical）
