ASP 4-10kW

Off Grid Solar Inverter

Split/Single-Phase Off-grid Solar Storage Inverter
ASP 4-10kW

Efficient

Two efficient independent MPPT ports are available
hybrid inverter
hybrid solar inverter

Reliable

Support 6 parallel machines up to 39kW

User-friendly

Support time-sharing charge and discharge function
hybrid inverter

Safety

External Load Anti-Backflow Protection

All-in-one

Two output modes, mains bypass output and inverter output, provide uninterrupted power supply

Intelligent

Used with 48V energy storage battery

OVERVIEW

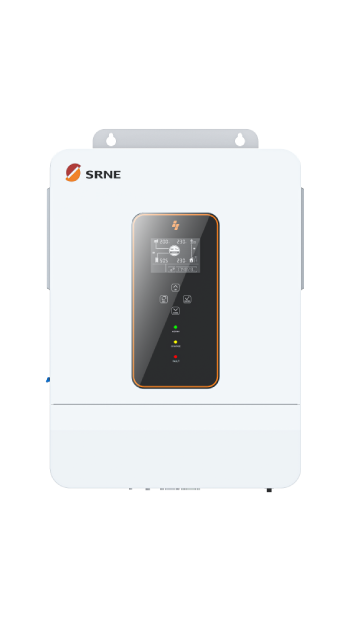

Off Grid Power Inverter
Model
ASP4840U100-H
Rated Output Power
4,000W
Max. Output Power
8,000VA
Rated Frequency
50/60Hz
Switch Time
10ms
Rated Battery Voltage
48V
Battery Volatge Range
40~60Vdc
Max. PV Array Power
3,000W+3,000W
Model
ASP4850U120-H
Rated Output Power
5,000W
Max. Output Power
10000VA
Rated Frequency
50/60Hz
Switch Time
10ms
Rated Battery Voltage
48V
Battery Volatge Range
40~60Vdc
Max. PV Array Power
3,800W+3,800W
Model
ASP4860U140-H
Rated Output Power
6000W
Max. Output Power
12000VA
Rated Frequency
50/60Hz
Switch Time
10ms
Rated Battery Voltage
48V
Battery Volatge Range
40~60Vdc
Max. PV Array Power
4,500W+4,500W
Model
ASP4865U140-H
Rated Output Power
6500W
Max. Output Power
13000VA
Rated Frequency
50/60Hz
Switch Time
10ms
Rated Battery Voltage
48V
Battery Volatge Range
40~60Vdc
Max. PV Array Power
5,000W+5,000W
Model
ASP4880U180-H
Rated Output Power
8,000W
Max. Output Power
16,000VA
Rated Output Voltage
120/240 Vac (single-phase/split-phase)
Rated Frequency
50/60Hz
Rated Battery Voltage
48V
Battery Volatge Range
40~60Vdc
Max. PV Array Power
5,500W+5,500W
Model
ASP48100U200-H
Rated Output Power
10,000W
Max. Output Power
20,000VA
Rated Output Voltage
120/240 Vac (single-phase/split-phase)
Rated Frequency
50/60Hz
Rated Battery Voltage
48V
Battery Volatge Range
40~60Vdc
Max. PV Array Powe
5,500W+5,500W
