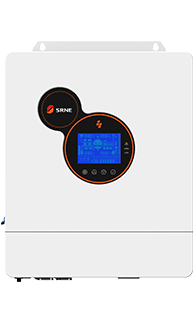

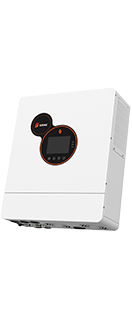

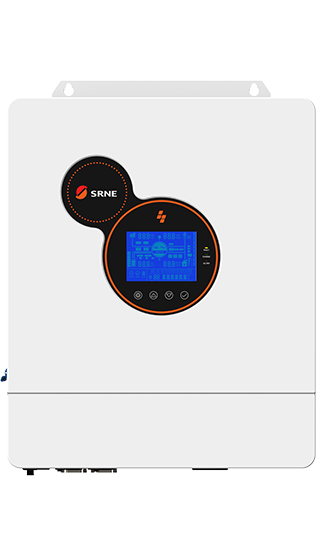

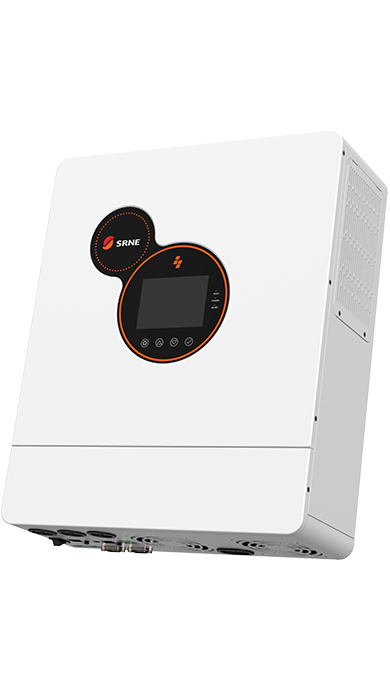

HYP Series

Off Grid Solar Inverter

5KW | Single/Split/Three Phase | 1 MPPT
HYP Series 5KW

Efficient

Advanced MPPT technology with up to 99.9% efficiency.Up to 22A PV input current for high power PV module.

User-friendly

Industrial design with a modern aesthetic look.Easy to install and simple to use.

All-in-one

Solar charge controller up to 100A charging current.

Reliable

Outputs high quality pure sine wave AC power.Up to 6 units in parallel connection meet the needs.

Safety

360 degrees of security from hardware to software.IEC safety approvals.

Intelligent

Exclusive Li-ion battery BMS dual activation.Time-slot function to save cost with peak-valley tarif.

OVERVIEW

Model
HYP4850U100-H
Rated Output Power
5,000W
Max.Peak Power
10,000VA
Rated Output Voltage
120Vac
Rated AC Frequency
50/60Hz
Parallel Capacity
1-6 units ( single/split/three phase )
Num. of MPP Trackers
1
Max.Voltage of Open Circuit
500Vdc
Model
HYP4850S100-H
Rated Output Power
5,000W
Max.Peak Power
10,000VA
Rated Output Voltage
230Vac
Rated AC Frequency
50/60Hz
Parallel Capacity
1-6 units(single/three phase)
Num. of MPP Trackers
1
Max.Voltage of Open Circuit
500Vdc
